Product Overview

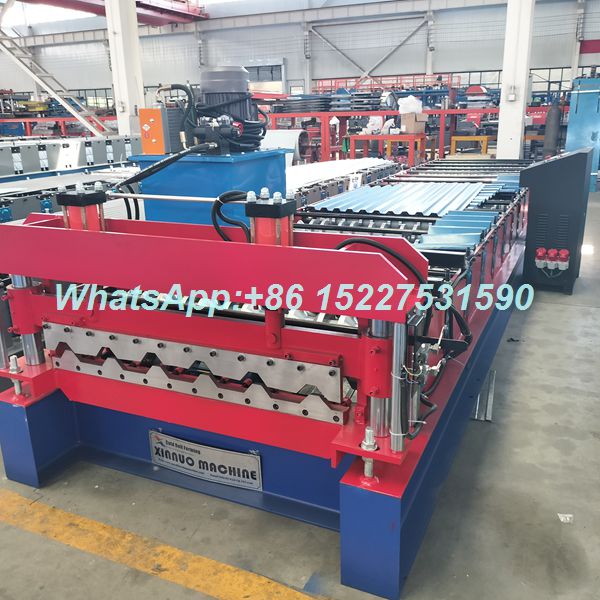

The 980 Trapezoidal Roofing Sheet Roll Forming Machine is a highly efficient cold bending equipment specifically engineered for producing 980mm wide trapezoidal metal roofing panels. As one of the most popular models in the construction industry, this machine transforms galvanized or color-coated steel coils into durable, high-strength trapezoidal roof sheets. Featuring an advanced PLC computer control system and hydraulic automatic cutting, it ensures precise dimensions and superior surface quality, making it an ideal investment for steel structure factories and roofing material manufacturers.
Key Features & Technical Advantages

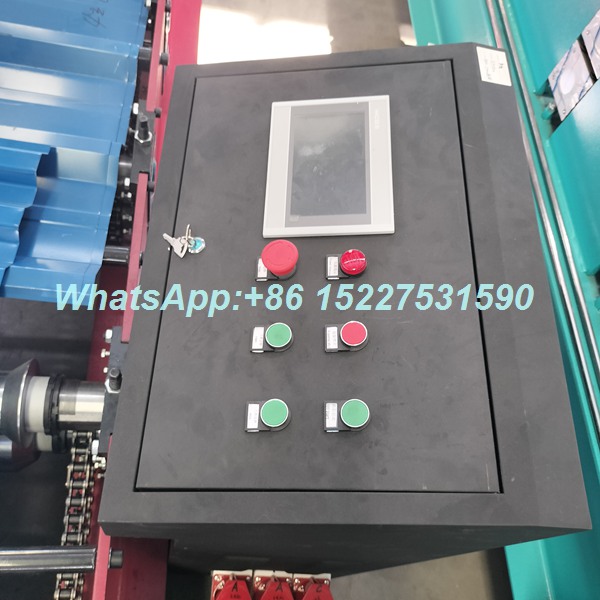

- Intelligent PLC Control System: Equipped with a user-friendly PLC and touch screen interface, the machine allows for precise parameter settings. Operators can easily set the sheet length and quantity, enabling fully automated production with minimal manual intervention.

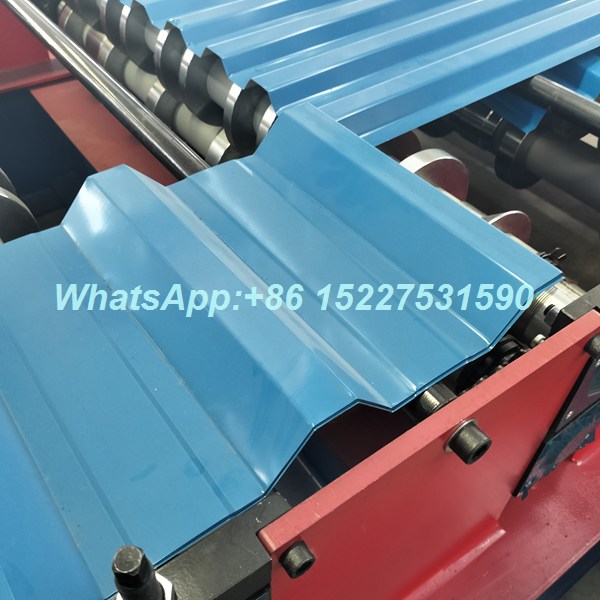

- High-Precision Forming Rollers: The forming rollers are crafted from high-quality GCr15 bearing steel, which undergoes forging, annealing, and hard chrome plating. This ensures extreme durability, wear resistance, and guarantees that the finished 980 trapezoidal panels have excellent flatness and a smooth surface without scratches.

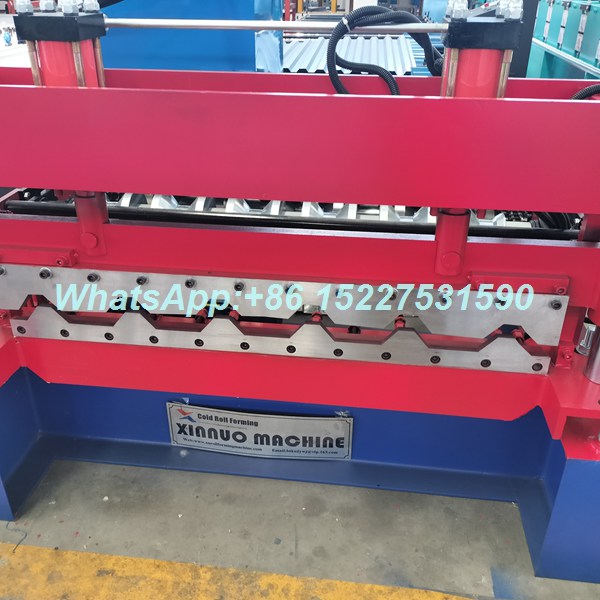

- Hydraulic Automatic Cutting & Punching: The machine integrates a powerful hydraulic station with a flying saw cutting system. It provides clean, burr-free cuts at pre-set lengths without deforming the trapezoidal profile, significantly boosting production efficiency.
- Robust Structural Design: Built with a heavy-duty frame (typically using 300-350 H-beams or I-beams), the machine ensures stable, vibration-free operation even at high speeds. The solid main shafts (usually 70mm-80mm in diameter) provide the necessary torque for processing various steel thicknesses.
- Versatile Material Compatibility: Designed to process galvanized steel, color steel, and aluminum coils, this machine is perfect for producing standard 980 trapezoidal roofing sheets widely used in industrial and civil construction.
Technical Specifications (980 Model)
- Applicable Material: Galvanized Steel Coil / Color Steel Coil / Aluminum Coil
- Material Thickness: 0.3mm - 0.8mm (Customizable)
- Effective Width: 980mm (Trapezoidal Profile)
- Forming Speed: 10 - 15 meters/minute (Depending on configuration)
- Main Motor Power: 5.5 KW - 7.5 KW
- Hydraulic Station Power: 4 KW - 5.5 KW
- Roller Material: GCr15 Bearing Steel, Quenched and Hard Chrome Plated
- Shaft Diameter: 70mm Solid Shaft (45# Steel)
- Control System: PLC + Touch Screen / Industrial Computer
- Cutting Method: Hydraulic Flying Saw Cut (High precision, no deformation)
Applications

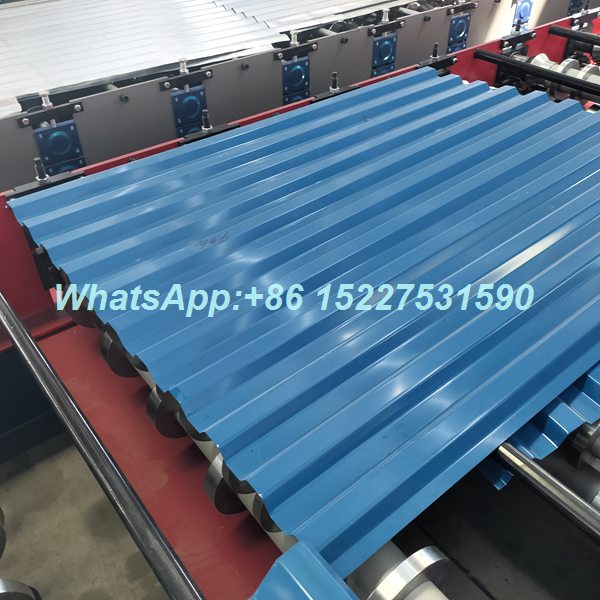

The 980 trapezoidal roofing sheets produced by this machine are extensively used in modern construction projects due to their excellent water drainage and structural strength. Typical applications include:
- Roofing and wall cladding for steel structure workshops, warehouses, and factories.
- Roof panels for agricultural greenhouses, poultry farms, and commercial markets.
- Temporary housing, prefabricated buildings, and exhibition halls.
Why Choose Our 980 Trapezoidal Roll Forming Machine?
With years of expertise in cold roll forming technology, our factory is dedicated to providing high-quality, export-standard machinery. Our 980 trapezoidal roofing machine is designed for high rigidity, precise tolerance control, and energy efficiency. By choosing our equipment, you are investing in a reliable production line that reduces labor costs, minimizes material waste, and ensures consistent, high-quality output to meet global construction demands.
