Overview: The Backbone of Modern Roofing Production
In the competitive landscape of the construction materials industry, efficiency and precision are paramount. The Xinnuo 980 Trapezoidal Roof Tile Roll Forming Machine is engineered to meet the rigorous demands of modern roofing and wall cladding manufacturing. Designed to produce the industry-standard 980 trapezoidal profile—renowned for its excellent water drainage capabilities and structural strength—this machine represents the perfect fusion of heavy-duty durability and advanced automation. Whether you are producing roofing sheets for industrial warehouses, agricultural buildings, or residential complexes, the 980 Roll Former ensures high-quality output with minimal operational costs.
Superior Engineering & Structural Integrity

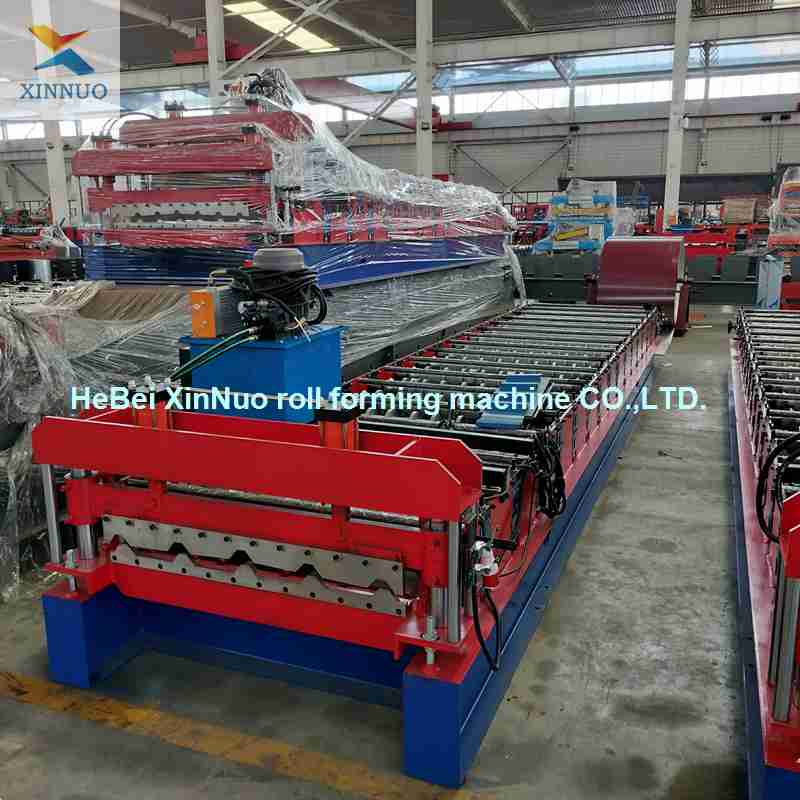

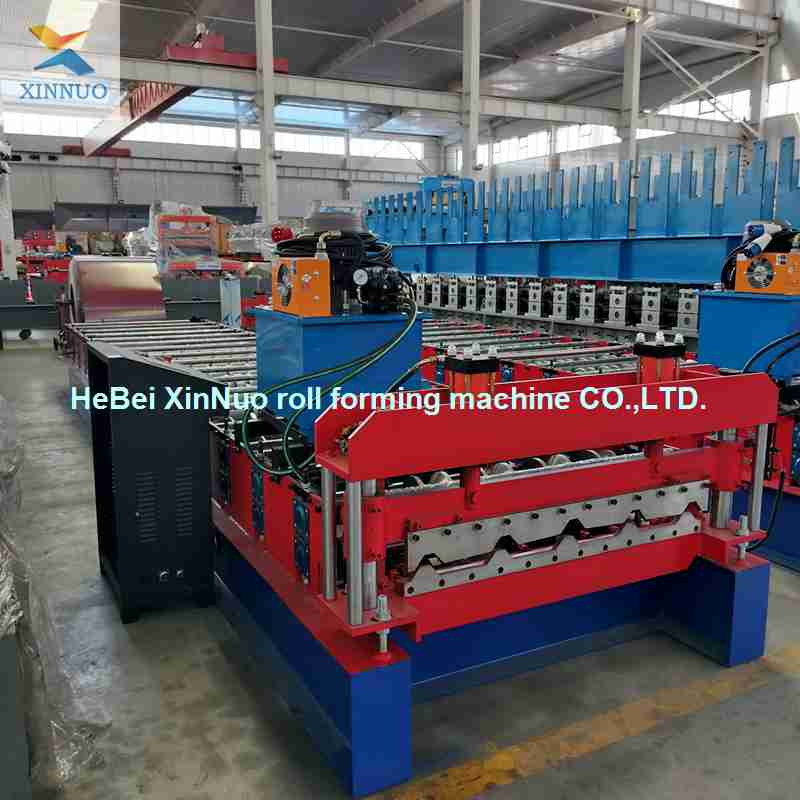

As seen in the product imagery, the 980 machine is built on a robust framework designed to withstand continuous high-load operation.
- Heavy-Duty Frame: The main body is constructed from H350 steel plates, welded and machined to ensure a perfectly level base. This eliminates vibration during high-speed forming, guaranteeing that every panel produced is straight and true.

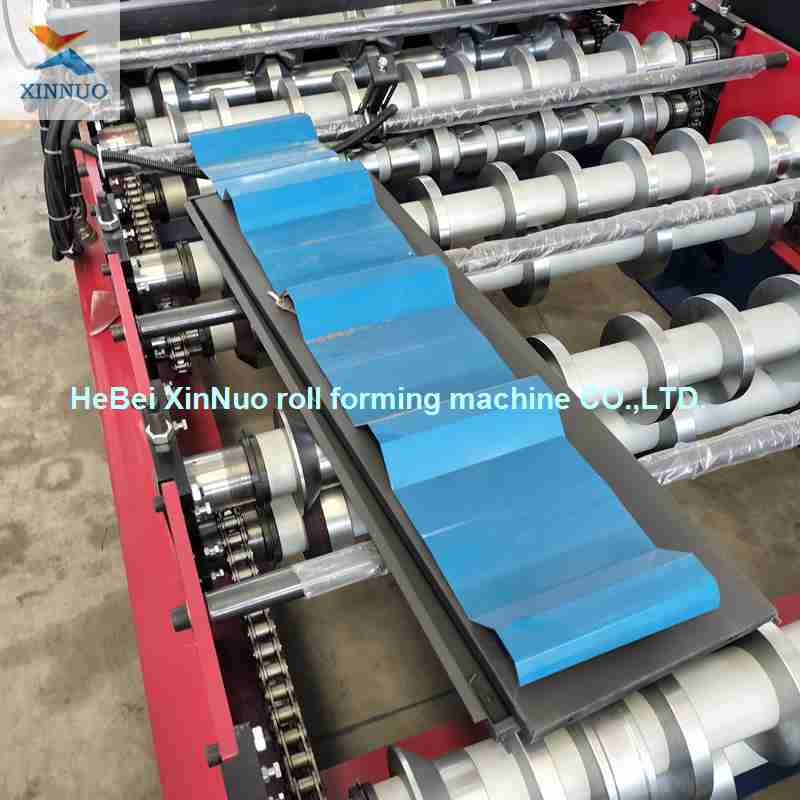

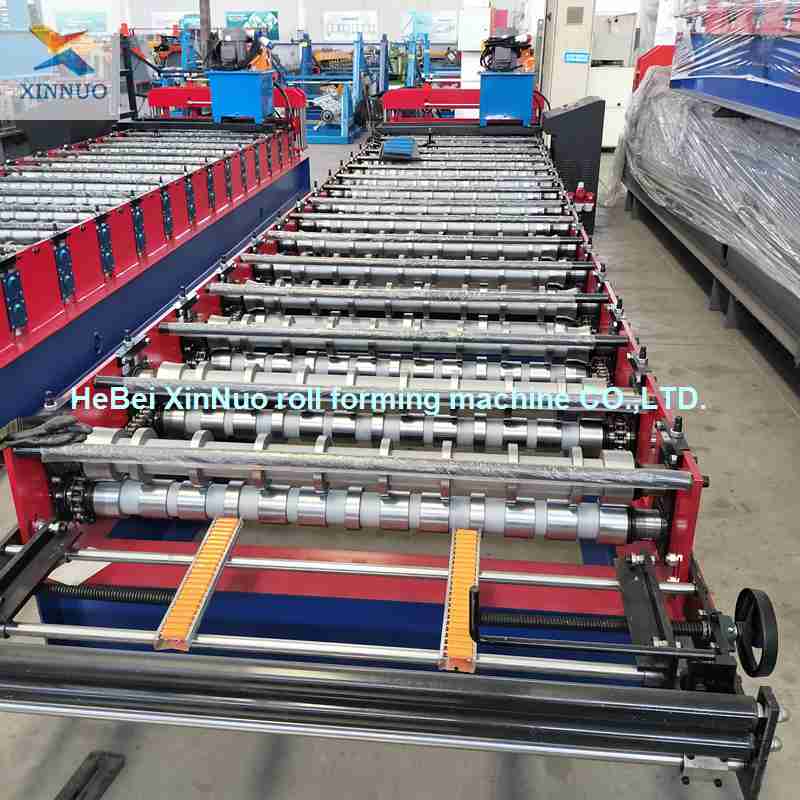

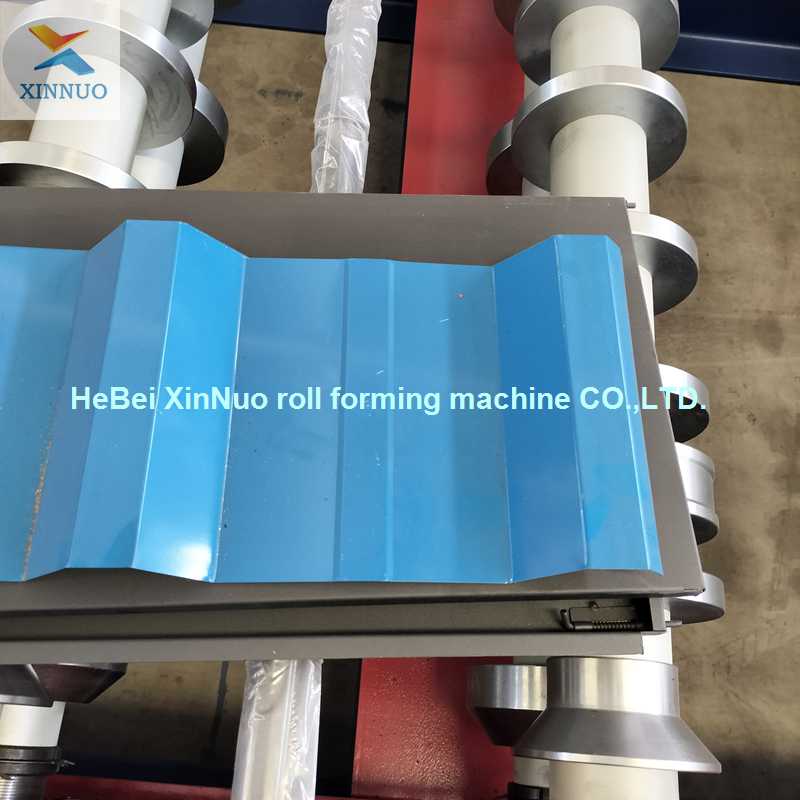

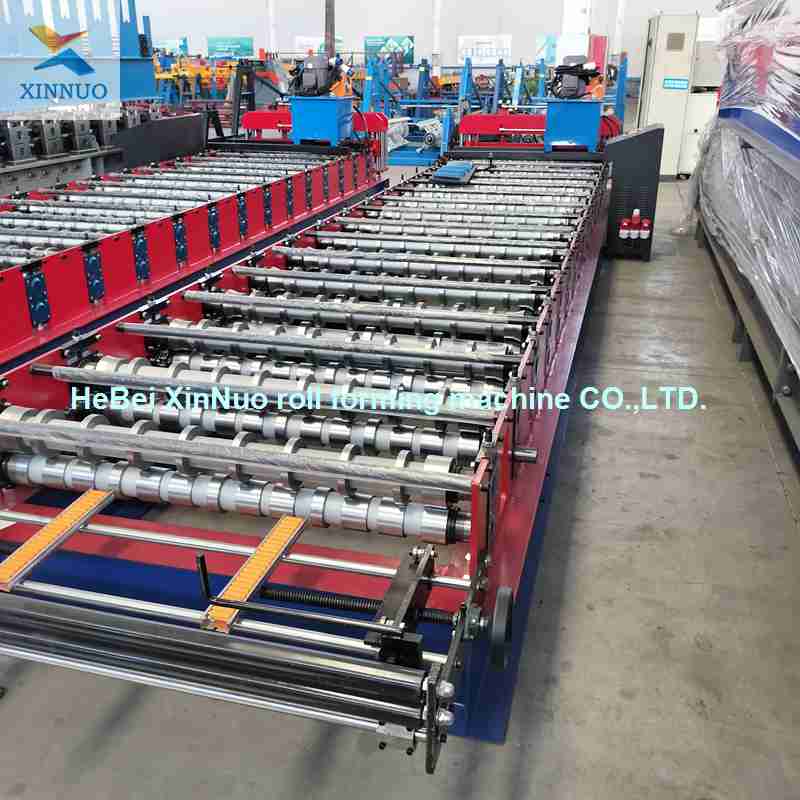

- Precision Roller System: We utilize high-grade 45# steel rollers with a thick chrome plating layer. This not only prevents rust but also ensures the metal sheet slides smoothly without surface scratches—a critical factor for colored steel sheets (PPGI). The rollers are CNC machined to ensure tight tolerances, resulting in precise 980 profiles with consistent rib height and width.

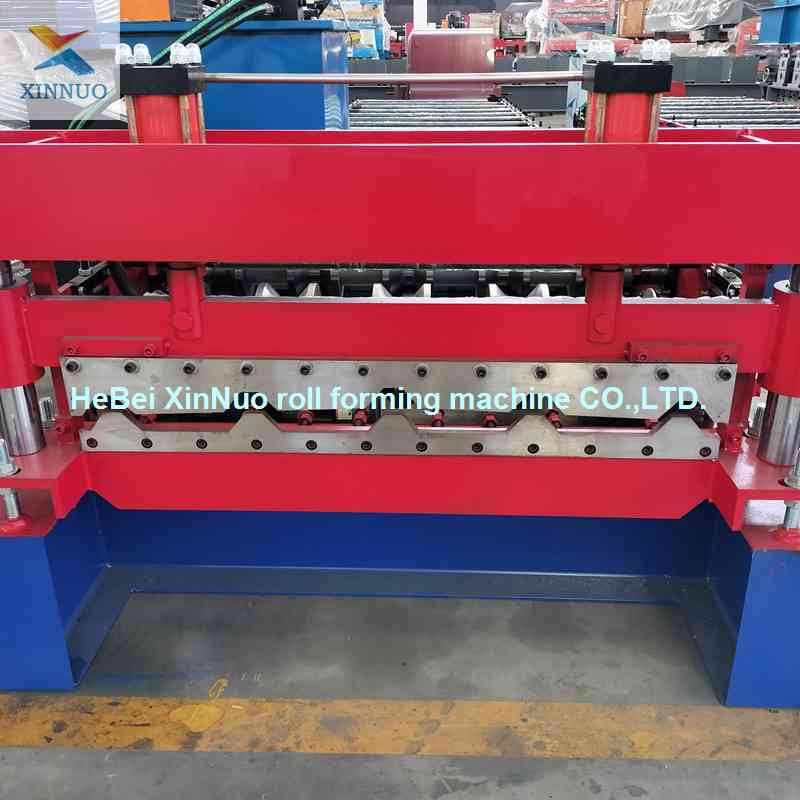

- Robust Cutting Mechanism: The hydraulic cutting system features a distinct "post-cutting" design. The blades are made from Cr12 Mov mold steel, heat-treated to HRC58-62. This ensures a clean, burr-free cut that maintains the shape of the trapezoidal profile even after slicing, reducing waste and improving installation fitment.
Intelligent Automation & Ease of Use
The era of manual adjustment is over. The Xinnuo 980 machine is equipped with a state-of-the-art PLC control system.
- Automated Length & Counting: Operators can input the desired panel length and quantity directly into the touch screen. The encoder system measures length with an accuracy of ±1mm, automatically stopping the machine once the target count is reached.

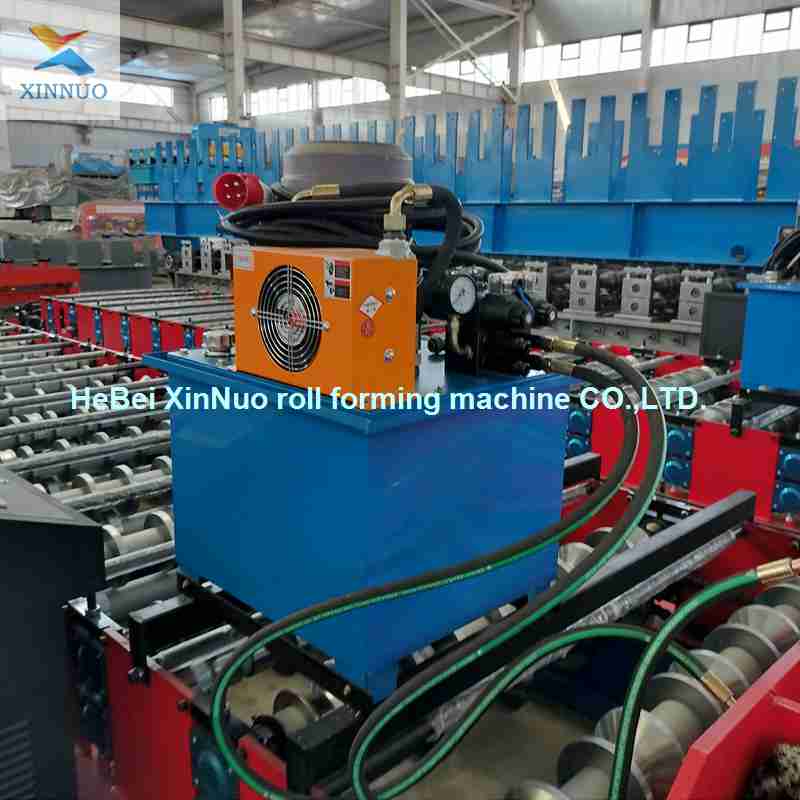

- Hydraulic Control: The hydraulic station is the heart of the cutting and punching systems. We use high-quality solenoid valves to ensure responsive and leak-free operation, capable of handling thousands of cuts per day without failure.
- Safety Features: The machine includes emergency stop buttons and safety guards around the chain drive and cutting areas, ensuring operator safety in compliance with international standards.
Market Application & Versatility
The 980 trapezoidal profile is one of the most versatile shapes in the global market. It is widely used for:
- Industrial Roofing: Its deep ribs provide excellent load-bearing capacity for snow and wind.
- Wall Cladding: The clean lines offer a modern aesthetic for factories and commercial buildings.
- Fencing & Partitions: Due to its rigidity, it is also suitable for non-roofing applications.
By investing in the Xinnuo 980 Roll Forming Machine, manufacturers can diversify their product portfolio without needing multiple machines. The quick-change roller system (optional) allows for switching between different thicknesses or minor profile variations efficiently.
Why Partner with Xinnuo?
Choosing a machine is choosing a partner. Xinnuo Machine brings over a decade of expertise in the roll forming sector.
- Global Compliance: Our machines are CE certified and built to various voltage and frequency standards worldwide.
- After-Sales Excellence: We provide comprehensive video tutorials, English manuals, and online technical support. For complex issues, our engineers are available for overseas deployment.
- Customization: Need a specific rib height or a different painting color for the machine body? We tailor the equipment to your factory's branding and technical requirements.
Conclusion
Maximize your production potential with the Xinnuo 980 Trapezoidal Roof Tile Roll Forming Machine. It is not just a piece of equipment; it is a reliable asset designed to drive profitability in your construction material business. Contact us today for a detailed quotation and layout design tailored to your workshop.
