Product Overview

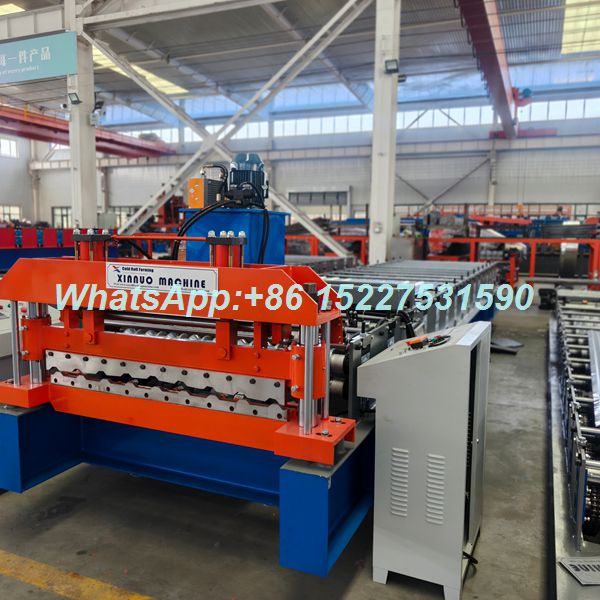

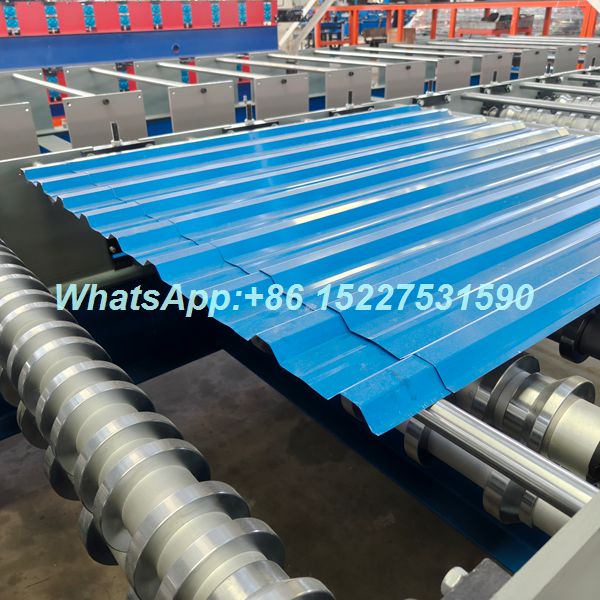

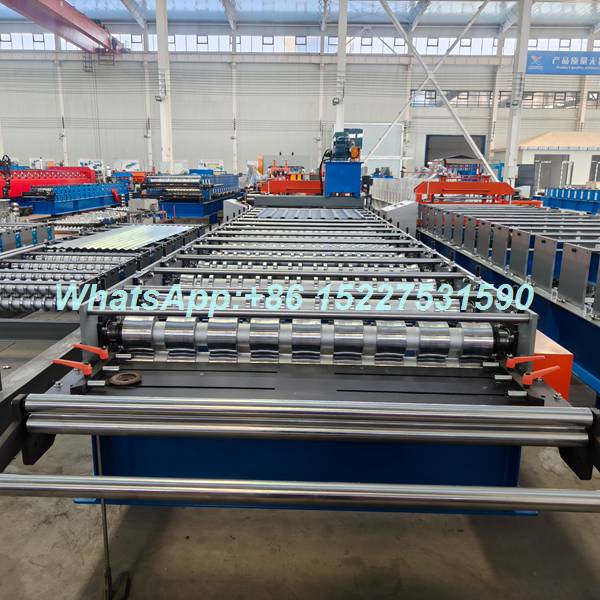

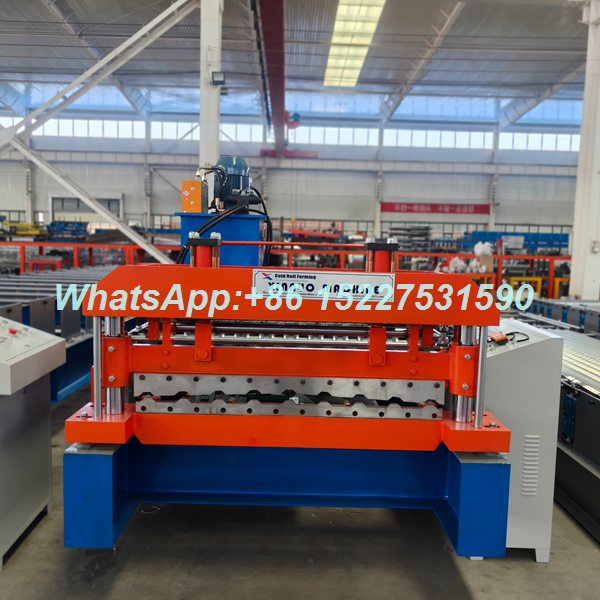

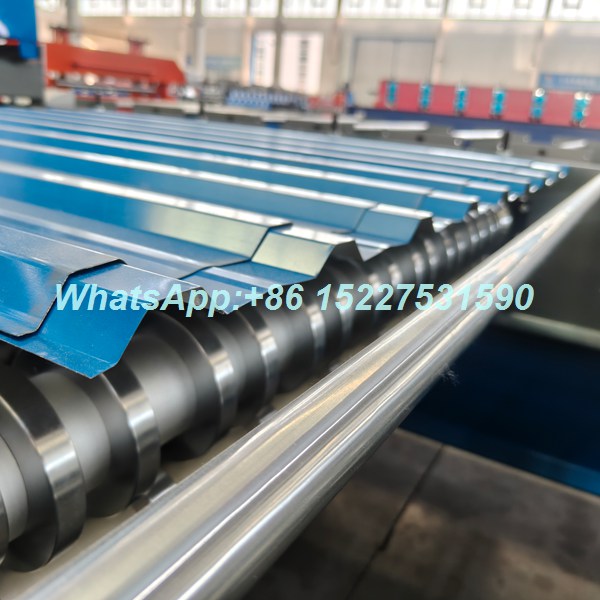

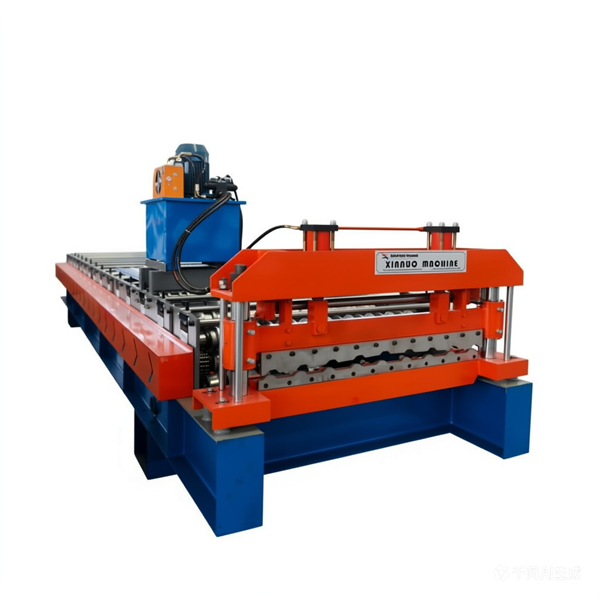

The 16-Stand 1070mm Trapezoidal Roof Sheet Roll Forming Machine is a high-performance, heavy-duty piece of equipment designed for the continuous production of wide trapezoidal metal roofing and wall panels. With an effective width of 1070mm and a robust 16-row roller forming system, this machine ensures exceptional precision and sheet flatness, making it ideal for large-scale industrial plants, warehouses, and commercial construction projects. It integrates automatic decoiling, roll forming, hydraulic cutting, and product stacking into a fully automated production line.
Technical Specifications
- Raw Material: Galvanized Steel Coil / Color Steel Coil
- Material Thickness: 0.3mm – 0.8mm
- Effective Width: 1070mm

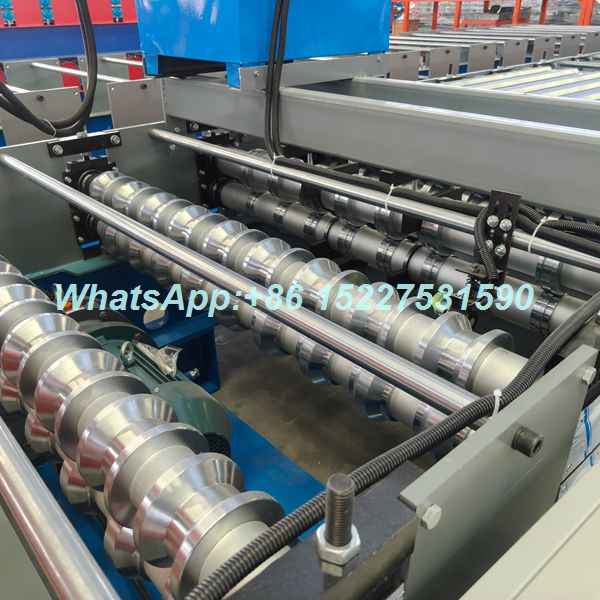

- Roller Stations: 16 Rows

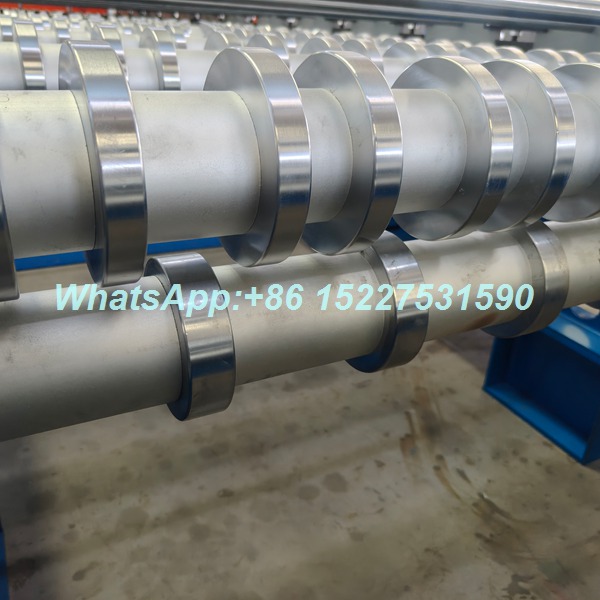

- Roller Material: GCr15 Bearing Steel / 45# Steel with Chrome Plating
- Driving Type: Chain Drive / Gear Drive
- Main Motor Power: 11 kW (or customized)

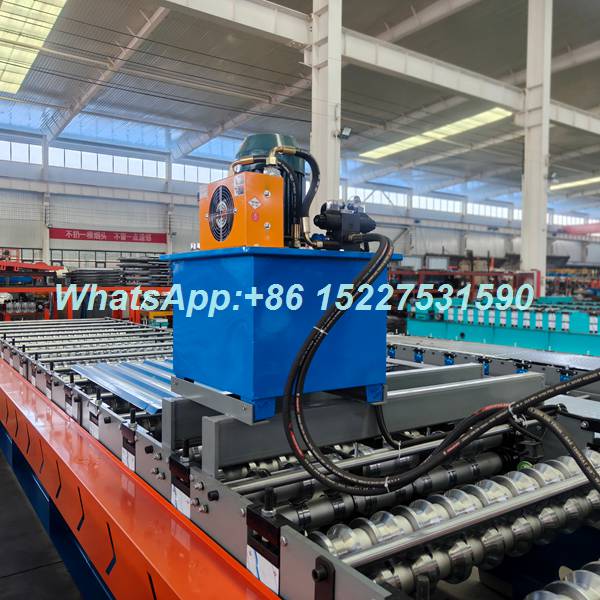

- Hydraulic System Power: 5.5 kW
- Cutting System: Hydraulic Cutting, Automatic Length Control
- Control System: PLC with Touch Screen
- Machine Weight: Approx. 5500kg (subject to change based on configuration)
- Overall Dimension: Approx. 8500mm x 1400mm x 1400mm
Applications

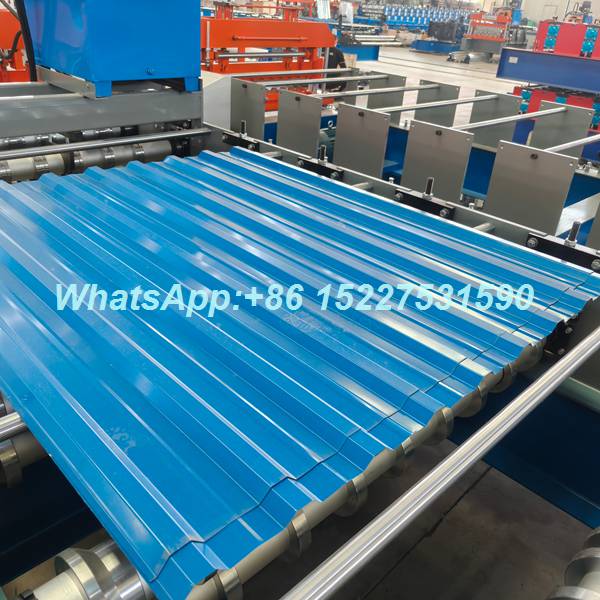

This machine produces trapezoidal sheets widely used for:
- Industrial factory roofs and walls
- Warehouse roofing systems
- Commercial building facades
- Cold storage rooms
- Steel structure construction projects
Why Choose This Machine?
- High Efficiency: Fully automated operation significantly reduces labor costs and increases production speed.
- Durability: Built with premium materials to ensure long-term stability and low maintenance.
- Precision: The 16-row design guarantees precise profiles and consistent quality for every sheet.
- Versatility: Can be customized with different roller molds to produce various sheet profiles.
