980 Trapezoidal Roof Panel Roll Forming Machine | Color Steel Glazed Tile Press Machine

980 Trapezoidal Roof Panel Roll Forming Machine | Color Steel Glazed Tile Press Machine

Product Attributes :

Boost your production efficiency with our premium 980 Trapezoidal Roof Tile Roll Forming Machine. Designed as a high-speed metal roofing sheet making equipment, this robust unit effortlessly produces durable trapezoidal corrugated roof sheets and wall cladding. Featuring a sturdy frame, precision bearing steel rollers, and an intelligent PLC control system, our automatic metal roof panel making machine ensures flawless dimensional accuracy and scratch-free finishes. Ideal for manufacturing galvanized and color-coated steel panels, this versatile 980 trapezoidal press tile machine operates continuously at impressive speeds. Upgrade your factory with this reliable trapezoidal corrugated roof sheet roll forming machineto maximize output and deliver superior quality roofing solutions globally.

Product Description

Product Overview: High-Precision 980 Trapezoidal Roll Forming Machine

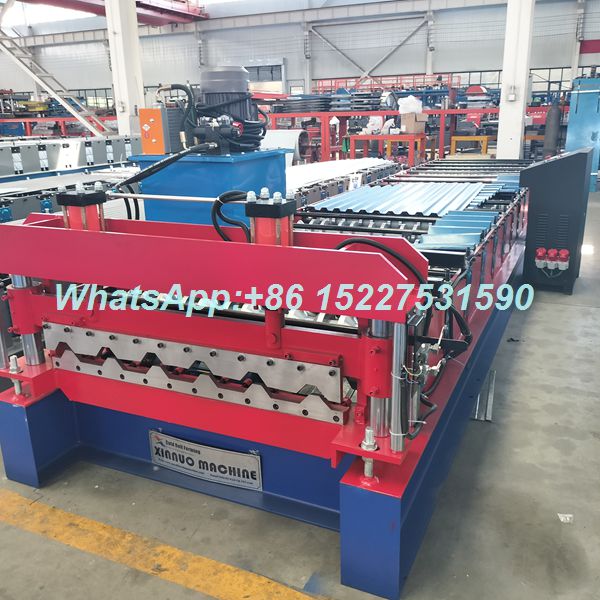

Our 980 Trapezoidal Roof Panel Roll Forming Machine is a high-performance cold roll forming equipment designed specifically for producing durable and aesthetically pleasing metal roofing sheets. Widely used in industrial plants, warehouses, and civil construction, this machine transforms color-coated steel coils into standard 980-type trapezoidal panels with high efficiency and precision.

Featuring a robust structure and advanced PLC control system, the 980 roll former ensures stable operation, easy adjustment, and consistent product quality, making it an ideal choice for steel structure manufacturers looking to optimize their production line.

Key Features & Advantages

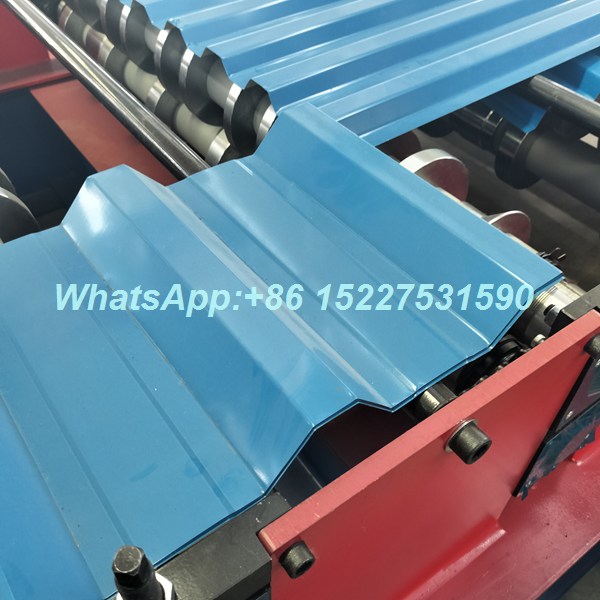

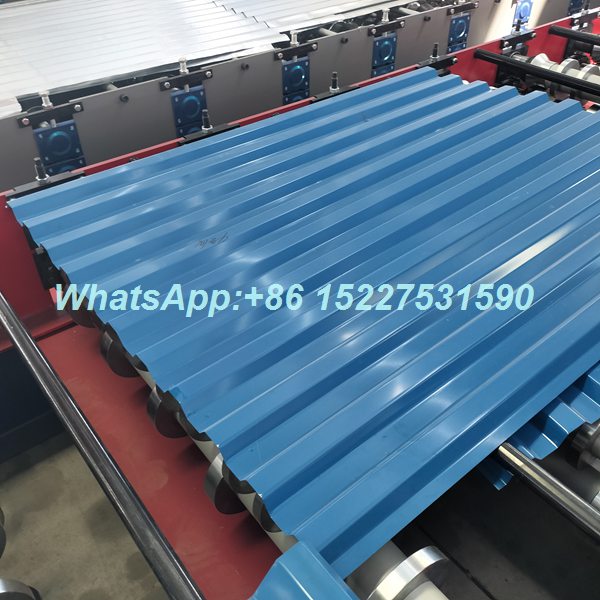

Versatile Production: Capable of producing standard 980 trapezoidal roof panels which are popular for their excellent water drainage and load-bearing capacity.

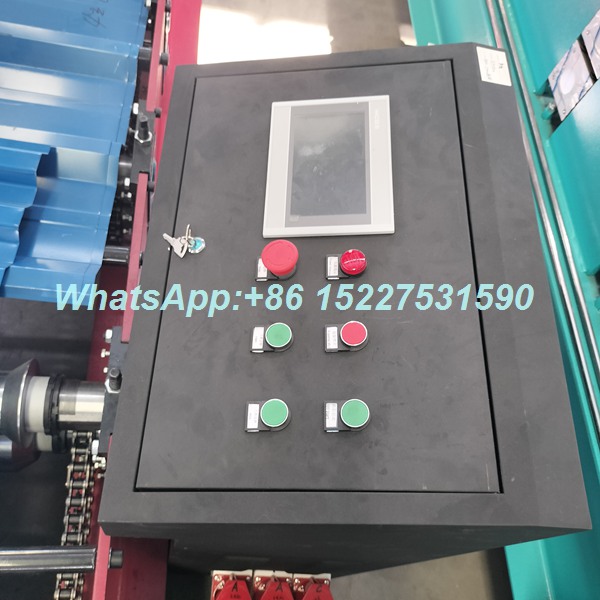

High Automation: Equipped with a user-friendly PLC computer control system and touch screen interface, allowing for automatic length setting, cutting, and counting.
Durable Molds: The rollers are made of high-grade #45 Steel or Cr12Mov with chrome plating, ensuring a long service life and smooth surface finish on the panels.

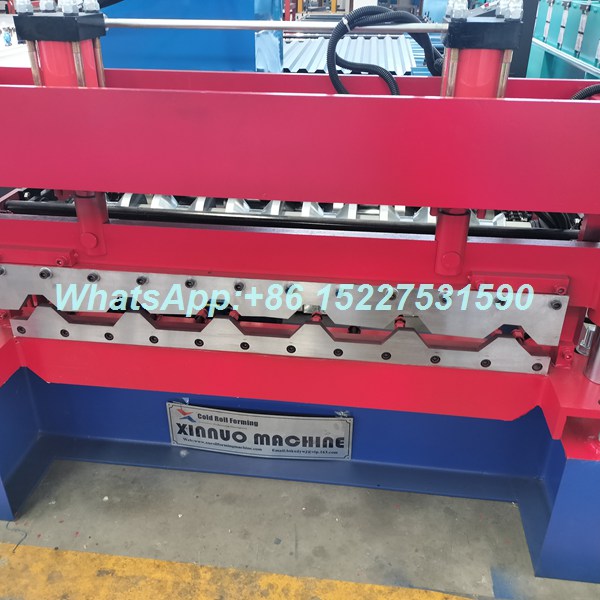

Precise Cutting: Features a hydraulic cutting system with post-cutting (or pre-cutting optional) technology to minimize material waste and ensure clean edges without deformation.

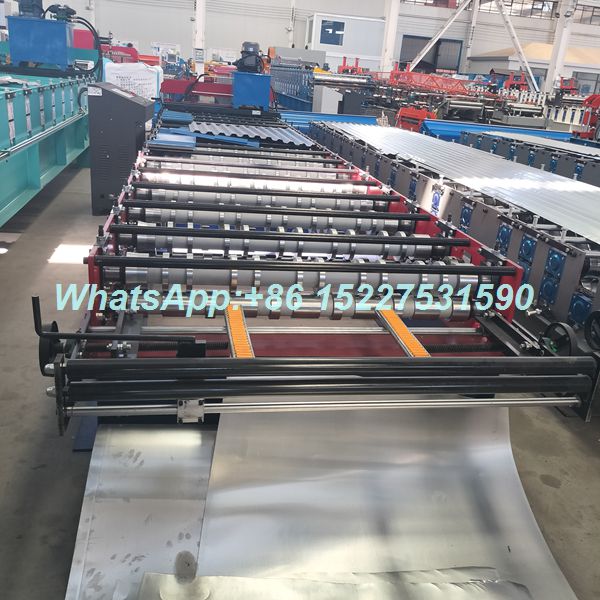

Stable Transmission: Driven by a heavy-duty chain drive system and powerful motor, guaranteeing continuous and stable production speed (usually 8-12m/min).

Technical Specifications (Reference)

Parameter	Specification
Effective Width	980mm (Customizable)
Material Thickness	0.3mm - 0.8mm
Roller Material	#45 Steel / Cr12 / GCr15 with Chrome Plating
Main Motor Power	4KW - 5.5KW (Depending on configuration)
Hydraulic Pressure	10-12 Mpa
Control System	PLC + Touch Screen (Delta/Siemens/Mitsubishi optional)
Voltage	380V/50Hz/3Phase (Customizable to local standard)
Machine Weight	Approx. 3-4 Tons
Overall Dimension	Approx. 6m x 1.2m x 1.4m (Excluding decoiler & run-out table)

Application Fields

The 980 Trapezoidal Roll Forming Machine is widely applied in:

Large-scale steel structure workshops and factories.
Warehouses and exhibition centers.
Stadiums and airports.
Residential villas and temporary housing.

Why Choose Our 980 Roll Former?

We provide not just a machine, but a complete solution. From installation guidance to after-sales support, our experienced team ensures your production line runs smoothly. We offer customization for voltage, roller materials, and automation levels to meet your specific market requirements.
