Product Overview

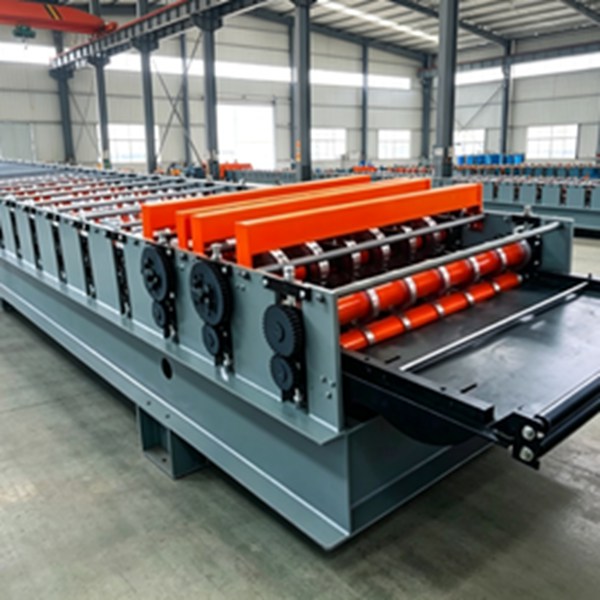

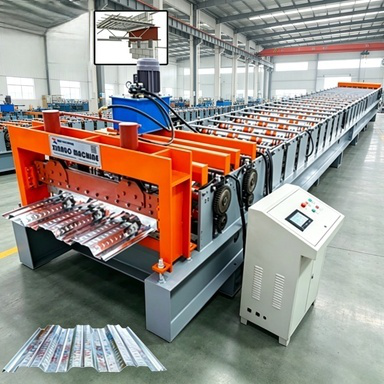

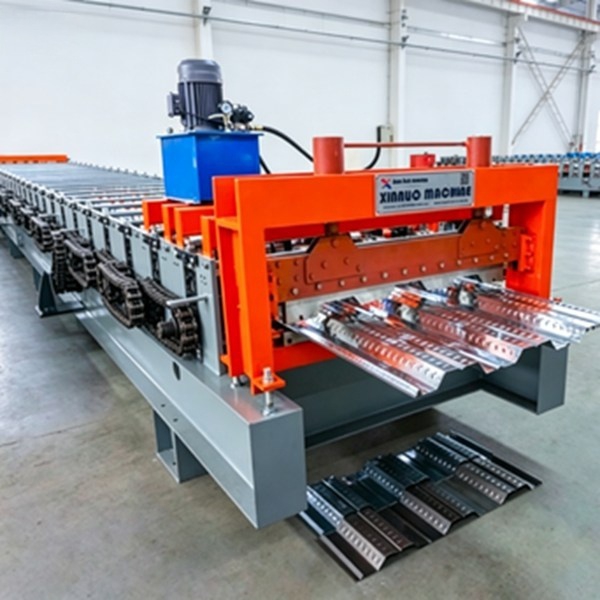

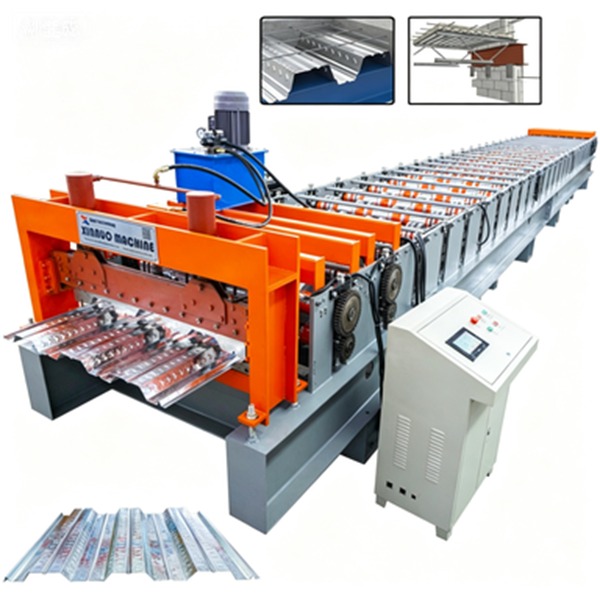

The 1000 type floor deck roll forming machine is specially designed to produce high-quality 1000mm wide galvanized steel floor decking sheets (also known as composite metal floor decks). The finished panels feature a unique ribbed design that works with concrete to form a strong composite floor system, widely used in multi-story steel structure buildings, commercial complexes, and industrial plants.
Key Features
- ✅ High Precision Forming: Equipped with high-strength alloy steel rollers and PLC control system, ensuring precise dimensions, uniform rib height, and consistent forming quality for every panel.
- ✅ Strong Structural Design: The machine frame adopts heavy-duty steel plate welding and annealing treatment, with high rigidity and deformation resistance, suitable for long-term heavy-duty production.
- ✅ Fully Automatic Operation: The complete production line includes decoiling, feeding, leveling, roll forming, hydraulic cutting, and discharging, with minimal manual intervention and high efficiency.
- ✅ Customizable Specifications: Available for producing 1000mm effective width floor decks with different rib heights (customizable upon request), suitable for various concrete pouring thicknesses.
- ✅ Durable & Low Maintenance: All key components use wear-resistant materials and imported bearings, ensuring stable operation and long service life with low maintenance costs.
- ✅ Safety & Easy Operation: Equipped with safety guards, emergency stop buttons, and a user-friendly touch screen interface, making operation simple and safe.
Technical Highlights
- Raw Material: Galvanized steel coil / PPGI / Aluzinc steel
- Material Thickness: 0.8–1.5mm (customizable)
- Effective Panel Width: 1000mm (customizable)
- Forming Speed: 8–15m/min
- Control System: PLC + Touch Screen (multi-language support)
- Power Supply: 380V/50Hz (customizable for different regions)
- Hydraulic Pressure: 10–16MPa

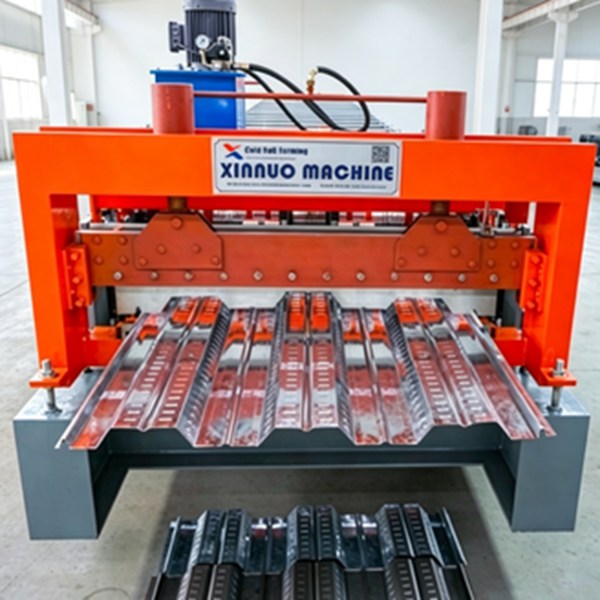

- Cutting Type: Hydraulic automatic cutting
- Main Motor Power: 11–15kW (depends on model)
Applications
- Multi-story steel structure office buildings and commercial complexes
- Industrial workshops, warehouses, and logistics centers
- High-rise residential buildings and prefabricated steel housing
- Bridges, viaducts, and large-span construction projects
- Parking garages and shopping mall floors
- Composite floor systems requiring high load-bearing capacity
