Product Overview
This

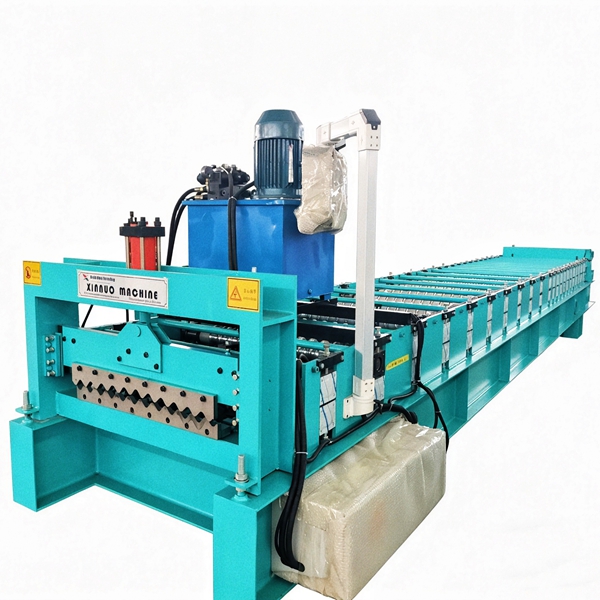

700 Arc Corrugated Wall Panel Roll Forming Machine is professional high-efficiency cold roll forming equipment from Xinnuo Machinery.
It is specially designed for producing 700mm effective width small arc corrugated wave panels. Adopts heavy-duty hydraulic cutting system, full PLC intelligent automatic control and multi-station precision roll forming process. The finished arc corrugated sheets have smooth circular arc lines, beautiful appearance, excellent wind resistance, waterproof and sealing performance. It is specially used for building exterior wall horizontal installation, facade decoration and roof projects, which is a hot-selling export model for global steel structure construction market.
Product Features
- Professional 700 Small Arc Corrugated Profile Design
Standard smooth circular arc wave shape, special for horizontal wall cladding installation, neat lines, strong wind resistance and waterproof sealing performance, perfectly match overseas building facade design requirements.

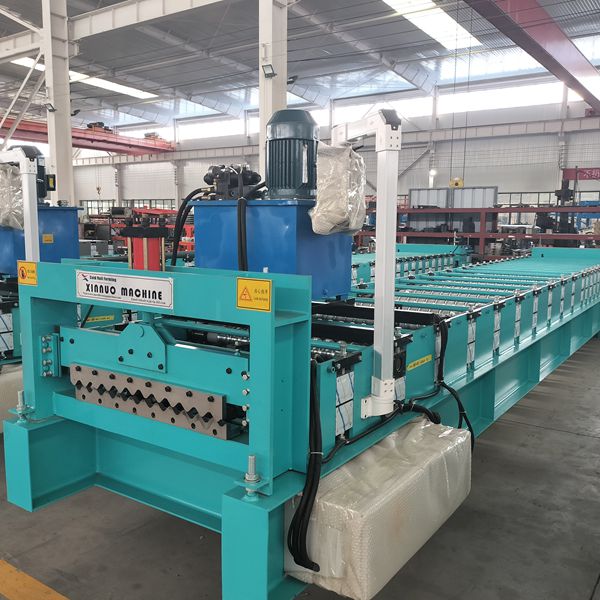

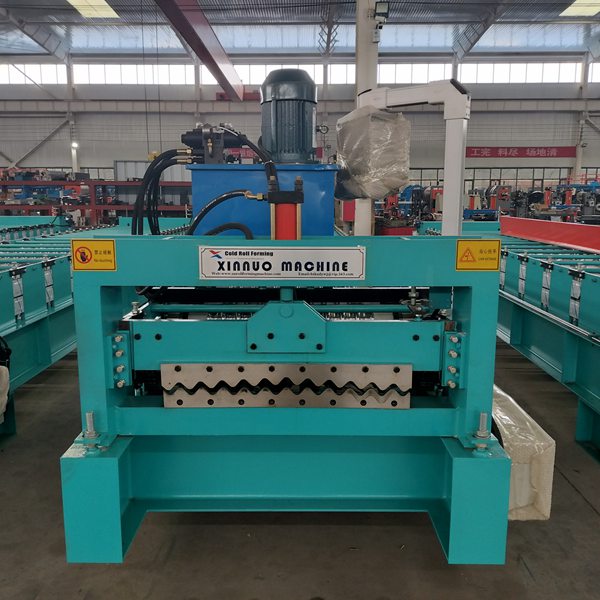

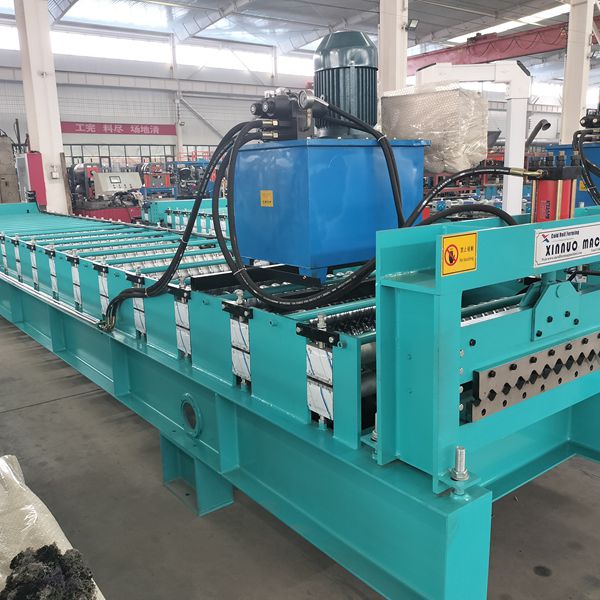

- Heavy Duty Hydraulic Vertical Cutting System (Same As Picture Structure)

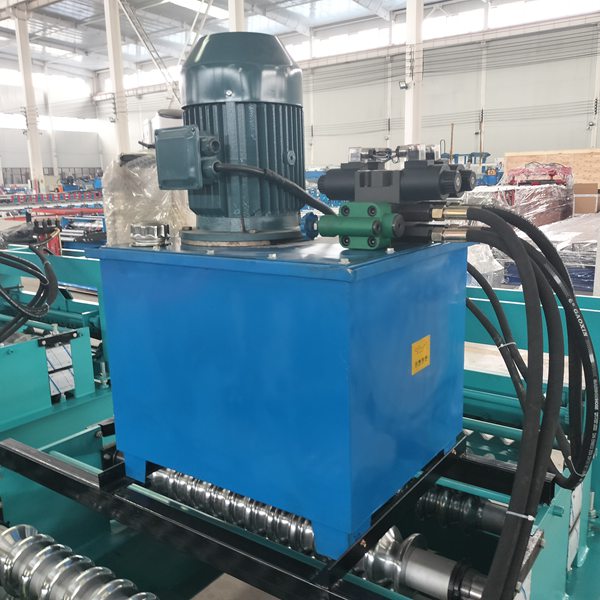

Integrated hydraulic cylinder cutting structure, stable cutting force, smooth burr-free incision, automatic fixed-length cutting, high cutting precision, compact structure and easy maintenance.
- High Speed Fully Automatic Production Line
Whole line controlled by PLC + touch screen, adjustable forming speed, automatic length setting, automatic counting, fault alarm and one-key start operation, greatly improve production efficiency and save labor cost.
- High Durable Core Components

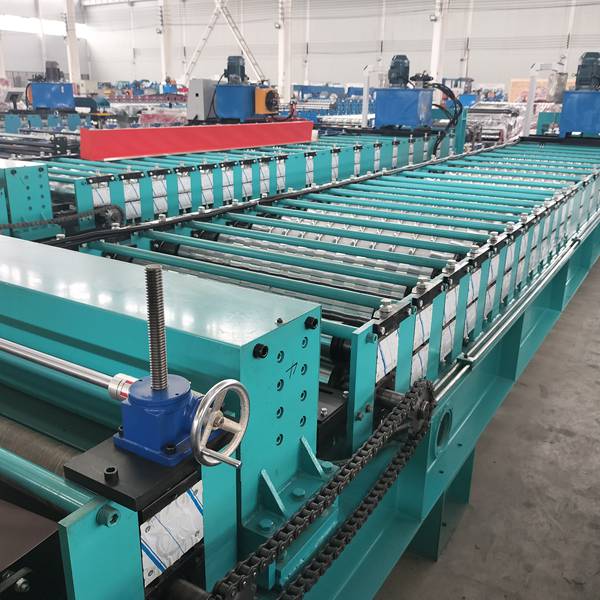

Forming rollers adopt Cr12 quenched mold steel (HRC58-62 hardness), main shaft is 45# high strength solid steel, chain transmission, stable operation, low noise and long service life.
- Wide Material Adaptability
Suitable for color coated steel coil, galvanized GI steel coil, aluzinc steel coil, meet global mainstream roofing & walling material requirements.
- Xinnuo Brand Export Standard Configuration
CE certified safety structure, customizable voltage (380V/220V, 50Hz/60Hz), complete export documents, factory direct supply, easy overseas installation and commissioning.
Application Fields
- Steel structure building exterior wall horizontal cladding projects
- Industrial workshops, warehouses, commercial building facade decoration
- Prefabricated houses, modular prefabricated building wall panels
- Agricultural greenhouses, livestock farm exterior wall construction
- Building roof wave panel renovation & new construction projects
Our Advantage
Xinnuo Machinery is professional roll forming machine manufacturer with more than 30 years export experience. This 700 arc corrugated wall panel machine is our mature hot-selling export model, stable quality, factory direct competitive price, strict pre-delivery test. We provide 1 year whole machine warranty, overseas remote technical support, installation guidance & after-sales service. Support customized profile shape, size and voltage according to customer requirements.
