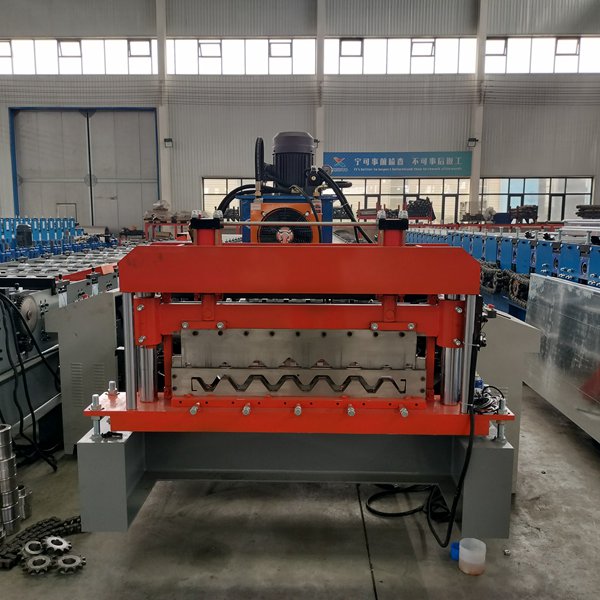

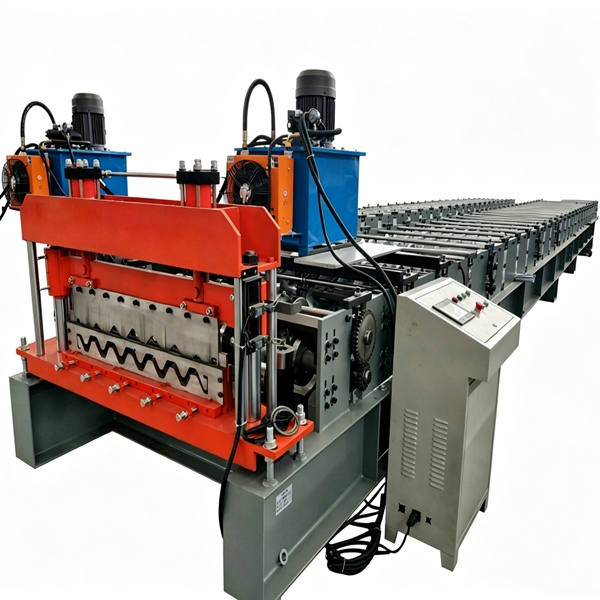

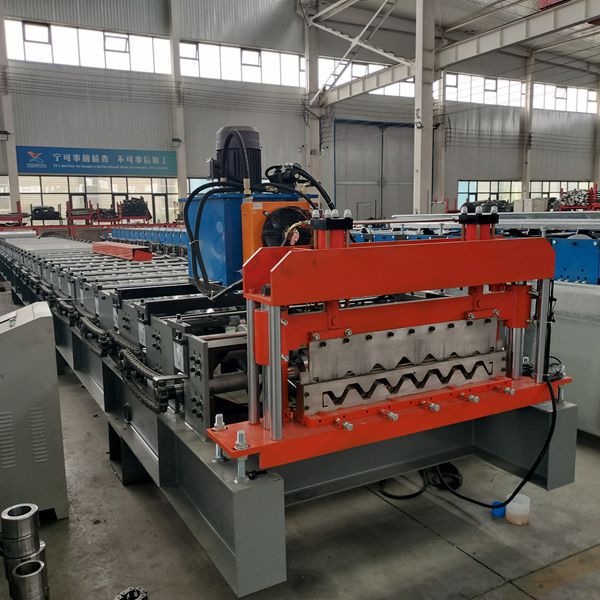

30 Stands 840 Trapezoidal Roof Sheet Roll Forming Machine

30 Stands 840 Trapezoidal Roof Sheet Roll Forming Machin

Professional Automatic Color Steel Roofing Forming Equipment

Product Overview

This 30 Stands 840 Trapezoidal Roof Sheet Roll Forming Machine is a high-precision full automatic cold roll forming machine, specially designed for producing standard 840mm effective width trapezoidal IBR roofing sheets. Equipped with 30 groups of precision forming roller stands, it adopts progressive cold bending technology to process color coated steel coils and galvanized steel coils into standard trapezoidal roof panels. The whole production line realizes fully automatic operation from uncoiling, feeding, roll forming to hydraulic cutting, with stable performance, high forming precision and high production efficiency, which is the ideal equipment for global steel structure roofing projects.

Core Features

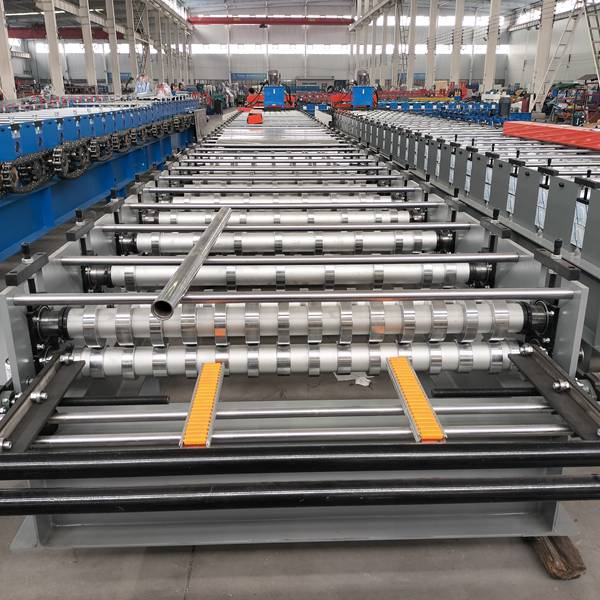

• 30 Stands High-Precision Rollers: 30 groups of quenched alloy steel roller stands, progressive gentle forming, effectively avoid sheet deformation, wrinkles and cracks, ensure perfect trapezoidal profile shape and high finished product flatness.
• 840mm Standard Trapezoidal Profile: Specialized for 840mm effective width IBR trapezoidal roof sheet, excellent waterproof performance and load-bearing capacity, hot-selling model in Middle East, Africa and Southeast Asia markets.
• Full Automatic PLC Control: Equipped with PLC numerical control system + HMI touch screen, fully automatic operation, adjustable forming speed, free setting of finished sheet length.

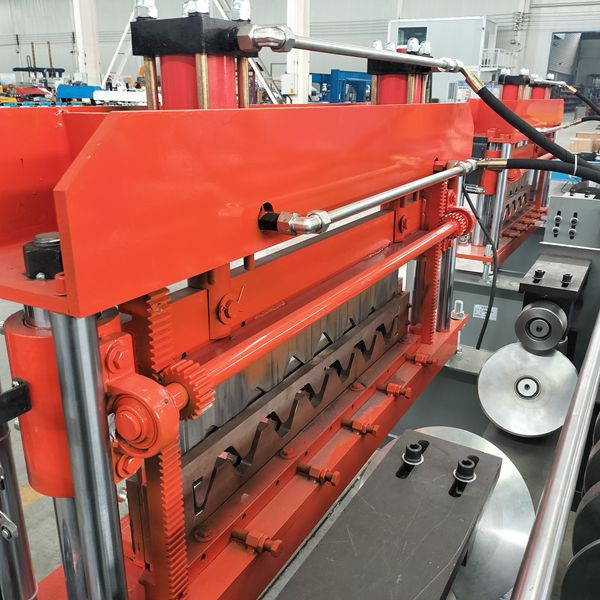

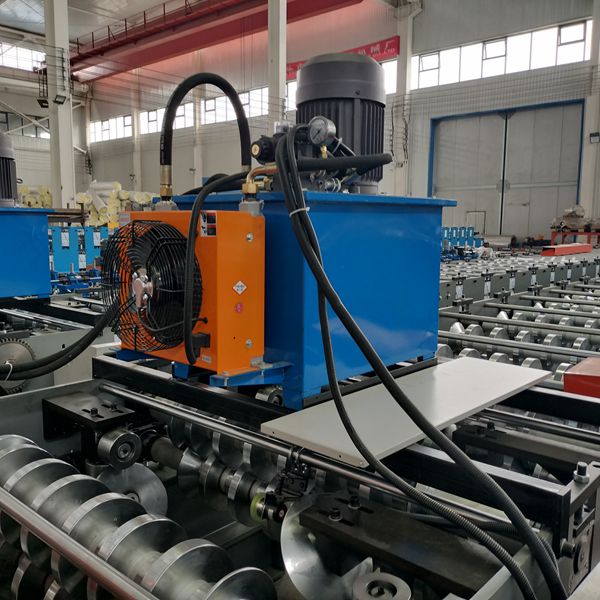

• Hydraulic Cutting System: Adopt hydraulic post-cutting design, high cutting precision, smooth incision without burr, cutting accuracy within ±1mm.
• High Rigidity Machine Frame: Heavy-duty welded steel frame, stable structure, strong load-bearing capacity, anti-deformation and long service life.
• Wide Material Adaptability: Suitable for color coated steel sheet, galvanized steel sheet.
• Easy Operation & Maintenance: Humanized control cabinet, simple operation, convenient daily maintenance and roller maintenance.
