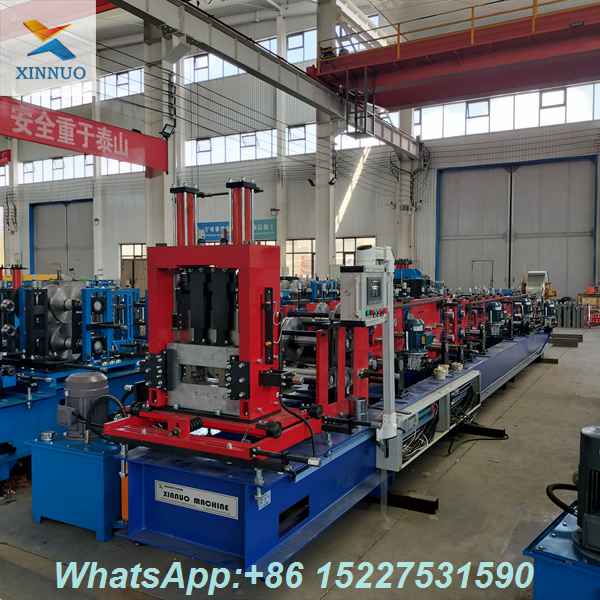

XINNUO Fully Automatic Computer-Controlled C-Channel Roll Forming Machine with PLC & Touchscreen Interface

Product Description

The XINNUO Fully Automatic Computer-Controlled C-Channel Roll Forming Machine is engineered for high-efficiency production of C-shaped steel purlins, widely used in industrial and commercial construction projects. This advanced machine integrates a PLC control system with an intuitive touchscreen interface, enabling operators to monitor and adjust parameters in real time for optimal performance.

• Brand: XINNUO MACHINE
• Model: XN-C80/100/120 (Customizable)
• Forming Speed: 15–25 m/min (Adjustable)
• Material Thickness: 1.5–3.0 mm
• Material Width: 600–1200 mm

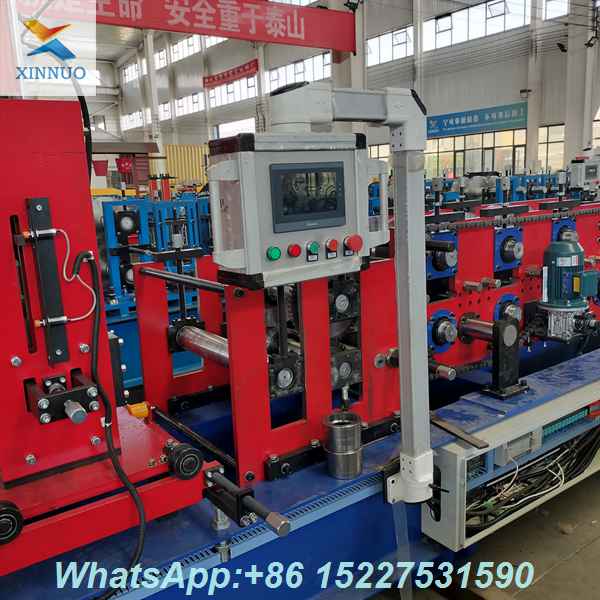

• Control System: PLC + Touchscreen HMI
• Drive System: Servo Motor + Hydraulic Power Unit
• Roller Material: Cr12MoV High-Wear Alloy Steel
• Machine Dimensions: Approx. 18m × 2.5m × 2.8m (Adjustable by model)
• Applicable Materials: Galvanized Steel, Color-Coated Steel, Cold-Rolled Steel
• Automation Features: Auto Feeding, Punching, Cutting, Counting, Fault Alarm
• Power Requirement: 380V/50Hz/3Phase (Customizable)
• Packaging: Wooden Crate + Moisture-Proof Film, Suitable for Sea/Land Transport

Designed for versatility, the machine supports material thicknesses from 1.5 to 3.0 mm and widths up to 1200 mm, accommodating a broad range of steel profiles. Its robust Cr12MoV alloy rollers ensure long service life and consistent forming quality, even under continuous operation. The hydraulic punching system allows precise hole placement, while the servo-driven cutting mechanism guarantees clean, accurate cuts at speeds up to 25 meters per minute.

Ideal for manufacturers seeking to scale production without compromising precision, this machine features automatic feeding, counting, and fault detection systems that minimize downtime and labor costs. Its modular design allows for easy customization to meet specific client requirements, including different channel sizes and punching patterns.

Backed by XINNUO’s reputation for reliability and after-sales support, this C-channel roll former is a smart investment for any steel fabrication facility aiming to enhance productivity and maintain competitive edge in the global market.
