Product Overview

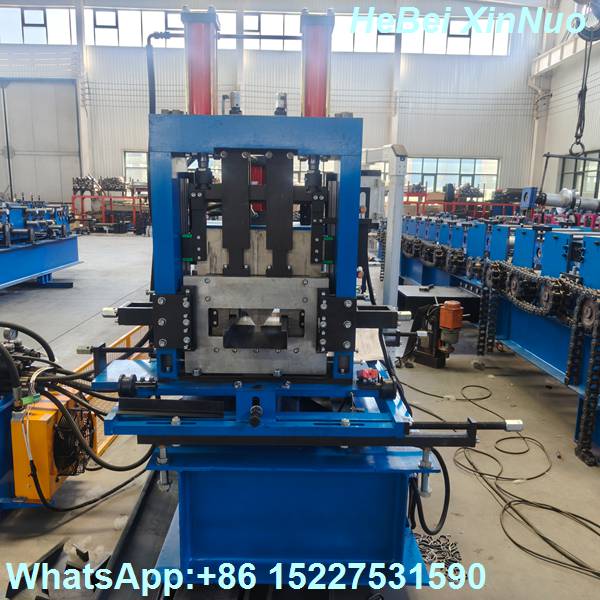

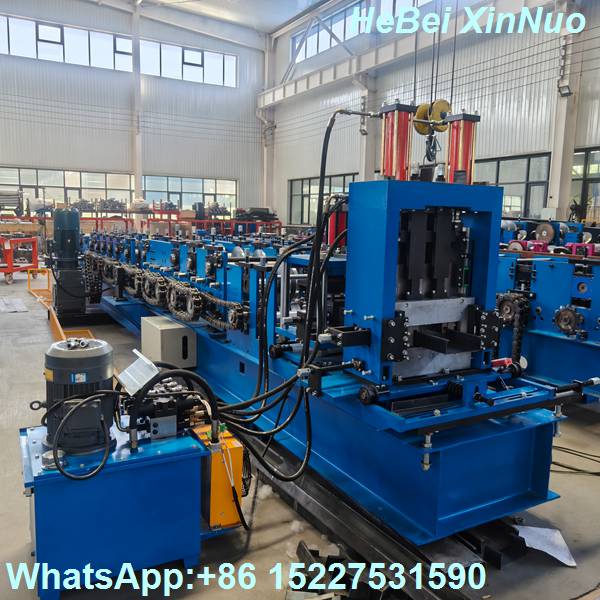

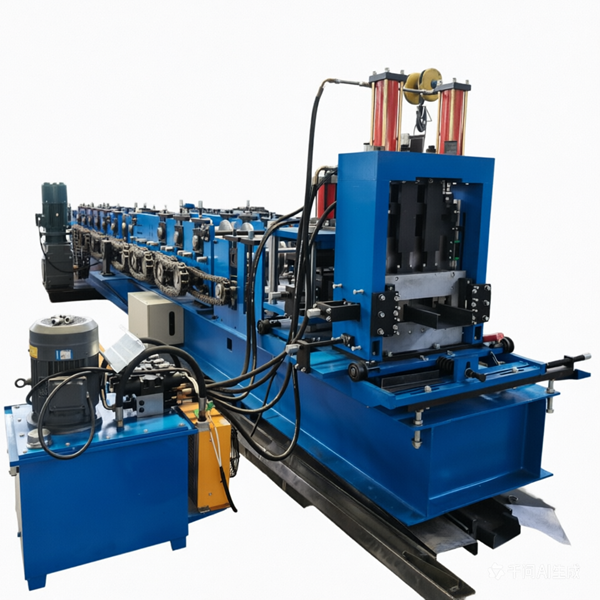

Maximize your structural steel production efficiency with our Automatic 15-Station C Purlin Roll Forming Machine. Engineered for heavy-duty performance, this machine produces high-precision C-shaped purlins with a fully adjustable size range of 50-200mm. Featuring a robust 15-row forming process it ensures smooth operation, minimal material waste, and superior dimensional accuracy—ideal for manufacturing purlins for warehouses, industrial plants, and large-scale construction projects.
Key Features
- Wide Adjustable Range (50-200mm): The machine allows for seamless size adjustment across the entire 50-200mm spectrum, enabling the production of various C-purlin specifications to meet diverse construction requirements without the need for manual roller changes.

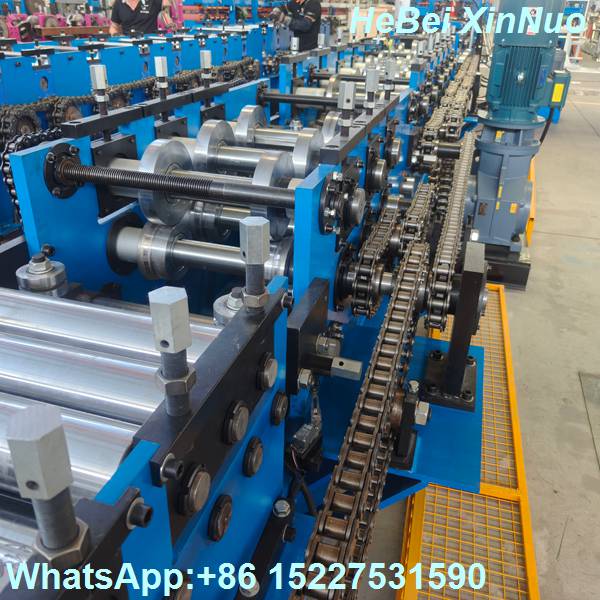

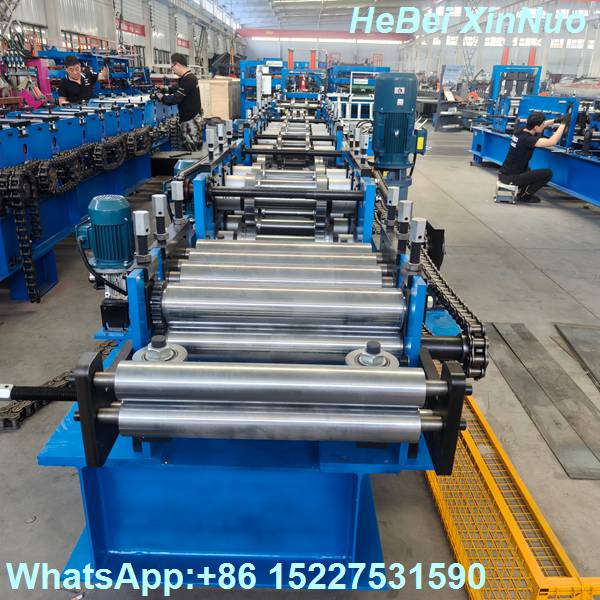

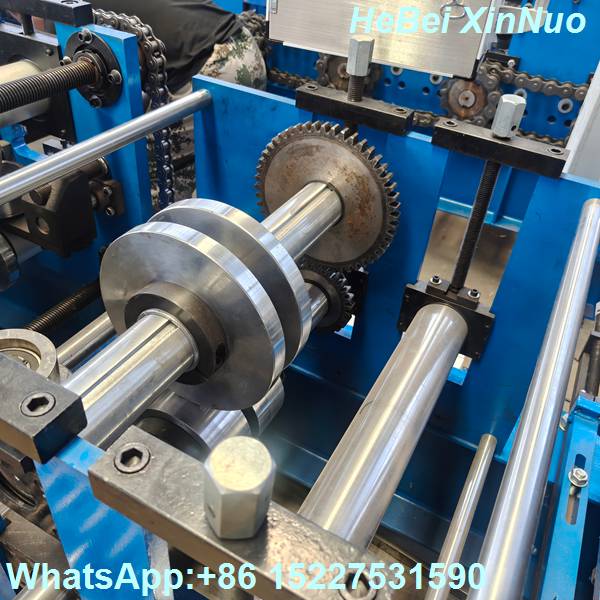

- 15-Station Precision Forming: Equipped with 15 rows of high-quality alloy steel rollers, the forming process is gradual and stable, ensuring the steel strip is shaped perfectly without deformation, guaranteeing the strength and flatness of the final C-purlin.

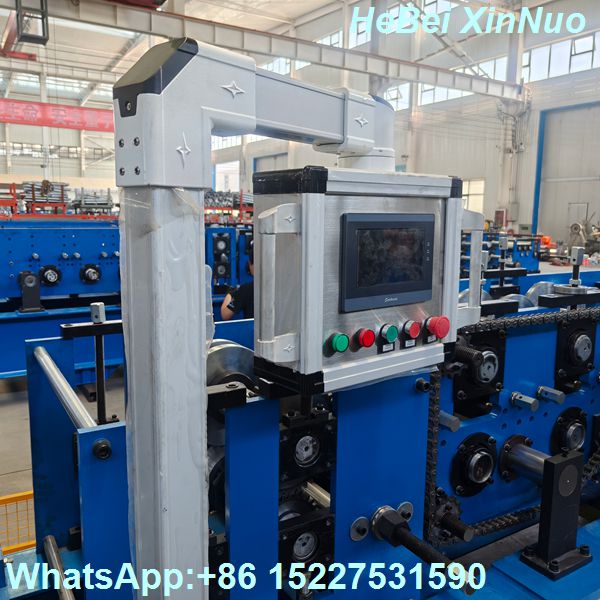

- Advanced PLC Control System: Powered by a user-friendly PLC control system with a touch screen interface, operators can easily set parameters such as length, quantity, and speed. The system also features fault diagnosis and data storage capabilities for simplified operation and maintenance.

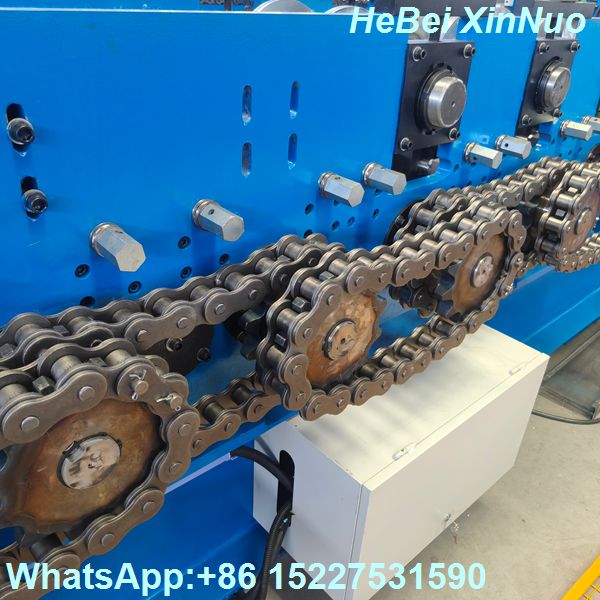

- Heavy-Duty Construction: Built with a reinforced welded steel frame and high-precision transmission components, the machine is designed to withstand continuous, high-intensity production environments, ensuring long-term stability and durability.
- Versatile Material Compatibility: Capable of processing galvanized steel coils, cold-rolled steel, and other metal materials with thicknesses typically ranging from 1.5mm to 3.0mm, making it suitable for a wide range of structural applications.
Technical Specifications
- Forming Stations: 15 Rows

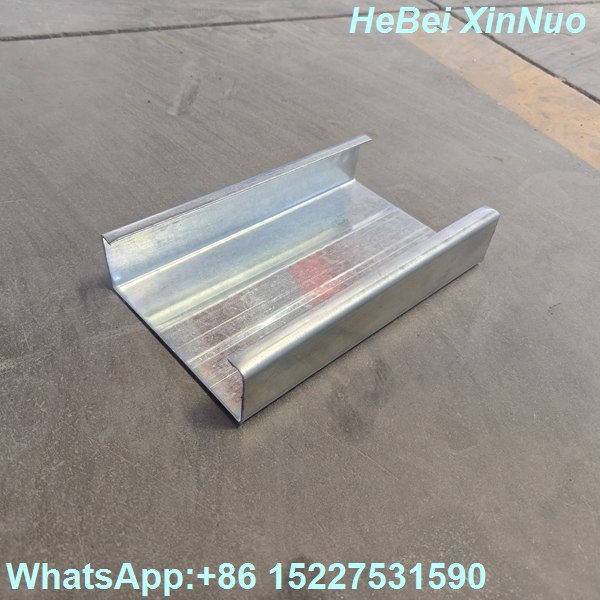

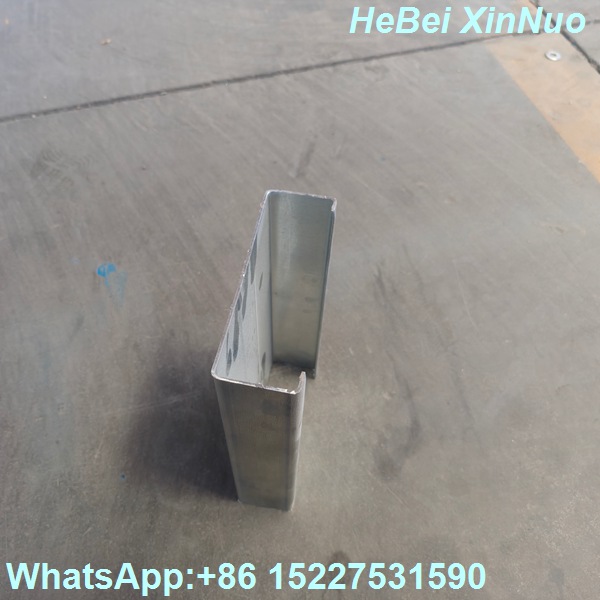

- Product Type: C Purlin (Adjustable)
- Size Range: 50-200mm (Flange Width)
- Material Thickness: 1.5-3.0mm

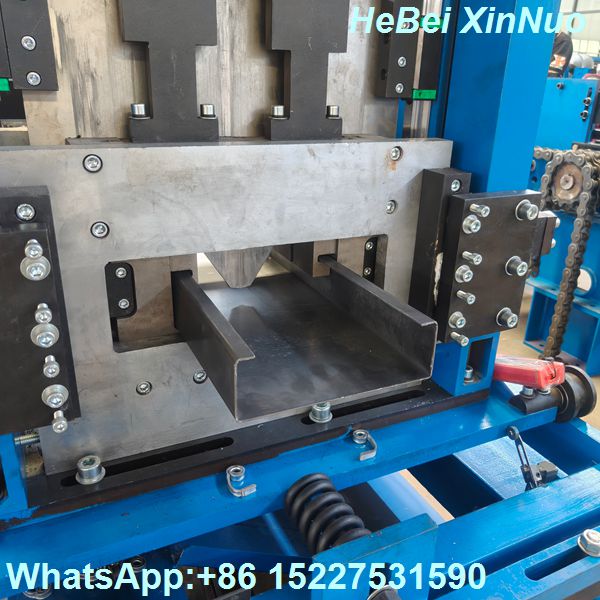

- Cutting System: hydraulic shear
- Control System: PLC
- Production Speed: 10-20m/min (depending on thickness and length)
- Roller Material: GCr15 Bearing Steel, Heat Treated
Applications
This C Purlin Roll Forming Machine is widely used in the construction industry for producing purlins and girts for:
- Steel structure warehouses and workshops
- Industrial plants and factories
- Commercial buildings and shopping malls
- Residential steel frame houses
- Agricultural buildings and greenhouses
