Revolutionizing Steel Structure Manufacturing with Integrated Efficiency
In the rapidly evolving sector of pre-engineered buildings and steel structure construction, the demand for versatile, high-speed production equipment is at an all-time high. The Xinnuo CZ Integrated Purlin Roll Forming Machine stands as a testament to modern engineering excellence. Unlike traditional machines that require time-consuming roller changes to switch between C and Z profiles, our integrated design allows for seamless profile switching via a simple control panel adjustment. This innovation drastically reduces downtime, increases production flexibility, and maximizes ROI for manufacturers serving diverse construction projects.
Robust Construction for Heavy-Duty Performance

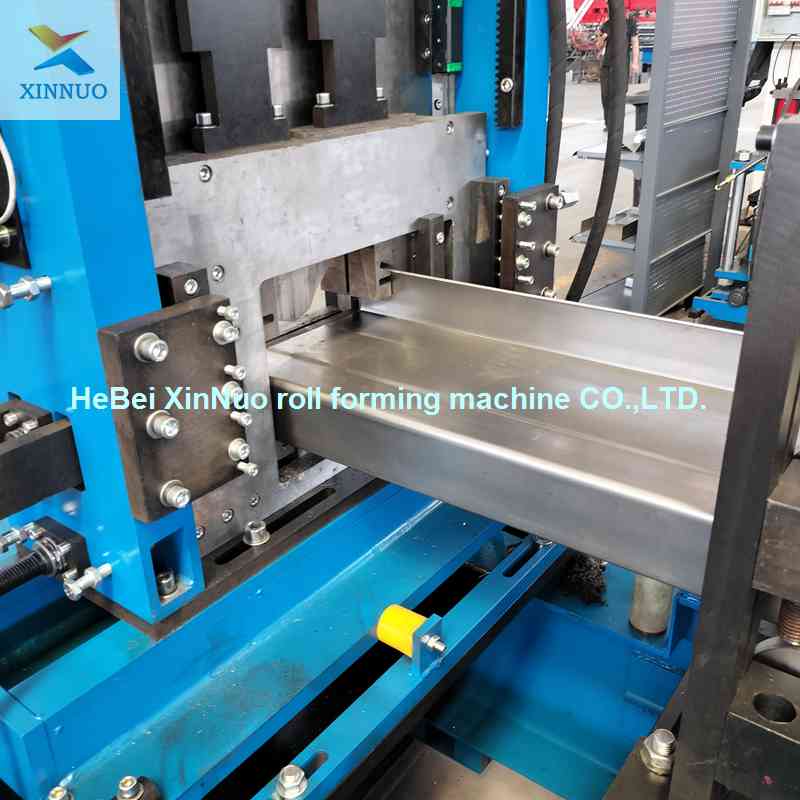

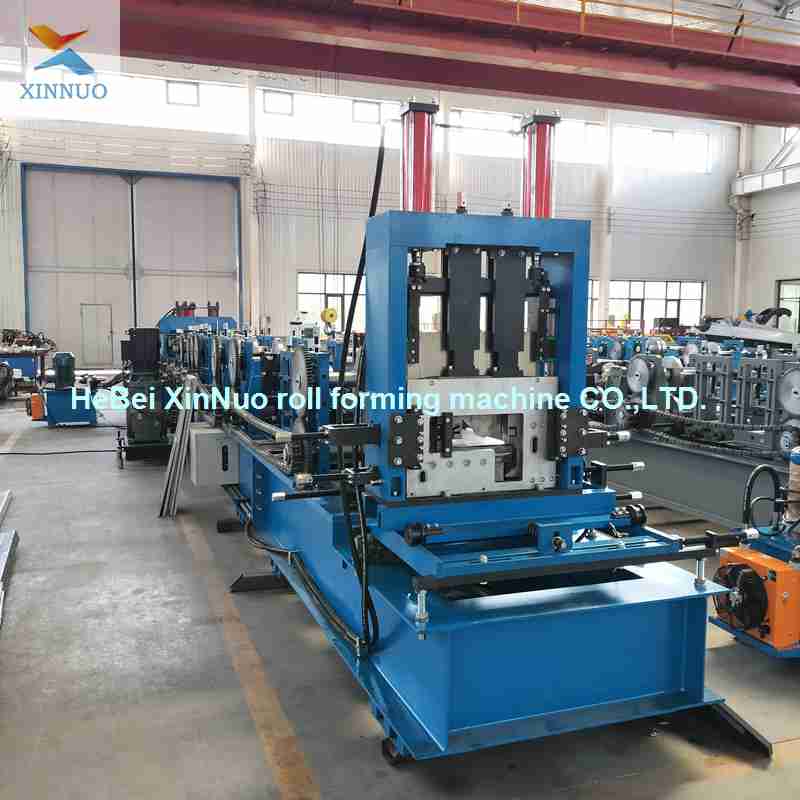

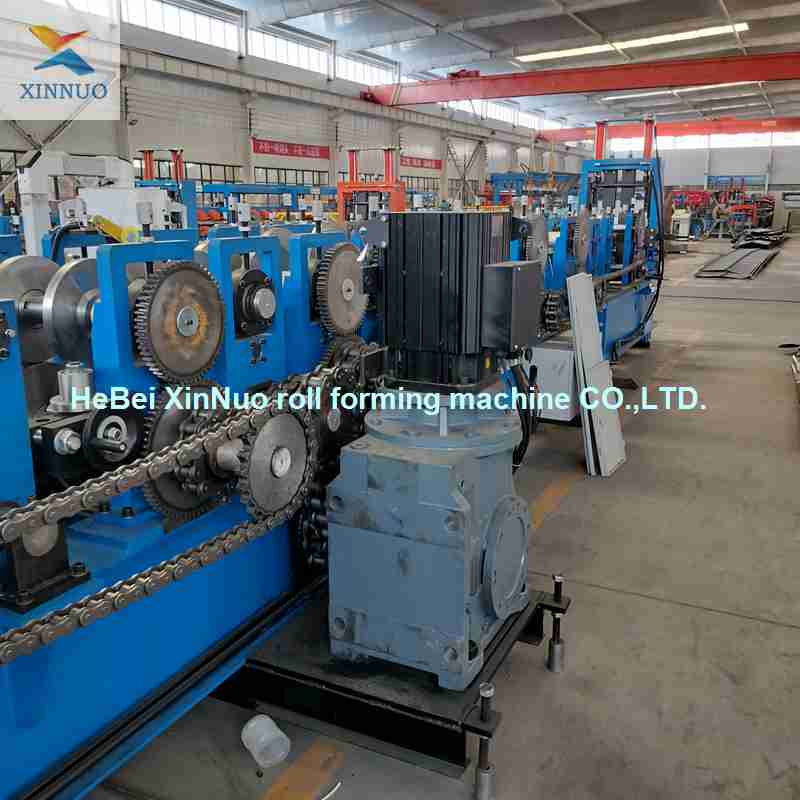

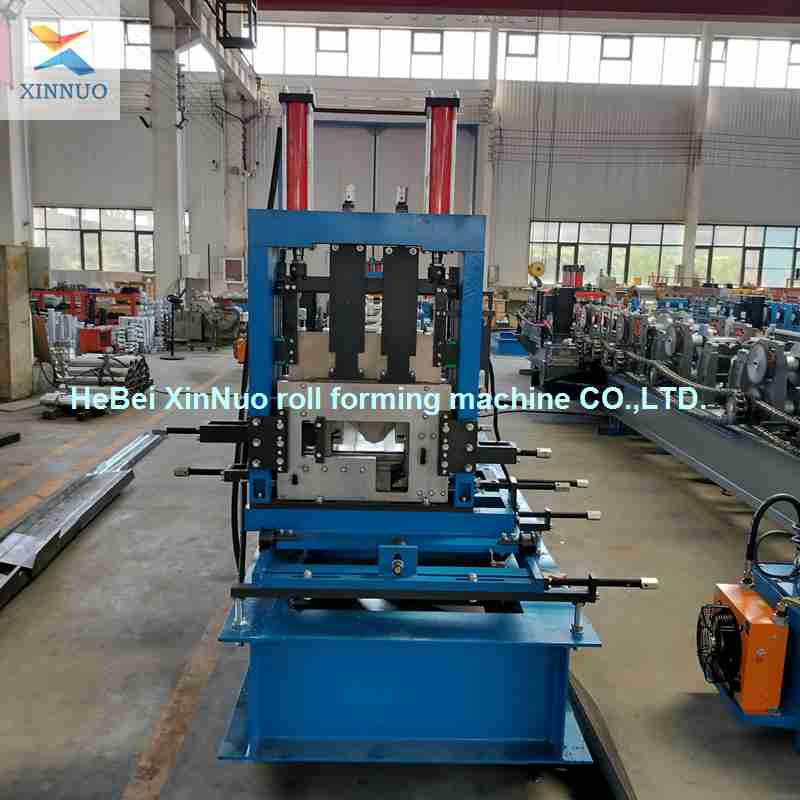

The image reveals a machine built for endurance. The main frame is fabricated from high-strength H350 steel plates, ensuring absolute stability even when processing thick-gauge steel at high speeds. The forming stations are arranged in a precise linear sequence, driven by heavy-duty chains and gears that distribute torque evenly across all rollers. This robust transmission system minimizes wear and tear, extending the machine's operational lifespan significantly compared to belt-driven alternatives. The hydraulic cutting unit, prominently featured in the foreground, utilizes a "flying shear" mechanism that synchronizes with the material speed, ensuring clean, square cuts without stopping the line—a critical feature for maintaining high throughput.
Precision Engineering & Material Quality
Quality output begins with quality components. Xinnuo uses GCr15 bearing steel for all forming rollers, heat-treated to HRC58-62 and polished to a mirror finish. This ensures that the steel coil flows smoothly through the machine without surface scratches, preserving the galvanized or painted coating of the raw material. The shafts are made from solid 45# steel, machined and ground to ensure perfect concentricity. This precision results in purlins with consistent dimensions, straight edges, and accurate hole positioning—essential for easy assembly on construction sites. The machine can handle material thicknesses from 1.5mm to 3.0mm, making it suitable for both light residential structures and heavy industrial warehouses.
Intelligent Automation & User-Friendly Operation
Modern manufacturing demands intelligence. Our CZ Integrated machine is equipped with an advanced PLC control system and a user-friendly touch screen interface. Operators can input the desired profile type (C or Z), dimensions, quantity, and hole positions with just a few taps. The system automatically adjusts the forming parameters and controls the hydraulic punching and cutting sequences. Features like auto-length counting, fault diagnosis, and production data logging simplify operations and reduce the need for highly skilled labor. Safety is also paramount, with emergency stop buttons, protective guards, and light curtains integrated throughout the machine to protect operators.
Market Application & Strategic Value
C and Z purlins are the backbone of modern steel structures, used extensively in:
- Industrial Warehouses & Factories
- Aircraft Hangars & Sports Stadiums
- Multi-Story Steel Buildings
- Solar Mounting Structures
By investing in the Xinnuo CZ Integrated Roll Forming Machine, manufacturers gain the ability to respond quickly to market demands. Whether a client needs C-purlins for wall girts today and Z-purlins for roof rafters tomorrow, this machine handles both without delay. This versatility is a significant competitive advantage in the fast-paced construction supply chain.
Why Choose Xinnuo?
With over 15 years of experience in the roll forming industry, Xinnuo Machine has established a global reputation for reliability and innovation. We don't just sell machines; we provide comprehensive solutions. From initial layout design and installation to operator training and lifetime technical support, our team is dedicated to your success. Our machines are CE certified and built to withstand the rigors of continuous industrial use. Join hundreds of satisfied customers worldwide who have transformed their production capabilities with Xinnuo.
