Overview: Revolutionizing Steel Structure Fabrication
In the rapidly evolving construction industry, efficiency and versatility are paramount. The XINNUO Automatic CZ Purlin Roll Forming Machine with Front Punching represents the pinnacle of cold roll forming technology designed specifically for modern steel structure projects. Unlike traditional machines that require manual mold changes to switch between C-channel and Z-channel profiles, our advanced system allows for seamless, automated switching between C and Z shapes within seconds via the control panel. This "One Machine, Two Uses" capability significantly reduces downtime and maximizes production output for fabricators handling diverse architectural requirements.
Key Feature: Advanced Front Punching Technology

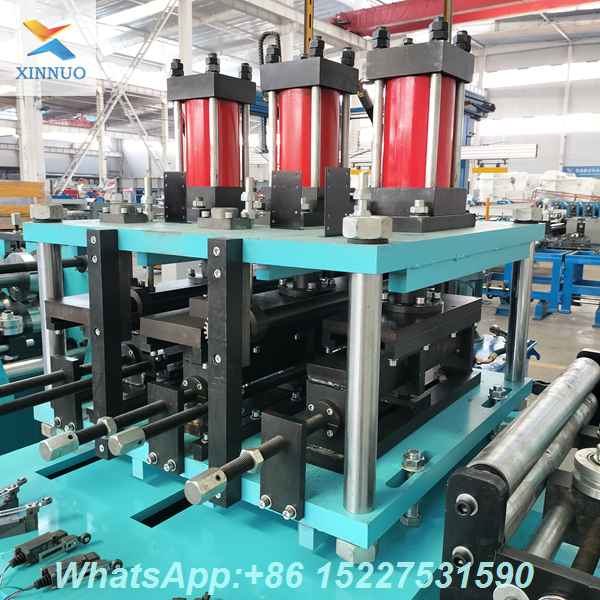

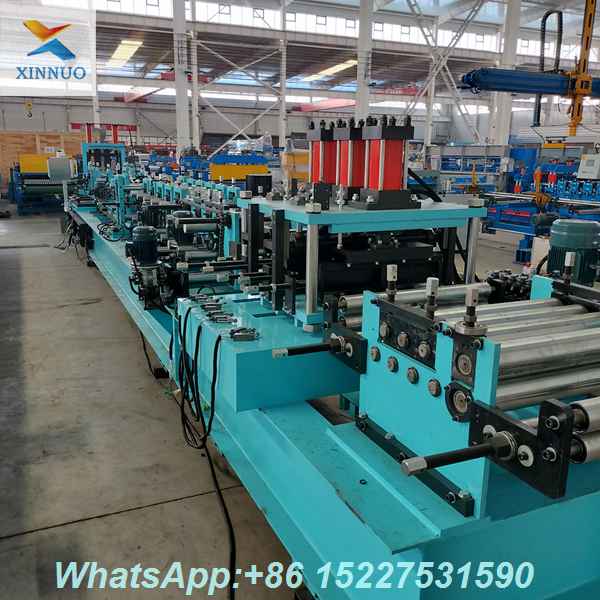

A standout feature of this machine, clearly visible in the product imagery, is the Front Punching System. Positioned at the entry level before the material enters the forming stations, this hydraulic punching unit pre-punches holes into the flat steel strip.
- Why Front Punching? Punching before forming prevents the deformation of holes that often occurs when punching is done after the profile is shaped. This ensures higher dimensional accuracy for bolt holes and connection slots.
- Versatility: The system can be programmed to punch various hole shapes (round, square, oblong) and positions according to your specific engineering drawings, facilitating easy on-site assembly of steel beams and columns.
Precision Engineering and Durability

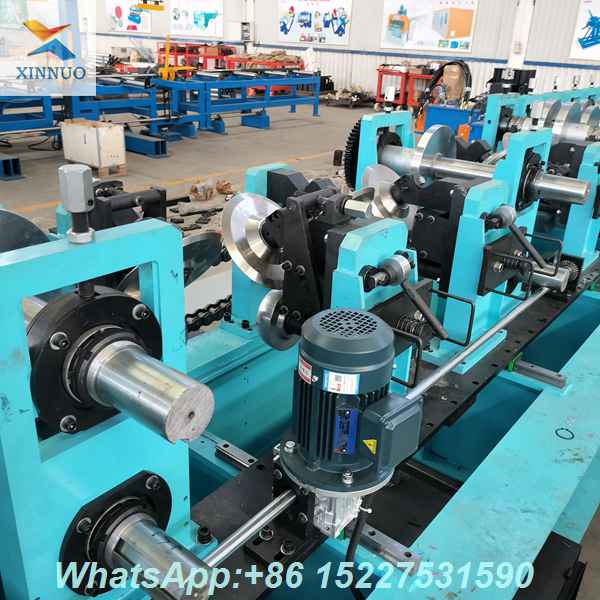

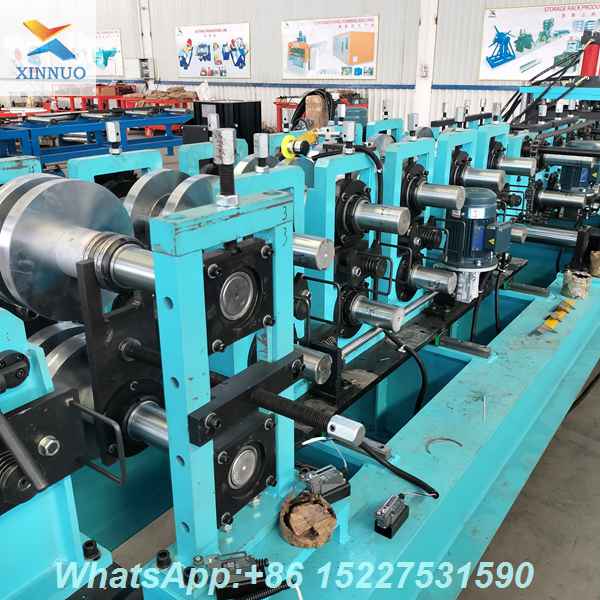

Built to withstand the rigors of continuous industrial operation, the XN-CZ series features a robust main frame constructed from thick steel plates to ensure stability at high speeds. The forming rollers are machined from high-quality Cr12Mov alloy steel and undergo heat treatment (quenching) to achieve a hardness of HRC58-62°. This ensures the rollers resist wear and maintain profile precision over millions of meters of production. The shafts are made from solid #45 steel, providing the torque necessary to process thicker gauge materials (up to 3.0mm) without deflection.
Intelligent Control System

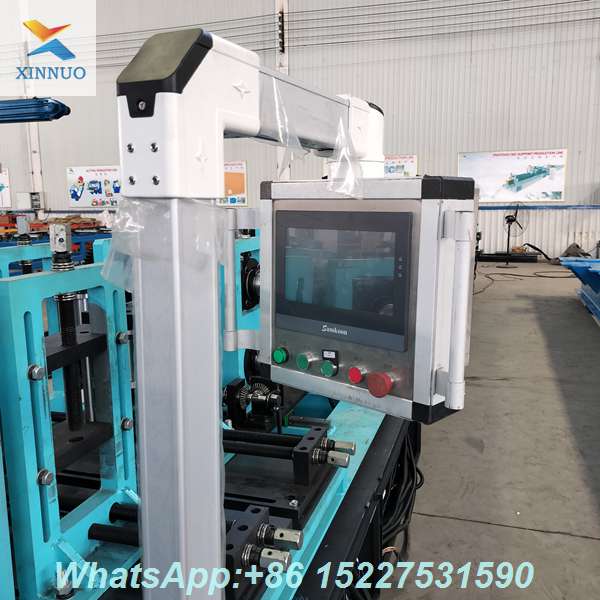

The machine is operated via a user-friendly PLC interface. Operators can simply input the desired dimensions (length, quantity, and hole positions) for C or Z purlins, and the machine automatically adjusts the width and height of the profile. The system supports automatic counting, batch stopping, and fault diagnosis, making it accessible even for operators with limited technical experience.
Applications
This machine is essential for manufacturing purlins used in:
- Large-scale industrial workshops and warehouses.
- Aircraft hangars and sports stadiums.
- Multi-story steel residential buildings.
- Solar power station mounting structures.
Why Choose XINNUO?
As a leading manufacturer in the roll forming sector, XINNUO doesn't just sell machines; we provide solutions. Our CZ Purlin Machine is engineered with a focus on minimizing material waste and energy consumption while maximizing output speed. Whether you are a startup fabrication shop or a large-scale steel constructor, this equipment offers the flexibility and reliability needed to stay competitive in the global market.
