Precision Engineering for Modern Steel Structures

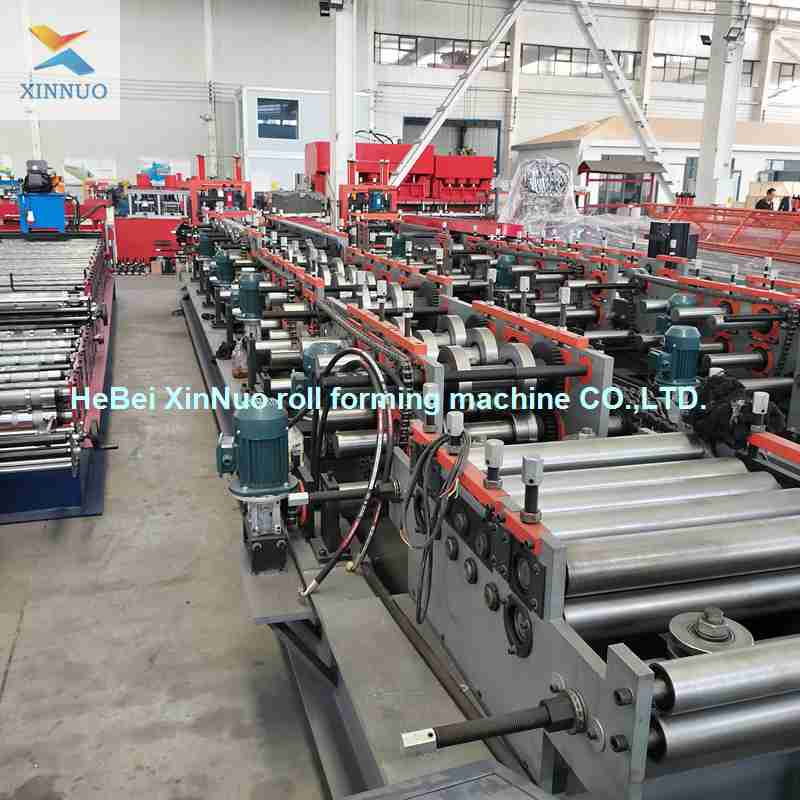

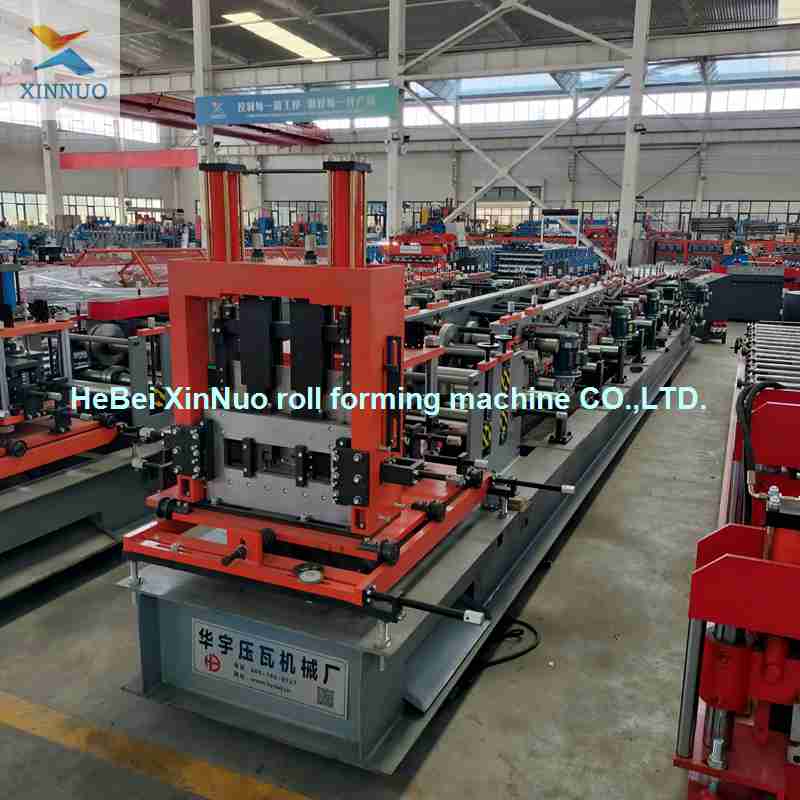

The construction industry's shift towards pre-engineered buildings has created a massive demand for high-quality structural components. The C Purlin Roll Forming Machine is designed specifically to meet this need, producing precise C-channel purlins used extensively in wall girts, roof rafters, and framing systems. As seen in the image, this machine features a robust, heavy-duty design capable of handling thick-gauge steel coils with ease. Unlike lighter models, this unit is built for continuous industrial operation, ensuring that your production line never stops when demand peaks.
Robust Structure & Heavy-Duty Components
The visual evidence of this machine highlights its durability. The main frame is constructed from thick H350 steel plates, welded and stress-relieved to prevent deformation over time. This solid foundation is critical for maintaining alignment during the high-pressure forming process.

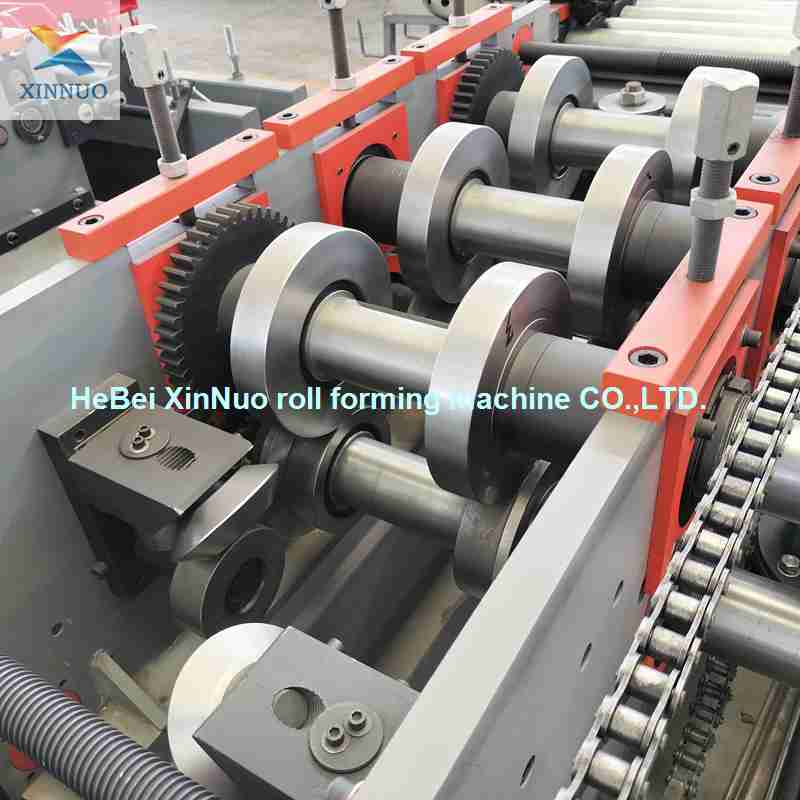

- Premium Rollers: We use GCr15 bearing steel for all forming rollers, heat-treated to HRC58-62 and polished to a mirror finish. This ensures the galvanized coating of your steel coil remains scratch-free, preserving the corrosion resistance of the final product.

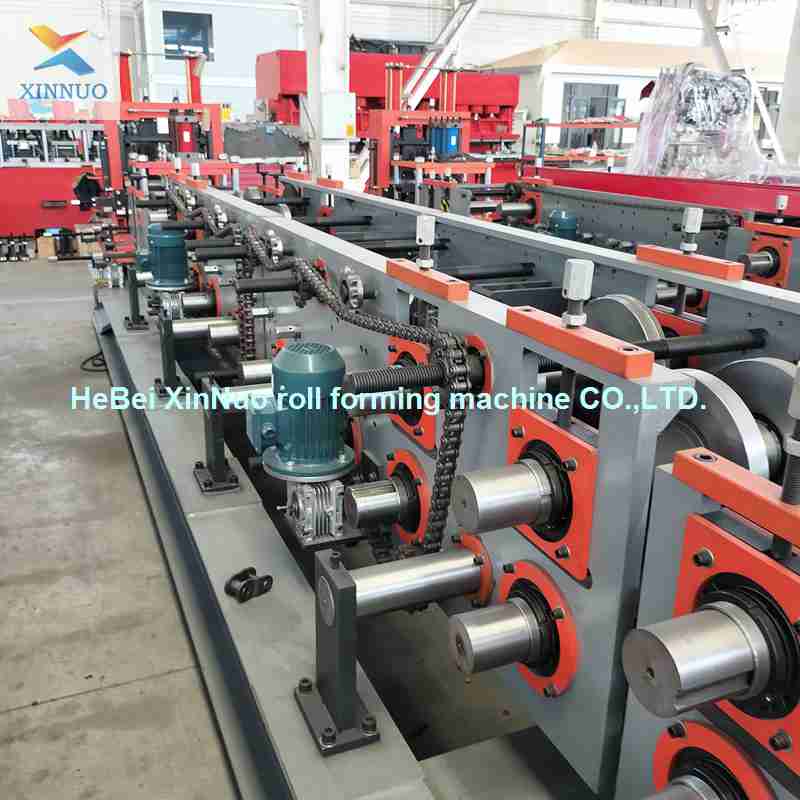

- Solid Shafts: The drive shafts are made from solid 45# steel, machined and ground to ensure perfect concentricity. This eliminates vibration and noise, even at high speeds.

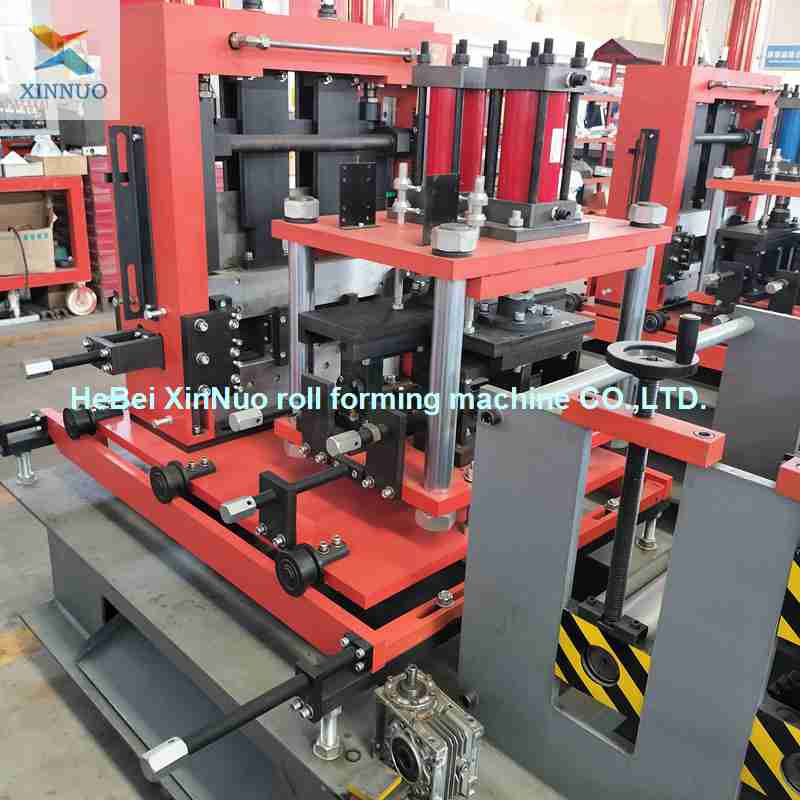

- Hydraulic Cutting: The prominent red cutting unit at the front utilizes a hydraulic post-cutting system. The blades are made from Cr12Mov mold steel, offering a long service life and clean, burr-free cuts that require no secondary finishing.
Intelligent Automation & Efficiency
Efficiency is the key to profitability in the roll forming market. Our C Purlin Machine is equipped with a state-of-the-art PLC control system.
- Automated Operation: Operators simply input the desired length, quantity, and hole positions into the touch screen. The machine automatically handles feeding, forming, punching, and cutting.
- High-Speed Punching: Integrated hydraulic punching units create bolt holes and service holes with high precision, synchronized perfectly with the forming speed. This eliminates the need for separate drilling processes.
- Safety First: The machine includes emergency stop buttons, protective guards around chains and gears, and safety light curtains to ensure operator safety in compliance with international standards.
Market Application & Versatility
C-purlins are fundamental to modern construction. They are widely used in:
- Industrial Warehouses & Factories
- Aircraft Hangars & Gymnasiums
- Multi-story Steel Buildings
- Solar Power Mounting Systems
By investing in this dedicated C Purlin Roll Forming Machine, manufacturers can produce components that meet strict structural engineering standards. The consistent dimensions and high strength of the produced purlins ensure easy assembly on-site, reducing labor costs for construction teams.
Why Choose This Equipment?
With years of experience in the roll forming industry, we understand that reliability is non-negotiable.
- Global Standards: Our machines are CE certified and built to适应 various voltage and frequency standards worldwide.
- After-Sales Support: We provide comprehensive video tutorials, English manuals, and 24/7 online technical support.
- Customization: Need specific hole patterns or different painting colors? We tailor the equipment to your factory's branding and technical requirements.
