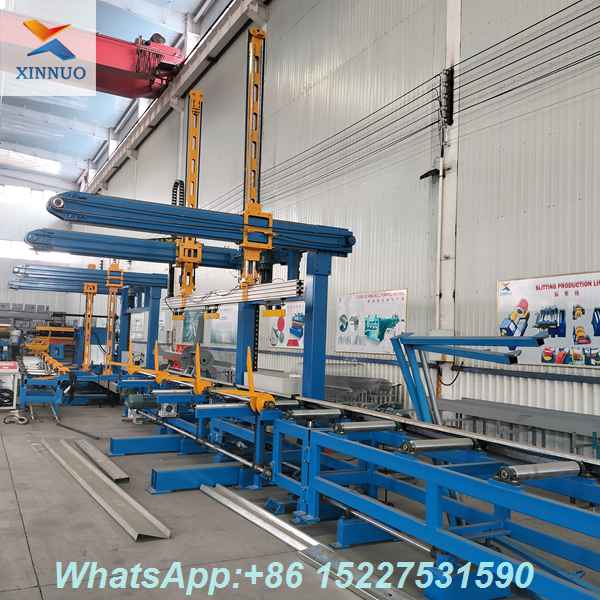

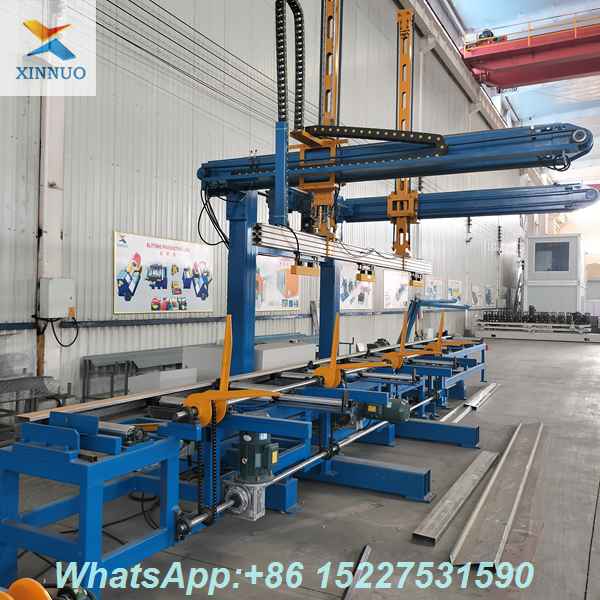

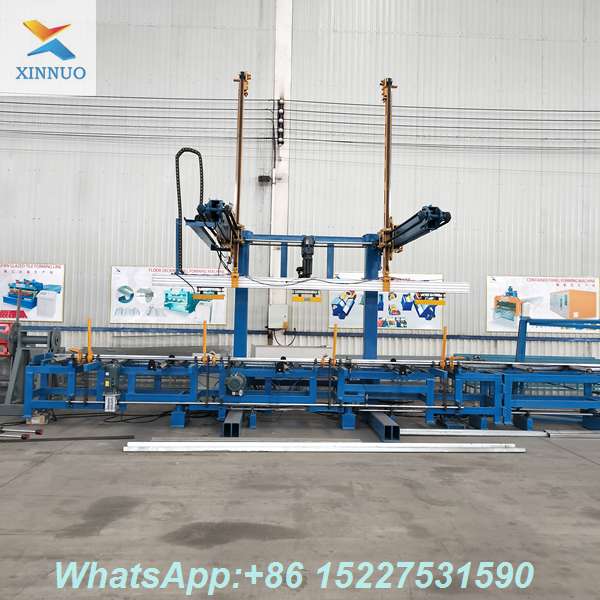

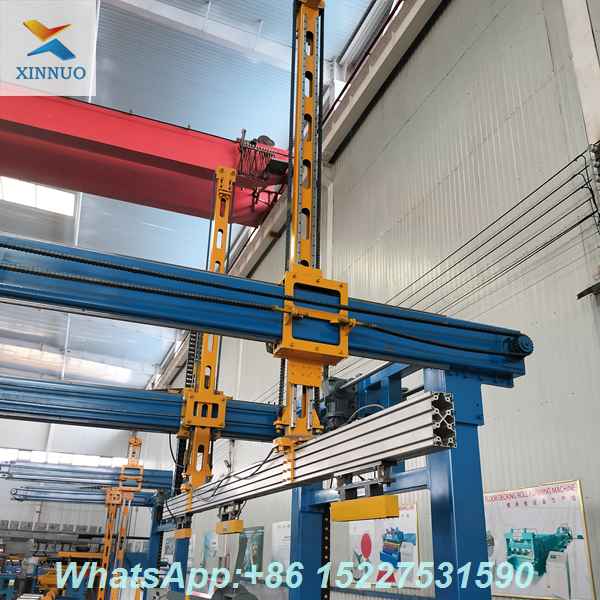

Automatic Purlin Stacking Machine for C/Z Steel Profiles – High-Efficiency Palletizer for Roll Forming Production Lines

The Automatic Purlin Stacking Machine is a critical downstream component designed to complement high-speed roll forming machines. Engineered for steel structure manufacturers, this palletizer automatically collects, aligns, and stacks C/Z purlins, steel decking, and other cold-formed profiles into neat, secure bundles. By eliminating manual stacking, it significantly reduces labor costs, minimizes product damage, and ensures consistent bundle quality for efficient packaging and transportation.

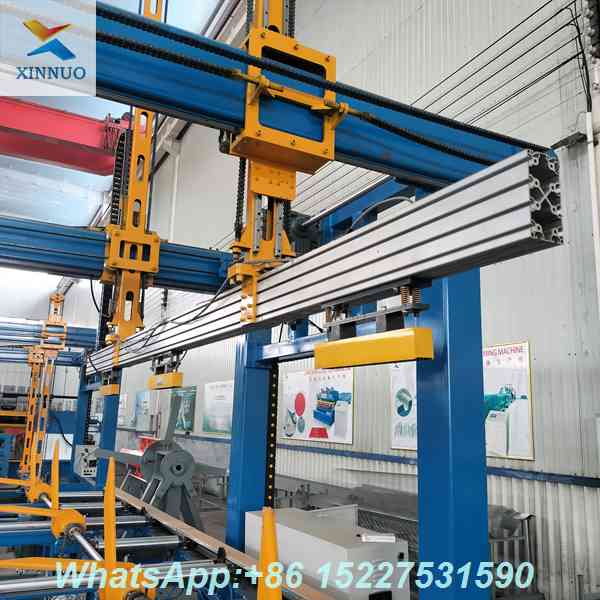

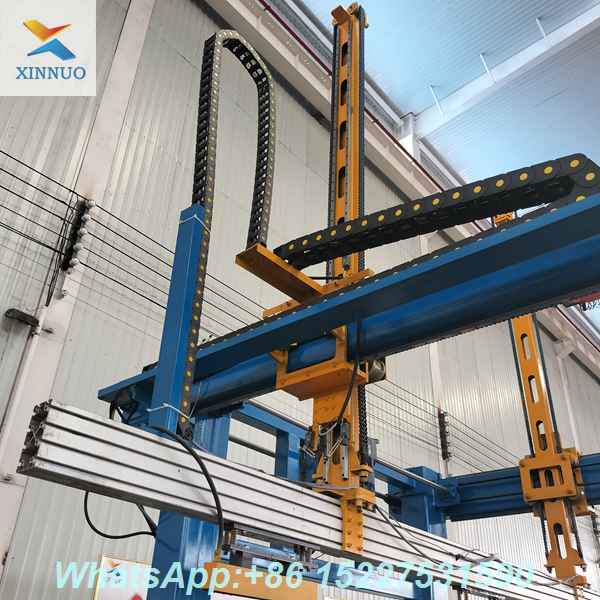

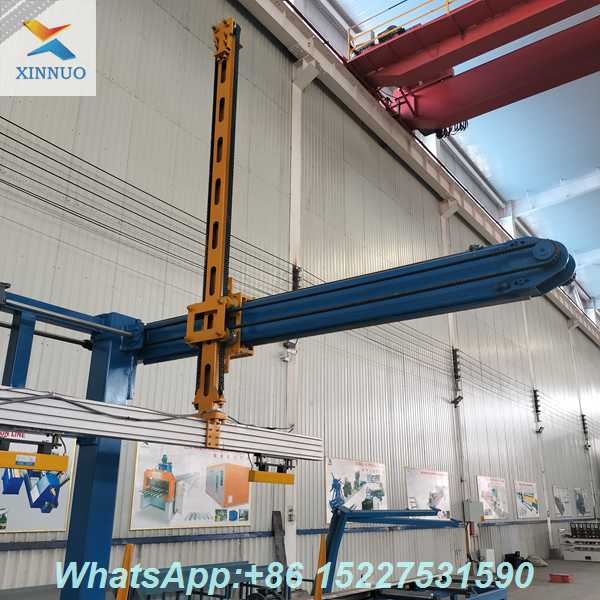

Built for heavy-duty industrial environments, this machine features a robust steel frame and precision-guided servo motors to handle long, heavy purlins with ease. The intelligent PLC control system allows operators to preset stacking parameters (e.g., bundle height, count, and alignment) via an intuitive touchscreen. The servo-driven stacking arm ensures each layer is placed with ±1mm accuracy, preventing misalignment and ensuring stable bundles. Optional automatic strapping or wrapping units can be integrated to further streamline the packaging process.



With a stacking speed of up to 30 bundles per hour, this machine keeps pace with modern roll forming lines producing at 15–25 meters per minute. Its adjustable stacking height (up to 1200mm) accommodates varying bundle sizes, while the customizable width (up to 300mm) supports a wide range of purlin profiles. The machine’s compact footprint (4000×1800×1500mm) allows easy integration into existing production lines without requiring extensive factory modifications.



In the competitive steel construction industry, automation is key to reducing operational costs and improving product consistency. This purlin stacker addresses the growing demand for labor-saving solutions, particularly in regions facing skilled labor shortages. Its compatibility with various purlin profiles makes it ideal for manufacturers serving diverse markets, from residential housing to large-scale industrial projects. The machine’s durability and low maintenance requirements ensure long-term reliability, while its CE-compliant safety features protect operators in high-speed production environments.





Constructed with industrial-grade components, including Schneider electric parts and high-precision sensors, this machine is built to withstand continuous operation. All electrical and mechanical systems are designed for easy maintenance, with accessible service points and clear diagnostic indicators. Comprehensive documentation, video tutorials, and 24/7 remote technical support are provided to ensure rapid deployment and minimal downtime. Backed by a 1-year warranty and global spare parts availability, it represents a smart investment for manufacturers seeking to enhance productivity and competitiveness.
