1. Fully Automatic Linked Operation: It can be directly connected to the discharge port of CZ purlin roll forming machine, realizing full-process automation of forming, conveying, palletizing and counting without manual intervention. It synchronously matches the production speed of the host machine without production stagnation;

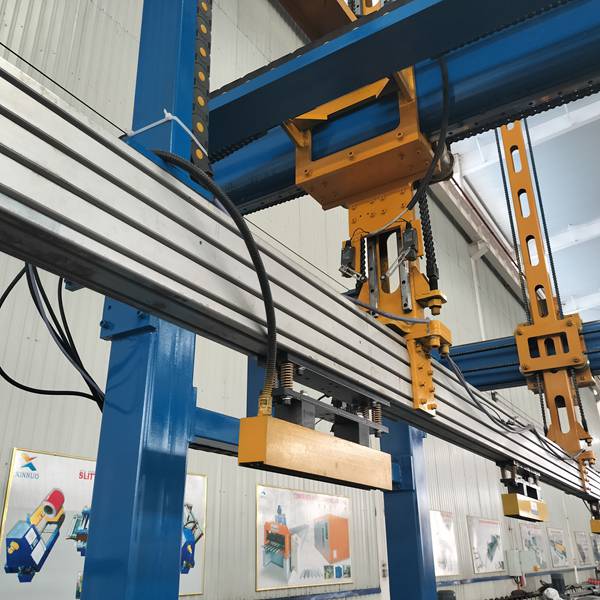

2. Precision Stacking & Deformation Prevention: Adopts flexible clamping and positioning conveying structure, with customized stacking brackets for the special-shaped structure of C/Z steel, ensuring neat and uniform profile stacking, avoiding profile distortion, surface scratches and corner bumps, and guaranteeing the qualified rate of finished products;
3. Intelligent Counting & Regulation: Equipped with PLC intelligent control system and high-definition photoelectric counting sensor, which can preset stacking quantity, stack height and palletizing speed. Parameters are set with one key, data is displayed in real time, and the operation is simple and easy to understand;
4. Sturdy and Durable Body: The whole machine is welded with thickened national standard steel plates and treated with stress relief, featuring strong load-bearing capacity, no shaking or deformation during long-term high-speed continuous operation. Core electrical components adopt internationally renowned brands, with extremely low equipment failure rate;
5. Wide Range of Adaptability: Supports multi-specification adaptation of conventional C steel, Z steel and interchangeable CZ purlins, and palletizing specifications can be customized according to profile width, thickness and length, suitable for different models of purlin roll forming production lines;
6. Complete Safety Protection: Equipped with fully enclosed safety guards, emergency stop buttons and overload protection devices, eliminating potential production safety hazards, complying with international industrial equipment safety standards, and ensuring safer operation and maintenance.
Technical Highlights
The equipment adopts variable frequency speed regulation drive, and the palletizing speed can be flexibly adjusted to meet different production capacity requirements; The lifting mechanism offers optional hydraulic/mechanical dual modes, with stable operation and low noise; The discharge end is equipped with a buffer receiving device to avoid impact deformation of profiles when landing; Supports two working modes: single stack and continuous palletizing, which can be freely switched according to production needs, suitable for diversified production of small and large batches; The whole machine adopts modular design, with convenient installation and commissioning, simple later maintenance, low replacement cost of wearing parts, and extremely high cost performance for long-term use.
Application Scope
Widely matched with various full-automatic CZ purlin roll forming machines, suitable for steel structure workshop construction, prefabricated building component production, roof and wall purlin processing, steel structure engineering supporting, hardware and building materials processing and other fields. It can process conventional C steel, Z steel, interchangeable CZ purlins and other cold-formed profiles, and is an indispensable automatic supporting equipment for modern steel structure production lines.
