Overview: The Backbone of Efficient Roll Forming

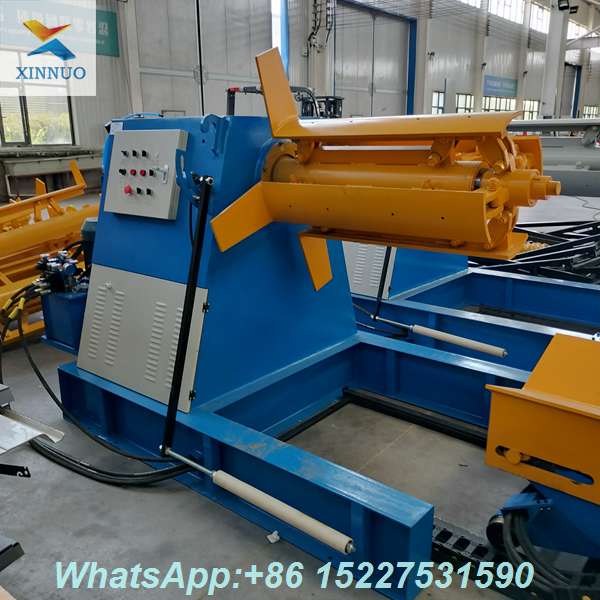

In the high-speed world of metal roofing and wall panel manufacturing, the efficiency of your production line is only as strong as its starting point. Introducing our 5-Ton Hydraulic Decoiler with Loading Cart, a robust solution designed specifically for heavy-duty roll forming applications. This machine serves as the critical first step in the production process, ensuring a continuous, stable, and tension-controlled feed of steel coils into your roll forming machine. Unlike standard manual loaders, this integrated system combines a powerful hydraulic unwinder with a motorized loading trolley, significantly reducing labor intensity and minimizing downtime during coil changes.
Heavy-Duty Construction for Industrial Demands

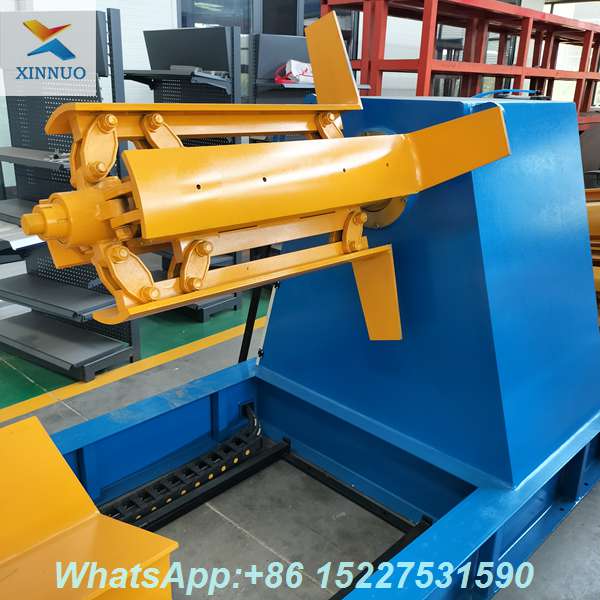

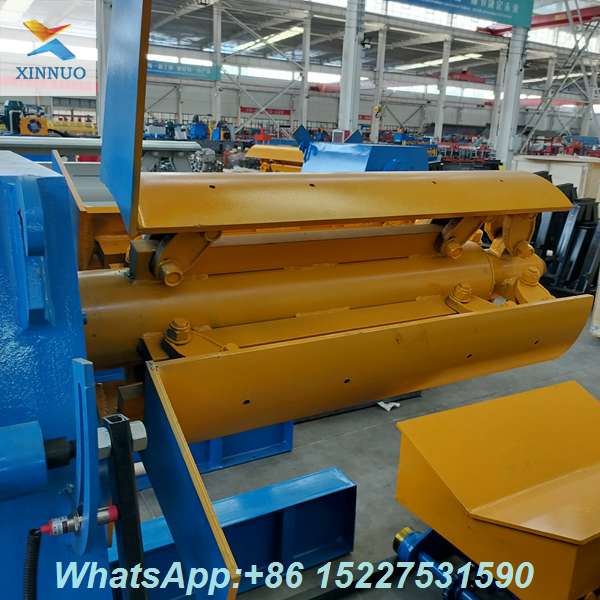

Built to withstand the rigors of 24/7 industrial operation, the main body of the decoiler is fabricated from thick, high-tensile steel plates. The distinctive blue and yellow color scheme not only enhances visibility for safety but also signifies our commitment to industrial-grade durability. The cantilevered mandrel design allows for easy loading and unloading of wide coils, while the hydraulic expansion mechanism ensures a tight grip on the coil ID (ranging from 450mm to 550mm), preventing slippage even under high tension. This stability is crucial for maintaining the precision of the downstream roll forming process, preventing scratches or deformations on sensitive color-coated or galvanized steel sheets.
Integrated Motorized Loading Cart: Efficiency Redefined

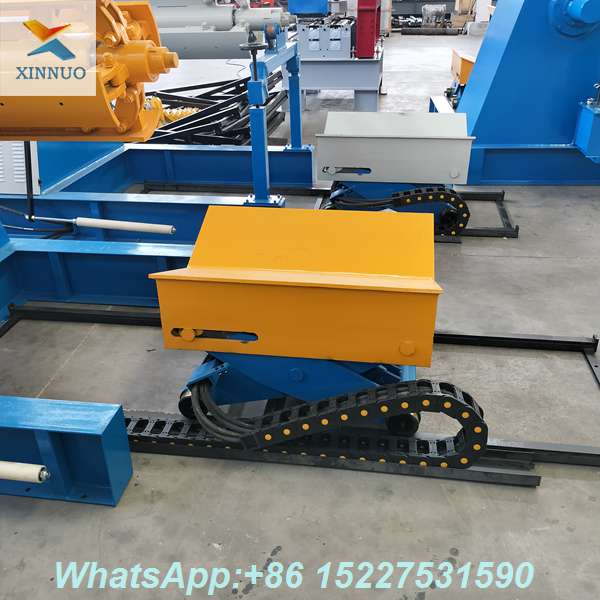

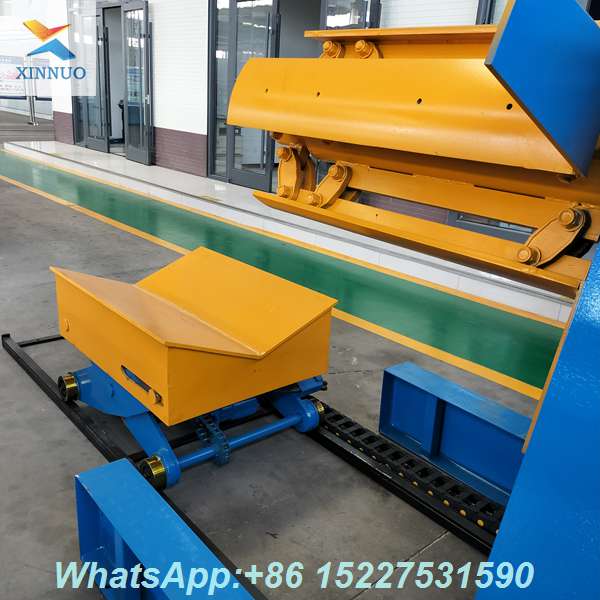

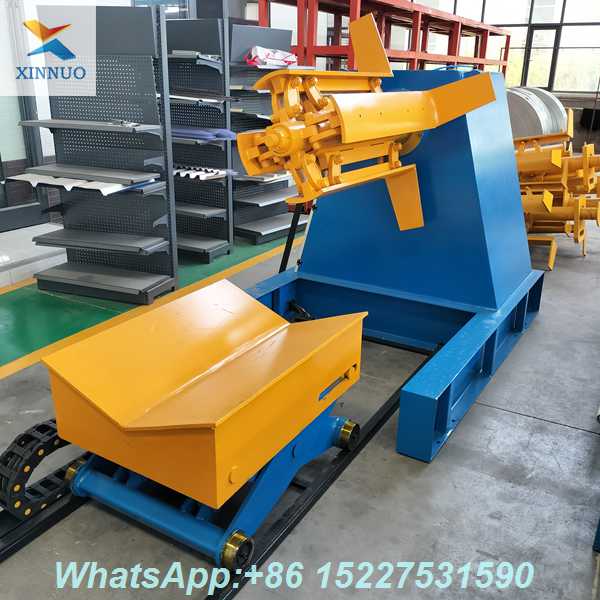

The standout feature of this system, clearly visible in the product image, is the motorized loading cart. Moving a 5-ton steel coil manually is dangerous and inefficient. Our solution features a chain-driven trolley that runs on a fixed track directly aligned with the decoiler's centerline.
- Safety First: Operators can load heavy coils onto the cart at floor level and transport them safely to the machine without overhead cranes for every single change.
- Precision Alignment: The track system ensures the coil is perfectly centered before being pushed onto the mandrel, reducing setup time from minutes to seconds.
- Hydraulic Lifting: The cart utilizes a hydraulic cylinder to lift the coil to the exact height of the decoiler spindle, making the "push-on" process seamless.
Advanced Hydraulic Control System

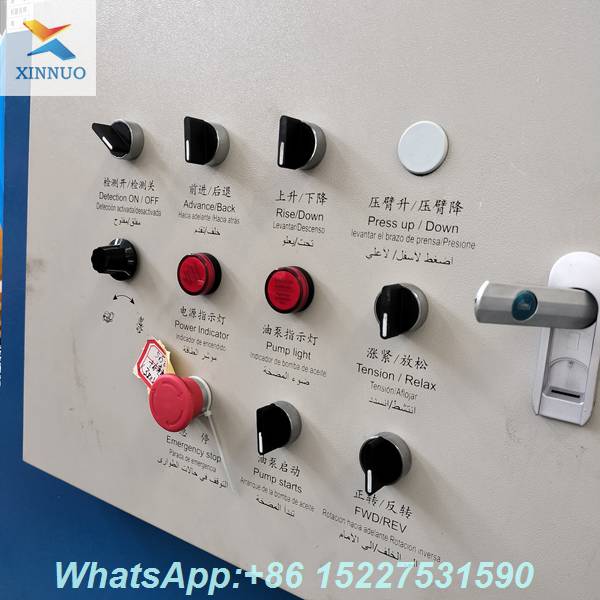

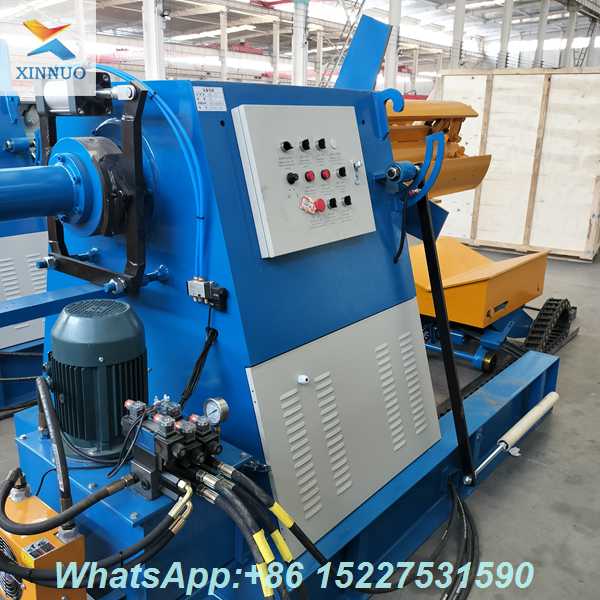

The machine is powered by an independent hydraulic station (visible on the side), which controls both the expansion of the mandrel and the braking system. The braking mechanism is vital; it provides back-tension to the coil as it unwinds. This prevents the "looping" of material that can cause jams or damage to the delicate rollers of your roll former. The hydraulic system is designed for low noise and high responsiveness, ensuring that the decoiler reacts instantly to speed changes in the main production line.
Versatility Across Markets
This 5-ton capacity makes it the ideal partner for a wide range of roll forming profiles, including:
- Roofing Sheets: Trapezoidal, corrugated, and tile profiles.
- Wall Cladding: Wide panels requiring stable feeding.
- Structural Components: C/Z purlins and highway guardrails where material thickness varies.
Why Choose This Decoiler?
Investing in this Hydraulic Decoiler with Loading Cart is an investment in total line efficiency. By automating the heaviest part of the operator's job, you reduce fatigue and increase safety. The robust build ensures longevity, while the precise hydraulic control guarantees that your expensive roll forming tooling is fed with material that is flat, tensioned, and ready to be formed. Whether you are producing standard galvanized sheets or pre-painted aluminum, this machine provides the reliable foundation your factory needs to meet high-volume targets.
