Product Overview

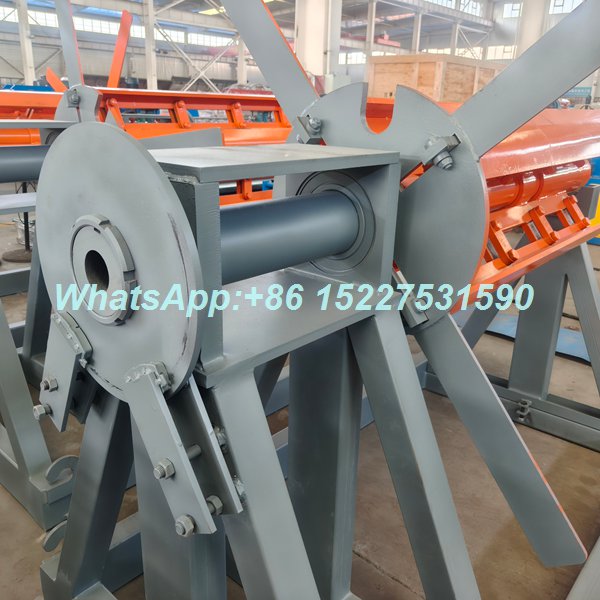

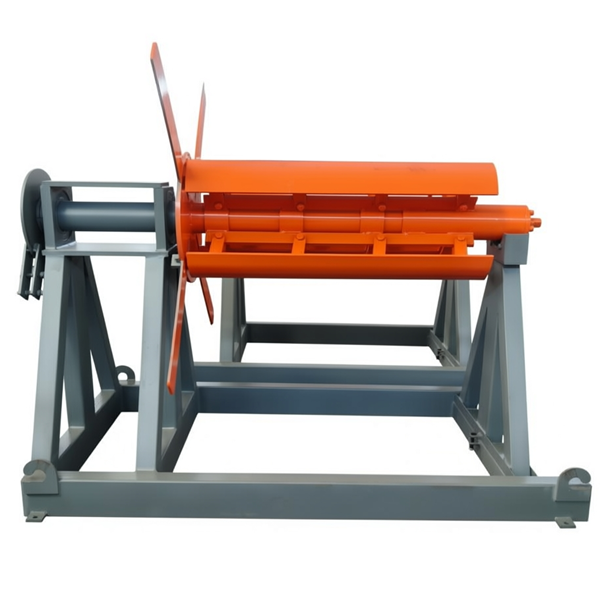

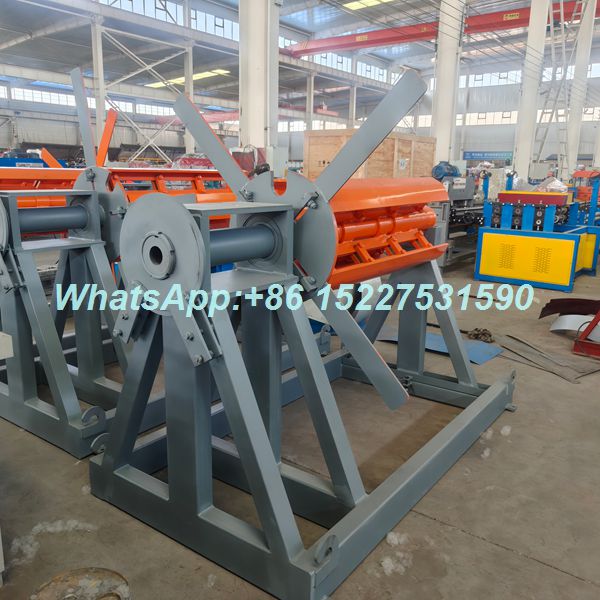

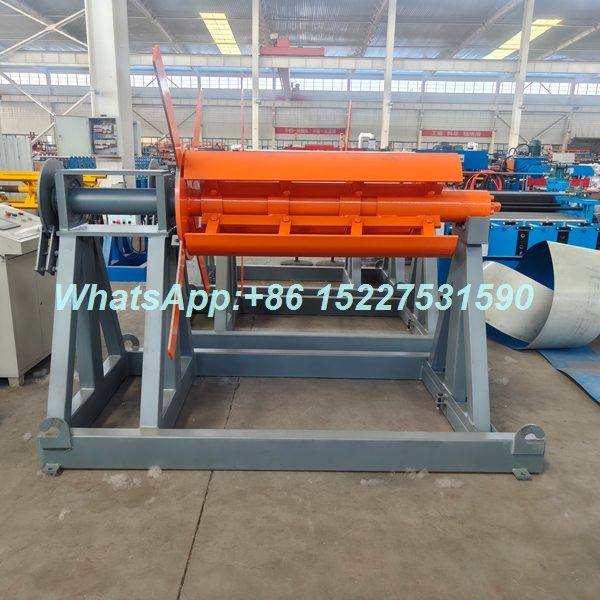

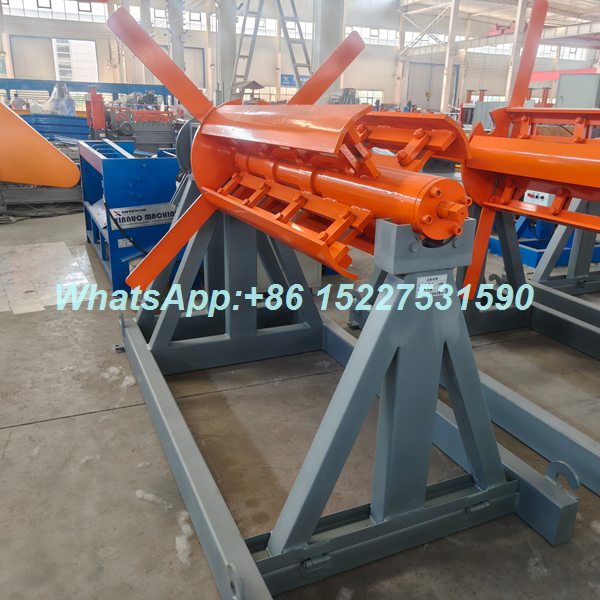

The 10 Ton Manual Steel Coil Uncoiler (also known as a Decoiler or Pay-off Reel) is an essential auxiliary machine designed for cold roll forming production lines. Engineered with high-strength structural steel, this machine provides stable support for metal coils weighing up to 10,000 kg (10 Metric Tons). Unlike hydraulic models, this manual uncoiler offers a simple, maintenance-free operation, making it an ideal choice for small to medium-sized workshops looking for a durable metal sheet feeding solution.
Key Features & Advantages
- High Load Capacity: Capable of supporting a maximum coil weight of 10 tons, suitable for heavy-gauge steel processing.

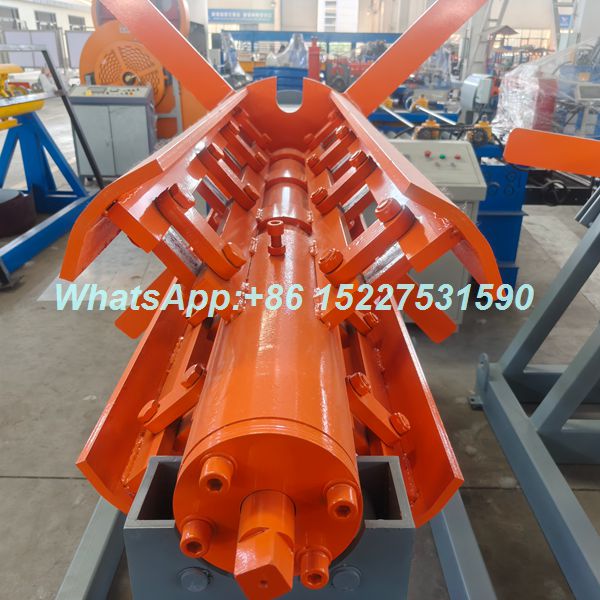

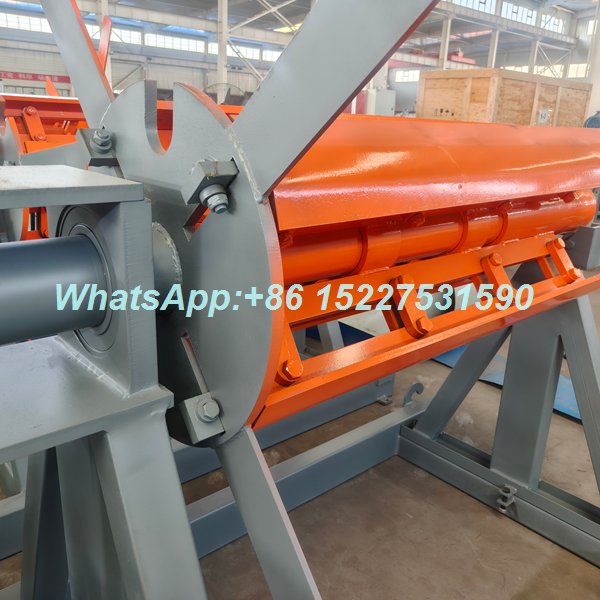

- Adjustable Expansion Range: The reel drum diameter is adjustable (typically 450mm-650mm or customized) to fit different steel coil inner diameters (ID).
- Robust A-Frame Structure: Built with thick steel plates and reinforced ribs to withstand high torque and prevent deformation during operation.
- Manual Brake System: Equipped with a mechanical braking device (belt or disc brake) to create back tension, preventing the coil from unraveling loosely and ensuring smooth feeding into the leveler or roll former.
- Versatile Compatibility: Perfectly matches with various roll forming machines, slitting lines, and cut-to-length lines.
- Easy Operation: Simple manual expansion and rotation mechanism reduces the need for complex electrical controls, lowering failure rates.
Technical Specifications
| Paramete |
Specification |
| Model |
10T Manual Uncoiler |
| Max. Coil Weight |
10,000 Kgs (10 Tons) |
| Max. Coil Width |
1250mm / 1500mm (Customizable) |
| Coil Inner Diameter (ID) |
450mm - 650mm (Adjustable) |
| Reel Drum Diameter |
φ380mm - φ550mm (Expandable) |
| Expansion Method |
Manual Screw / Wedge Block Type |
| Main Motor Power |
None (Manual Rotation) or Optional Motor |
| Machine Weight |
Approx. 1800 - 2200 Kgs |
| Applicable Material |
GI, GL, PPGI, Stainless Steel, Aluminum |
Application Areas
This industrial coil handling equipment is widely used in the manufacturing of:
- Roofing and wall panel sheets
- C/Z purlin roll forming lines
- Downspout and gutter machines
- Steel pipe and tube mills
- Metal shelving and rack production
