Product Overview
This

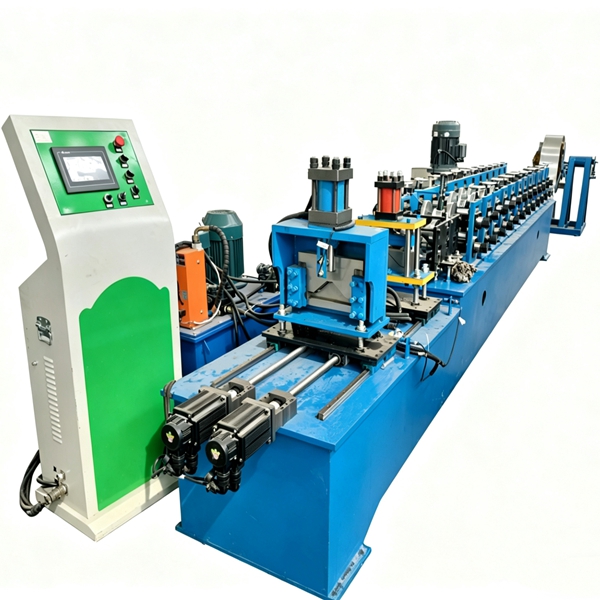

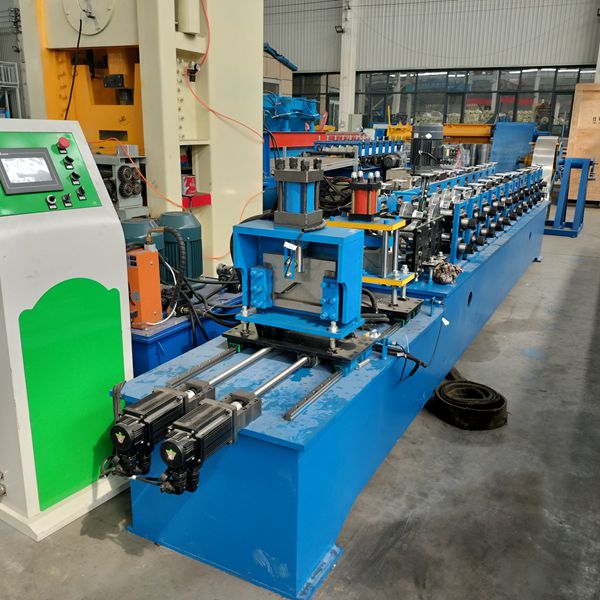

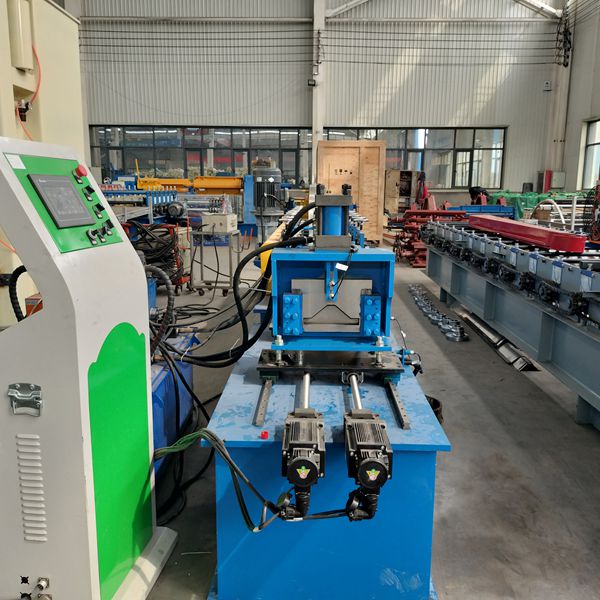

Roof Ridge Cap Roll Forming Machine is professional cold roll forming equipment specially designed for producing V-shaped roof ridge caps with bilateral waterproof drip flanges.
Adopts optimized multi-station roll forming process and heavy-duty hydraulic vertical cutting system (same as picture structure), realizes fully automatic continuous production from decoiling, feeding guide, roll forming to fixed-length hydraulic cutting. The finished ridge cap has standard inverted V roof ridge structure, excellent waterproof sealing performance, stable shape and high dimensional accuracy. It is the perfect matching accessory machine for trapezoidal roof sheet roll forming machines, widely used in global steel structure roofing construction projects.
Product Features

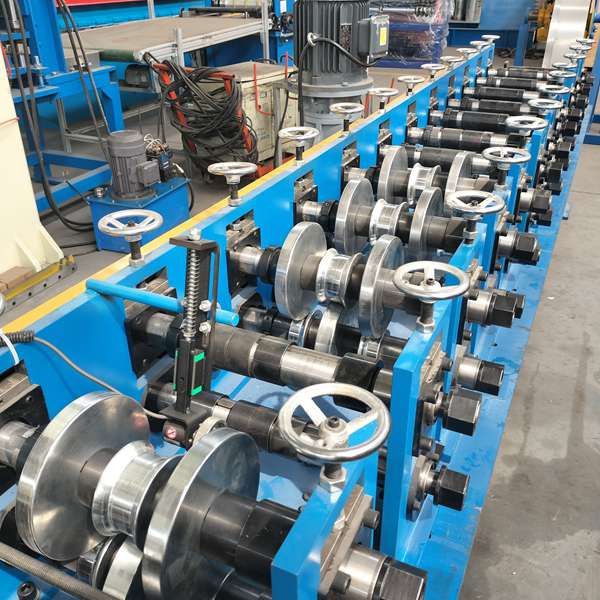

- Professional V Ridge Cap Profile Design
Custom forming rollers for V-type roof ridge cap with bilateral downward drip edges, perfectly match all kinds of trapezoidal color steel roof panels, greatly improve roof ridge waterproof and sealing performance.

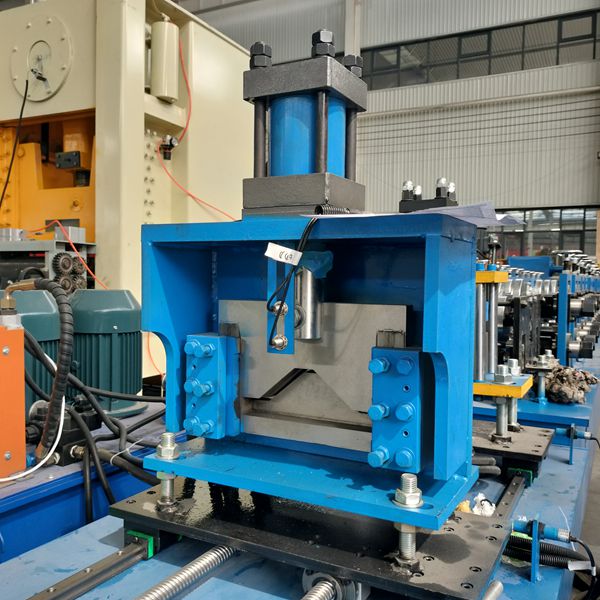

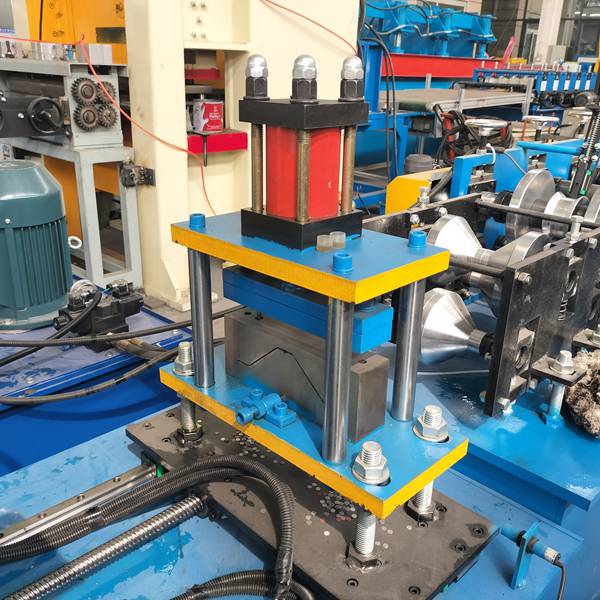

- Heavy Duty Hydraulic Vertical Cutting System (As Shown In Picture)
Integrated hydraulic cylinder cutting structure, stable cutting force, smooth burr-free incision, automatic fixed-length cutting, high cutting precision, compact structure and easy maintenance.
- Fully Automatic PLC Intelligent Control
Whole line controlled by PLC + touch screen, adjustable forming speed, automatic length setting, automatic counting, fault alarm, one-key start operation, effectively save labor cost.
- High Durable Core Components
Forming rollers adopt Cr12 quenched mold steel (HRC58-62 hardness), main shaft is 45# high strength solid steel, chain & gear transmission, stable operation, low noise and long service life.
- Two Optional Models Available
Fixed size model (333 type) & stepless adjustable width model (50-190mm), meet different project and roof tile requirements.
- Export Standard Configuration
CE certified safety structure, customizable voltage (380V/220V, 50Hz/60Hz), complete export documents, easy overseas installation & commissioning.
Application Fields
- Roof ridge waterproof sealing of industrial workshops & warehouses
- Prefabricated steel structure buildings, villas & residential houses
- Matching installation for trapezoidal color steel roof sheets
- Agricultural greenhouses, livestock farms & temporary mobile buildings
- Commercial building roof exterior decoration & renovation projects
Our Advantage
We are professional manufacturer of roll forming machines with more than 10 years export experience. This roof ridge cap machine is our mature hot-selling export model, stable quality, factory direct competitive price, strict pre-delivery test. We provide 1 year whole machine warranty, overseas remote technical support, installation guidance & after-sales service. Support customized profile shape, size, adjustable range and voltage according to customer requirements.
