Product Overview

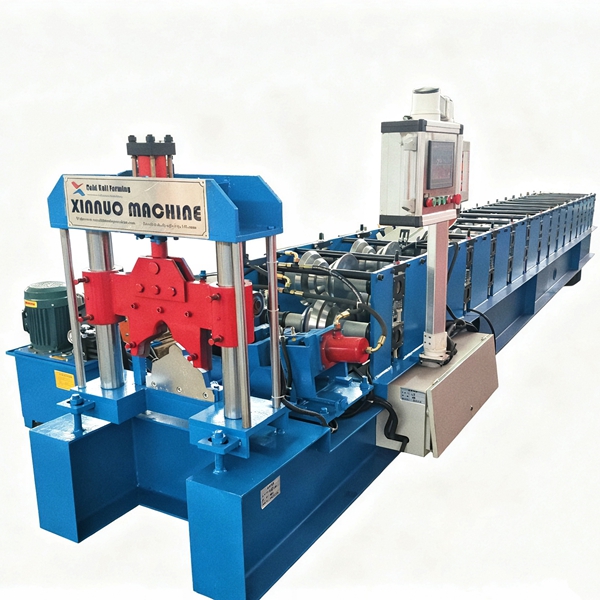

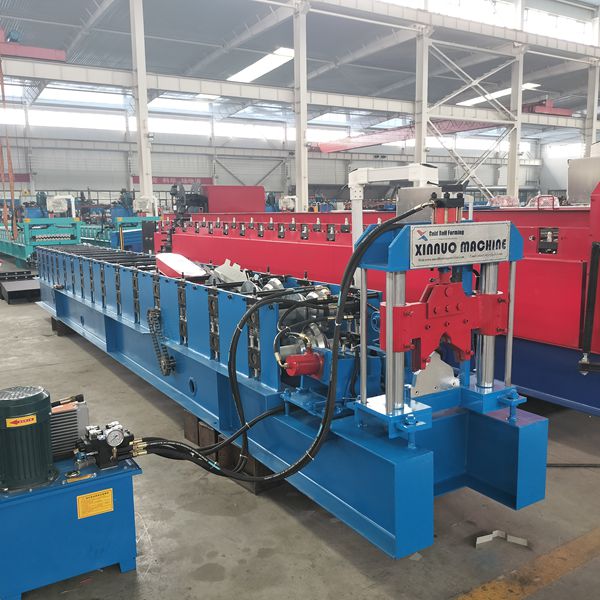

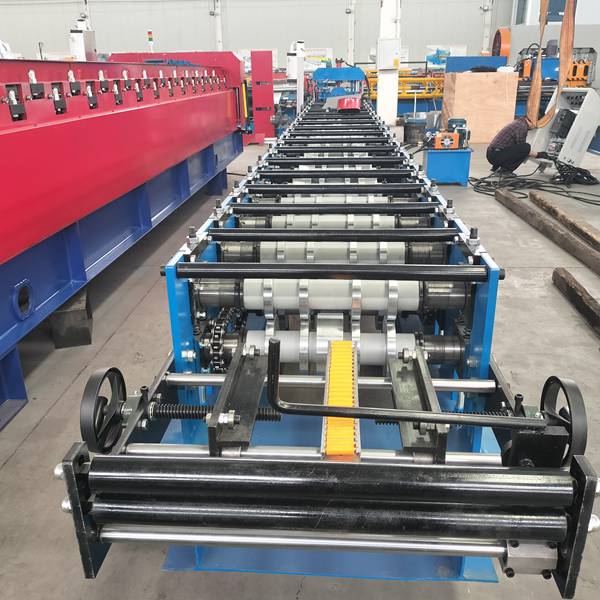

This 333 Ridge Tile Roll Forming Machine is a professional cold roll forming equipment specially designed for producing 333-type ridge tiles, which are essential accessories for roofing projects. It adopts advanced roll forming technology, integrating decoiling, feeding, forming, cutting and output into one, realizing fully automatic continuous production. The 333 ridge tiles produced by this machine have standard size, smooth surface, strong firmness and good waterproof performance, widely used in color steel tile roofs, prefabricated buildings, industrial workshops, residential houses and various roofing projects around the world.
Product Features
-
Specialized for 333 Ridge Tile: Customized forming rollers and mold for 333-type ridge tile, precise shaping, consistent product size, no deformation, perfectly matching the installation of various roofing tiles.
-
Fully Automatic Operation: Whole line is controlled by PLC and touch screen, from decoiling to finished product output, no manual intervention, high production efficiency, saving labor costs and reducing human errors.
-

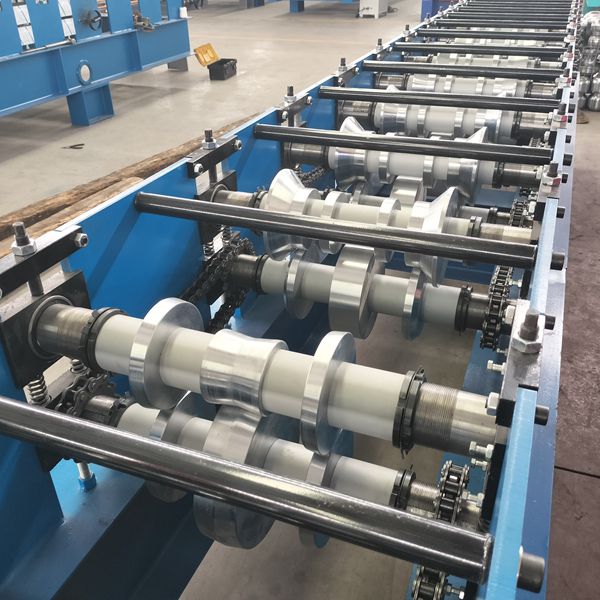

Durable & Stable Performance: Forming rollers are made of high-quality Cr12 mold steel, quenched and tempered to enhance hardness and wear resistance; main shaft adopts 45# high-strength steel, gear transmission, stable operation, low noise and long service life.
-
Flexible & Adjustable: The forming speed and cutting length can be freely set through the touch screen; it is suitable for different thicknesses of galvanized steel coils and color steel coils, meeting different customer needs.
-
Safety & Easy Maintenance: Equipped with emergency stop button, protective cover and fault alarm system, ensuring safe operation. The machine structure is simple, easy to disassemble, assemble and maintain, with low maintenance cost.
-
Export Standard Configuration: Designed in line with international export standards, compatible with global voltage (380V/220V, 50Hz/60Hz), complete export documents, easy installation and commissioning overseas.
Technical Parameters
|
Item
|
Specification
|
|
Machine Model
|
333 Ridge Tile Machine
|
|
Forming Rows/Stations
|
8-10 rows (optimized for 333 ridge tile)
|
|
Finished Product
|

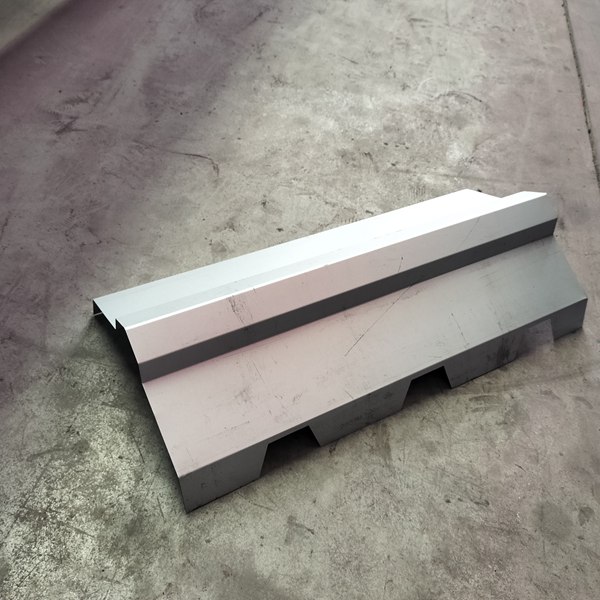

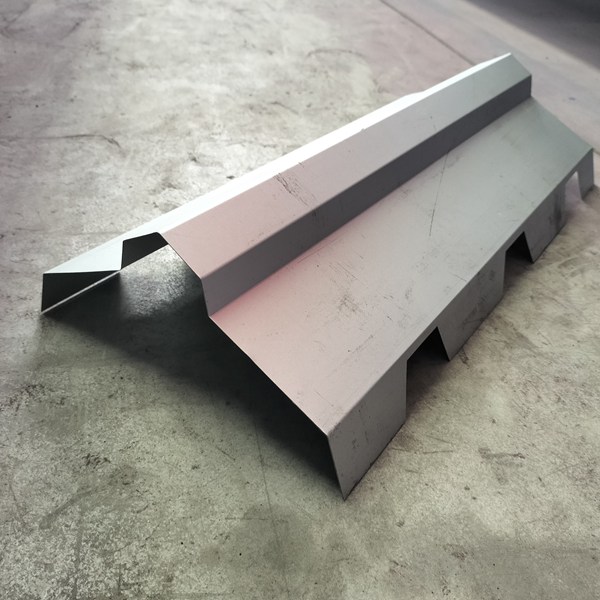

333-type Ridge Tile / Ridge Cap
|
|
Applicable Material
|
Galvanized Steel Coil (GI), Color Steel Coil, Cold Rolled Steel Sheet
|
|
Material Thickness
|
0.3–0.6mm
|
|
Forming Speed
|
10–25 m/min
|
|
Control System
|

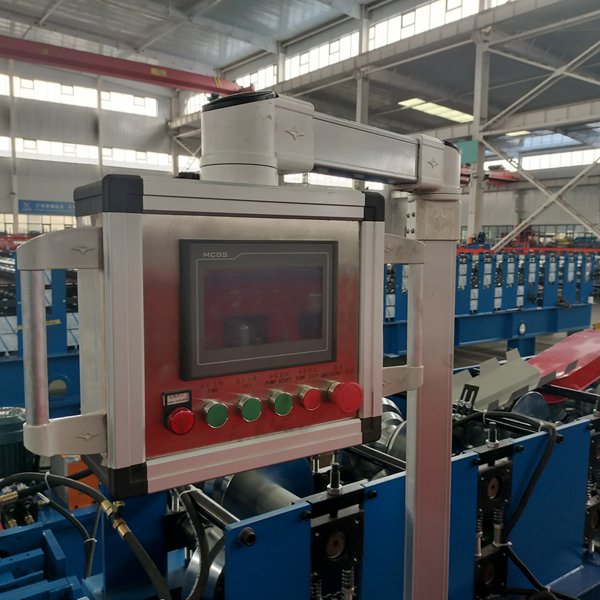

PLC + Touch Screen, Automatic Control
|
|
Cutting System
|

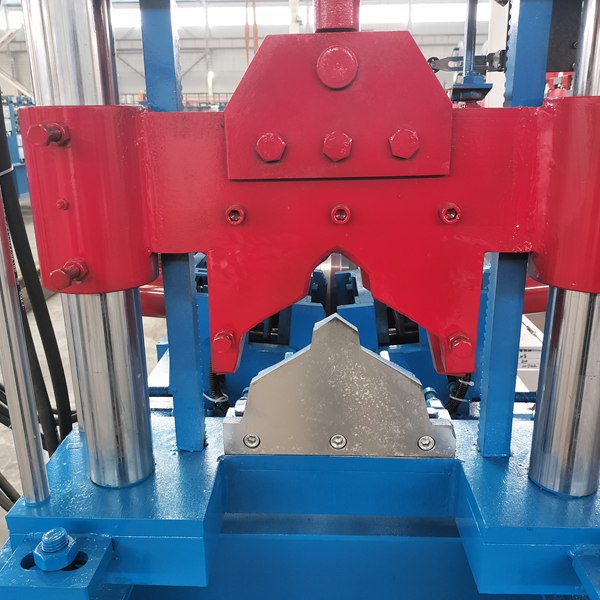

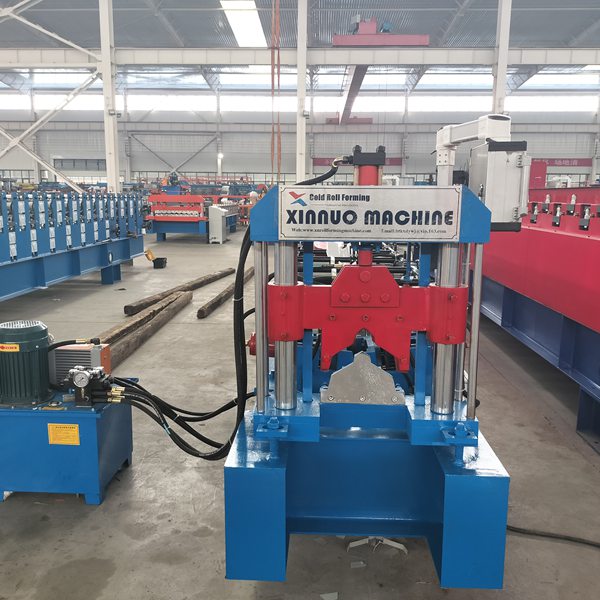

Hydraulic Automatic Cutting, No Burr, Smooth Cut
|
|
Cutting Accuracy
|
±0.5mm
|
|
Main Motor Power
|
5.5KW
|
|
Voltage
|
380V/3Phase/50Hz (Customizable 220V/60Hz)
|
|
Overall Dimension
|
About 5000×800×1200mm
|
|
Machine Weight
|
About 1.2Ton
|
|
Roller Material
|
Cr12 Mold Steel (Quenched, Hardness HRC58-62)
|
Application Fields
-
Roofing projects of residential houses, villas and commercial buildings
-
Industrial workshops, warehouses, factories and prefabricated buildings
-
Color steel tile roof, metal roof and composite roof decoration
-
Agricultural greenhouses, livestock houses and farm buildings
-
Temporary buildings, mobile homes and construction site roofing
Our Advantage
We are a professional manufacturer with over 30 years of experience in roll forming machines, focusing on the R&D and production of roofing tile equipment. The 333 Ridge Tile Roll Forming Machine is our mature export model, with stable quality, competitive price and perfect after-sales service. We provide one-year warranty, overseas technical support, on-site installation and commissioning, and technical training. All machines are strictly tested before delivery to ensure they meet international quality standards. We also support customized design according to customer’s specific requirements for ridge tile size, machine voltage and appearance.
