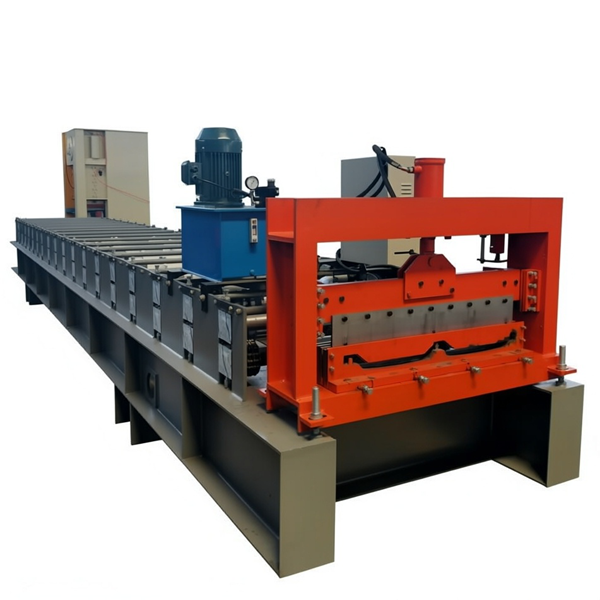

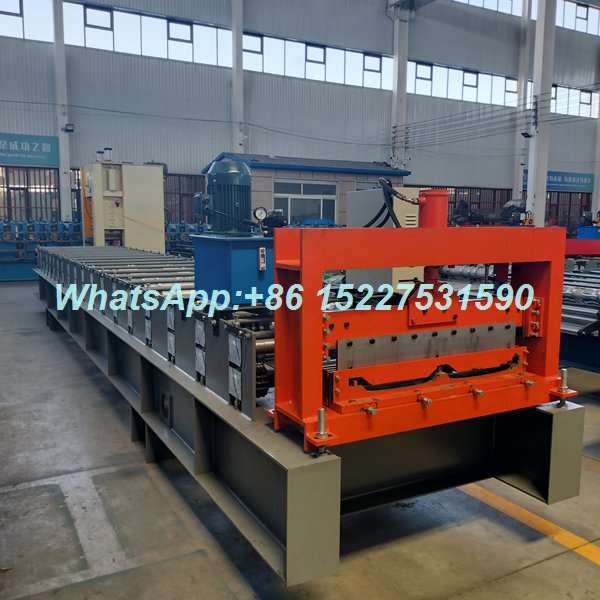

Product Overview: High-Efficiency 760 Standing Seam Roll Forming Machine
Our 760 Standing Seam Roll Forming Machine (also known as the Angle-Ridge Roof Panel Machine) is a premium solution designed for manufacturing high-quality metal roofing sheets. This machine is specifically engineered to produce the popular 760-type profile, which features a concealed clip system that allows for thermal expansion and contraction, making it ideal for large-span industrial plants, airports, and stadiums.
Equipped with a robust PLC control system and high-precision rollers, this color steel tile press machine ensures stable operation, precise cutting lengths, and durable panel output.
Key Features & Advantages

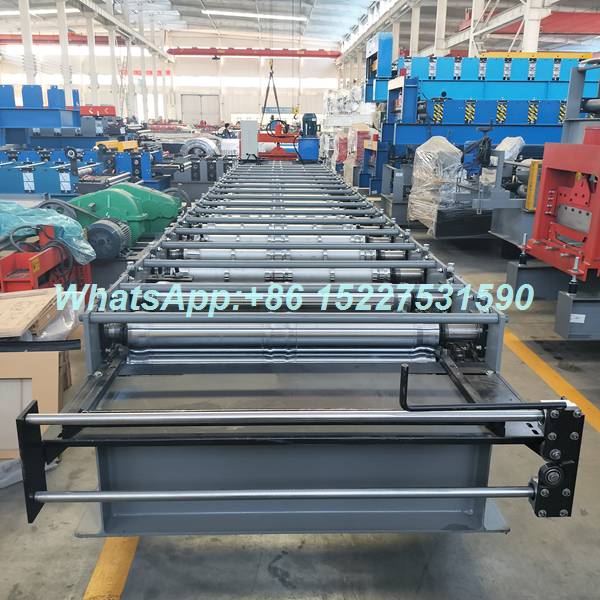

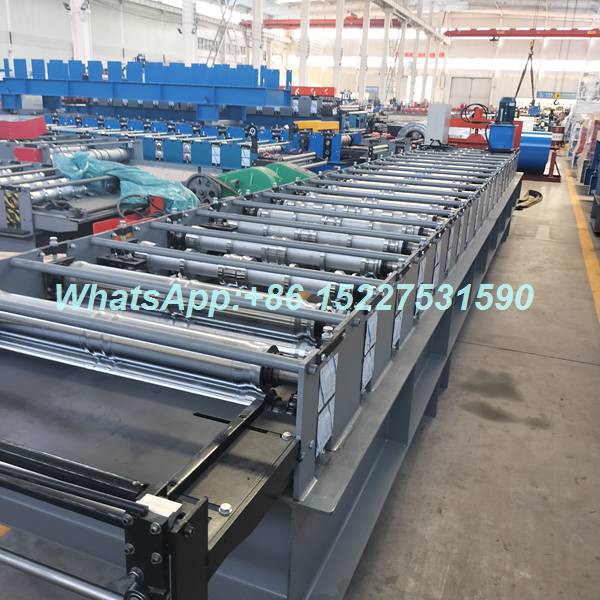

- Precision Forming: The roller stations are designed using COPRA software to ensure the 760 standing seam profile is formed smoothly without damaging the material coating.

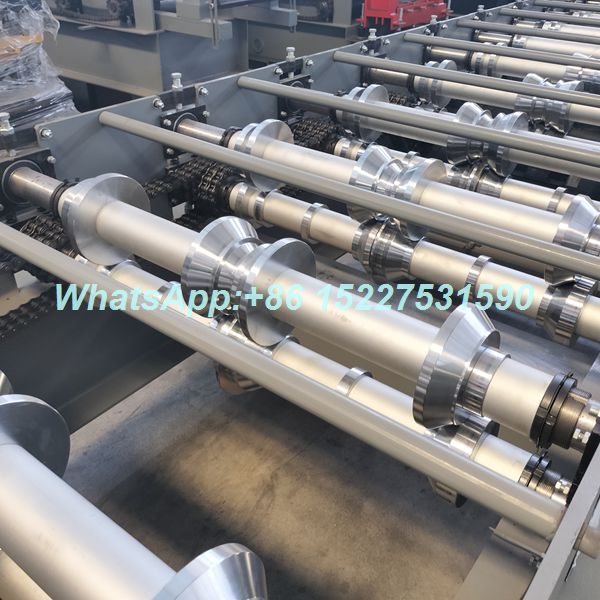

- Durable Roller Material: Rollers are made from GCr15 bearing steel with hard chrome plating (0.05mm thickness), guaranteeing a long lifespan and rust resistance.
- Smart Control System: Adopting a user-friendly PLC computer control system (Delta/Siemens/Mitsubishi optional) with a touch screen interface, allowing for easy input of production length and quantity.

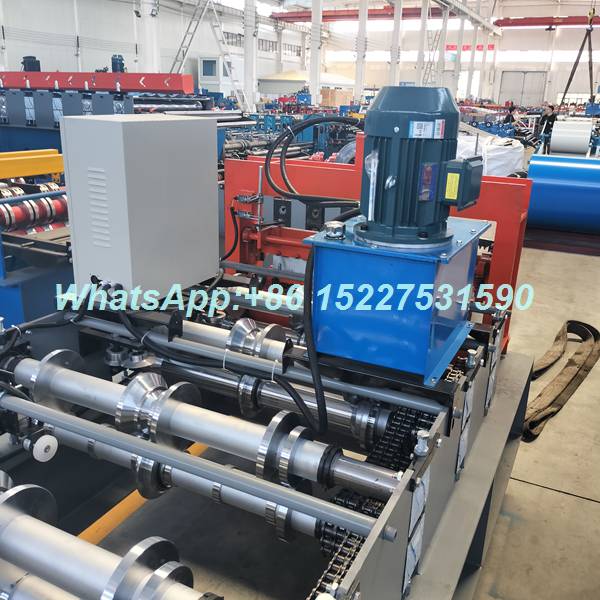

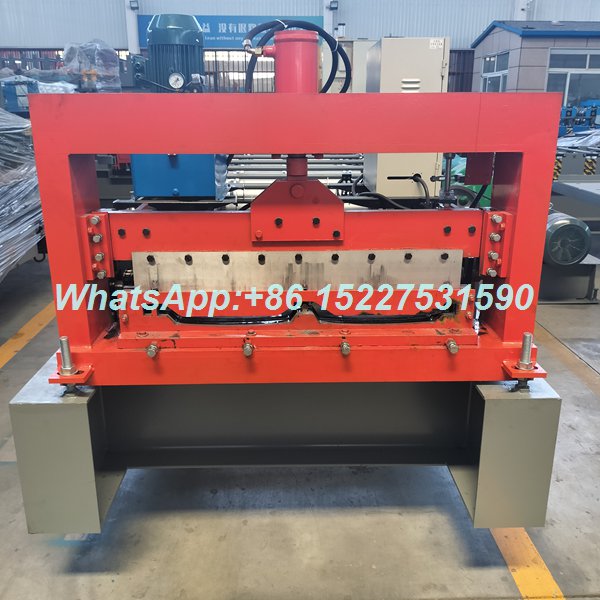

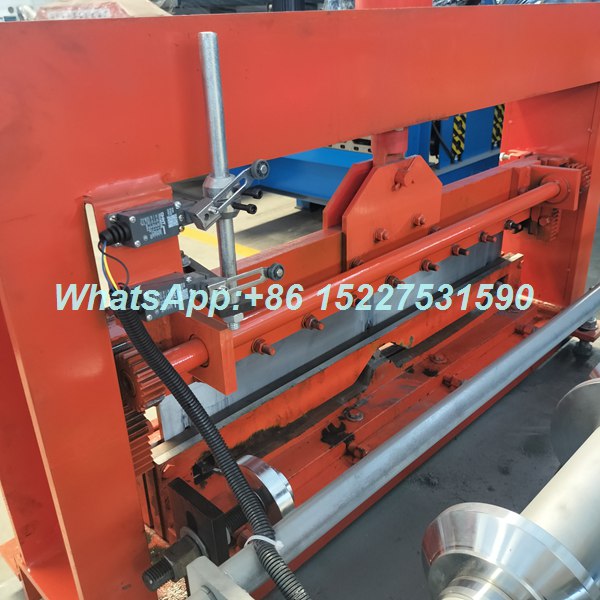

- Hydraulic Cutting System: Features a post-cutting hydraulic shear with Cr12Mov mold material (heat-treated to HRC58-62°), ensuring burr-free and flat cuts.

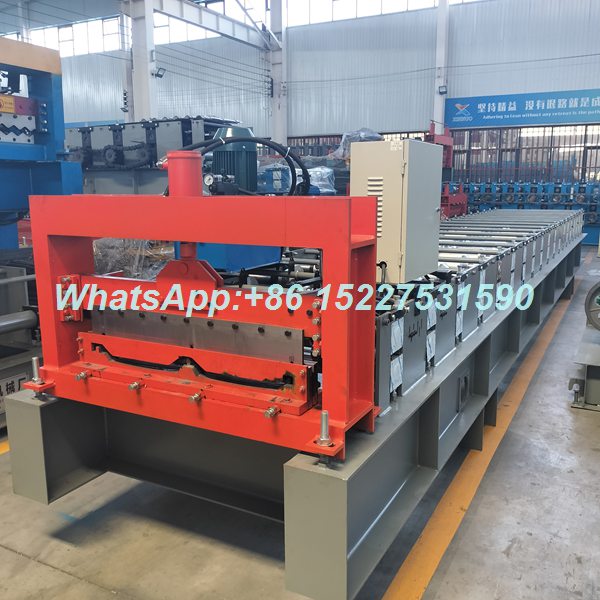

- Sturdy Main Frame: The machine body is constructed with H350 steel, providing excellent stability during high-speed operation.
Technical Specifications
| Parameter |
Specification |
| Suitable Material |
Color Steel Coil, Galvanized Steel, Aluminum Zinc |
| Material Thickness |
0.3mm - 0.8mm |
| Effective Width |
1000mm (feeds 1m coil) |
| Forming Speed |
10-15 m/min (adjustable) |
| Roller Stations |
Approx. 18-20 rows (depends on design) |
| Main Motor Power |
11KW - 15KW |
| Voltage |
380V/50Hz/3Phase (Customizable) |
| Control System |
PLC + Touch Screen |
Application Areas

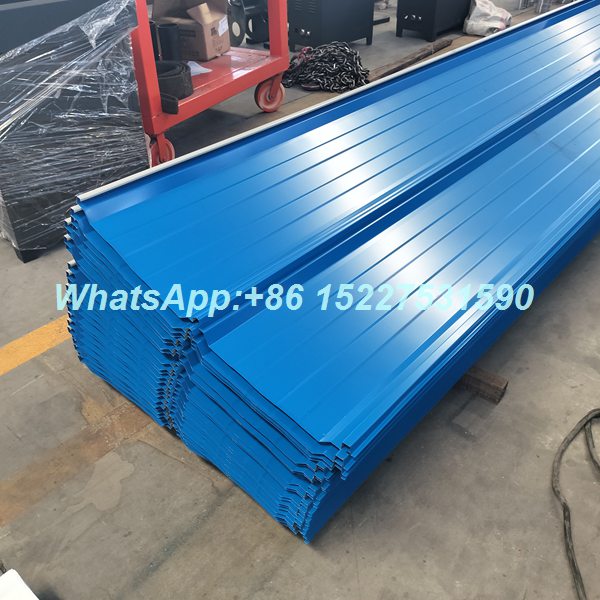

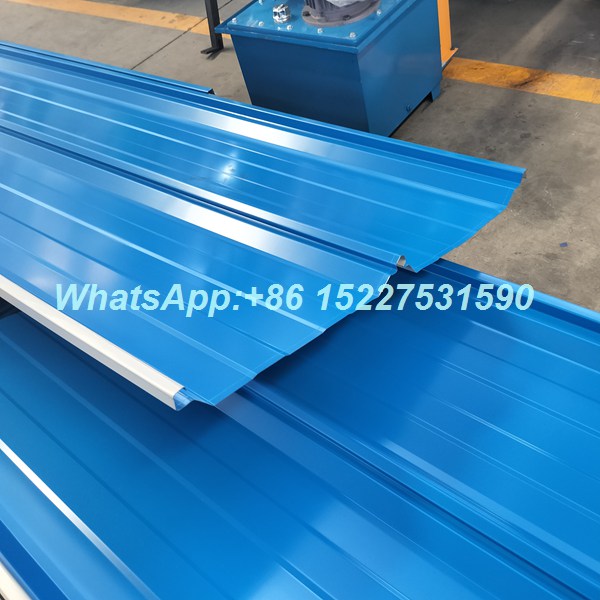

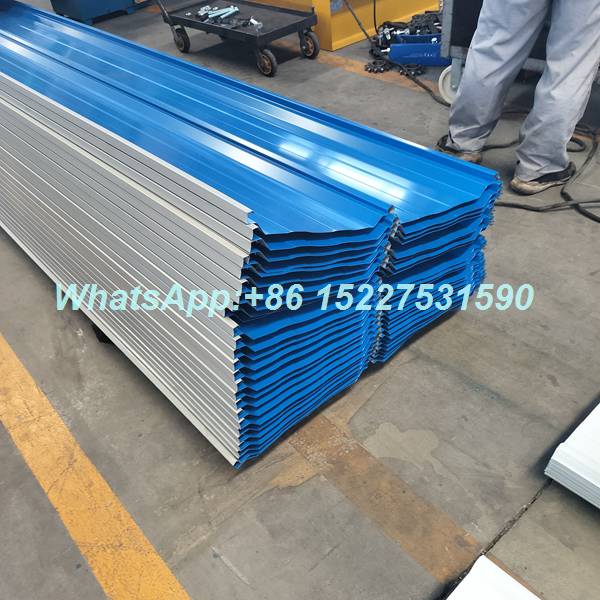

The 760 angle-ridge panels produced by this machine are widely used in:
- Large-scale steel structure workshops and warehouses.
- Airport terminals and exhibition centers.
- Gymnasiums and stadiums requiring waterproof and wind-resistant roofing.
Why Choose Our Machine?
As a professional manufacturer, we provide not just the roll forming equipment, but a complete solution. We offer free layout drawings for your workshop, installation videos, and lifetime technical support. Contact us today for a competitive quotation!
