Product Description

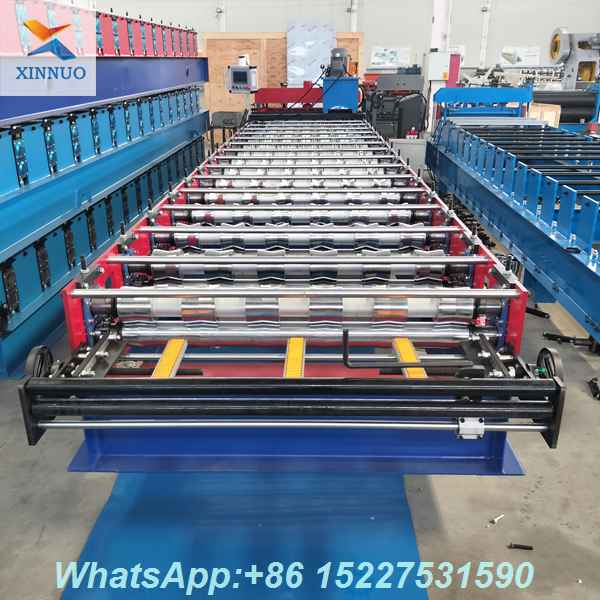

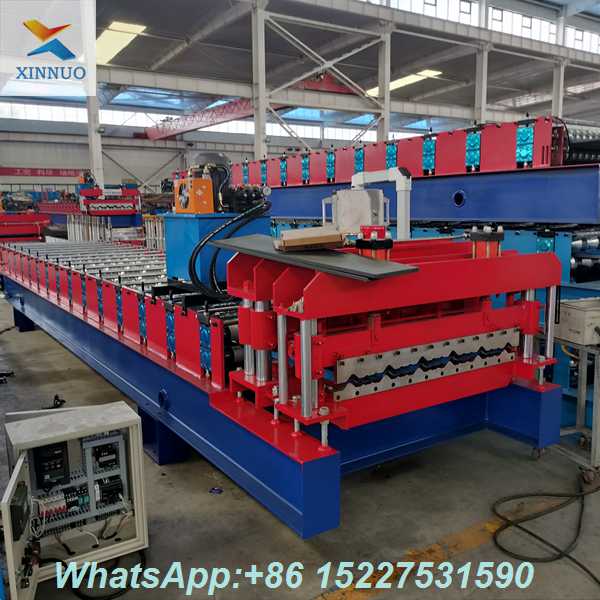

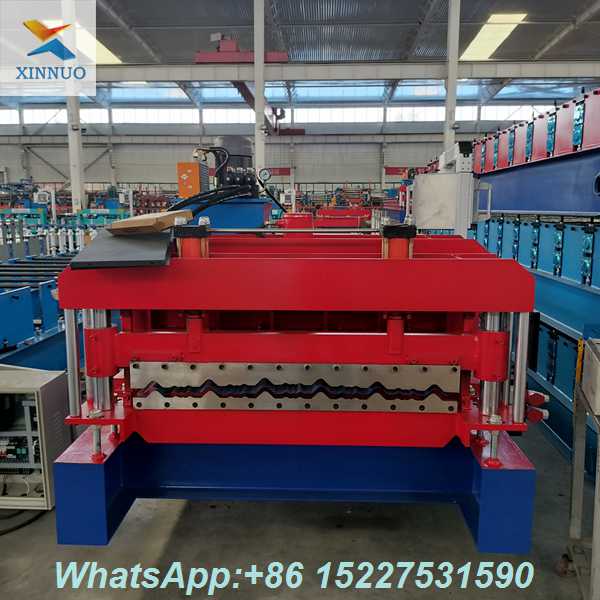

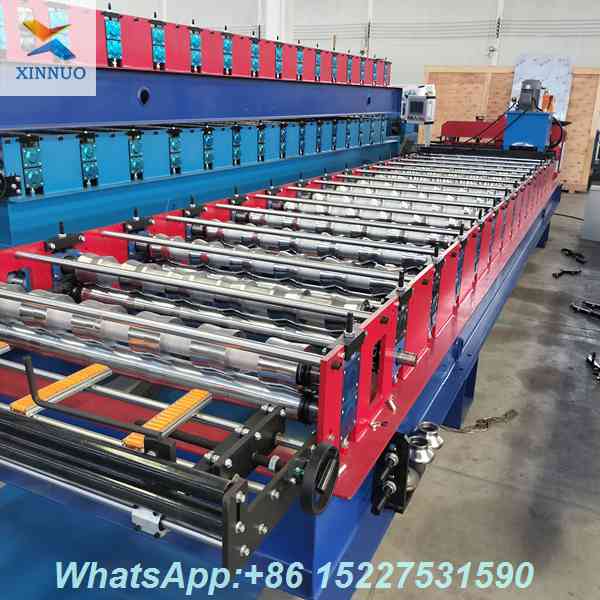

The 16-Row 980 Glazed Tile Roll Forming Machine is a premium cold roll forming solution designed for the high-volume production of elegant metal roof tiles. As the construction industry increasingly favors durable and aesthetically pleasing roofing materials, the 980 profile has become a top choice for residential villas, commercial buildings, and landscape projects. This machine is engineered to transform standard steel coils into beautiful, imitation resin-style glazed tiles with exceptional precision and surface quality.
Unlike standard 10-12 row machines, our 16-row configuration ensures a smoother, more gradual forming process. This advanced design is crucial for producing high-quality glazed tiles, as it prevents surface wrinkling, scratching, or deformation, resulting in a perfectly rounded and (full-bodied) tile appearance. Whether you are processing color-coated steel, aluminum, or imitation resin sheets, this machine delivers consistent, high-end roofing panels that meet international architectural standards.
Key Features & Advantages

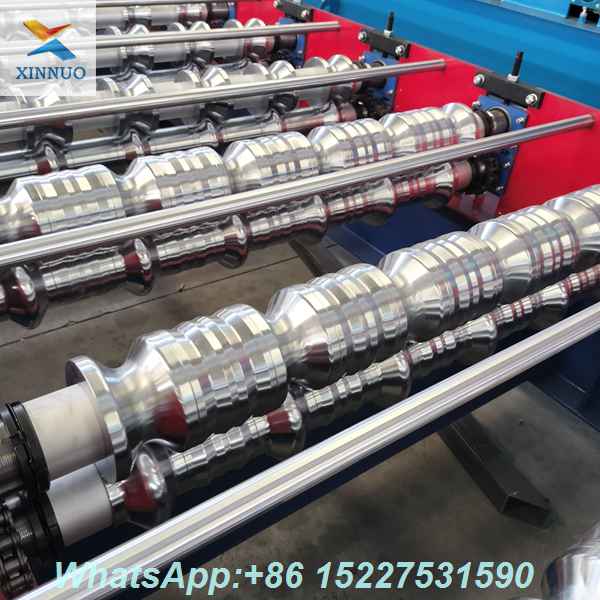

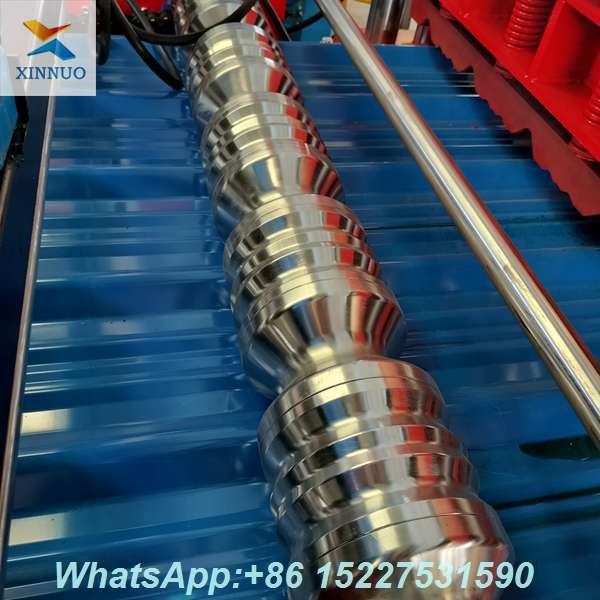

- Superior 16-Row Forming Technology: The extra roller stations provide a more precise and gentle forming process, ensuring the final tile has a smooth, flawless surface with perfect arc transitions. This is essential for high-end glazed tile production.
- Versatile Material Compatibility: This machine is not limited to steel. It is specially designed to handle a wide range of materials, including PPGI, galvanized steel, aluminum coils, and even imitation resin sheets, giving you maximum flexibility in your product line.
- Intelligent PLC Control System: Equipped with a user-friendly touch screen, the system allows for easy parameter setting, automatic length measurement, and batch counting. The high-precision encoder ensures cutting accuracy within ±1.0mm.

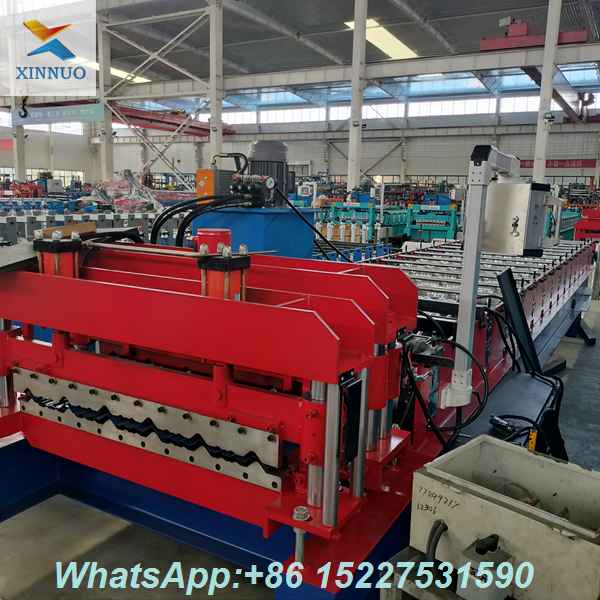

- Heavy-Duty Hydraulic Cutting: The post-cutting system uses a high-quality Cr12Mov blade with heat treatment, ensuring clean, burr-free cuts. The hydraulic station is designed for stable, long-term operation with minimal maintenance.
- Robust & Stable Structure: The main frame is constructed from heavy-duty welded steel, treated to eliminate internal stress. This ensures the machine remains stable and precise even during continuous, high-speed production.
- Customizable Solutions: We understand that every market has unique requirements. The 980 profile, roller specifications, and machine configuration can be fully customized to match your specific production needs and local building standards.
Why Choose Our 980 Glazed Tile Machine?
As a professional manufacturer of roll forming machinery, we are deeply committed to providing high-quality equipment that meets international standards. Our 16-Row 980 Glazed Tile Machine is the perfect solution for businesses looking to produce premium metal roofing tiles. By choosing our equipment, you are investing in a reliable, efficient, and cost-effective production line that will help you deliver superior building materials to your customers.
We provide comprehensive after-sales support, including installation guidance, operator training, and lifetime technical consultation. Contact us today to discuss your specific production needs and get a free quote for your next roll forming project!
