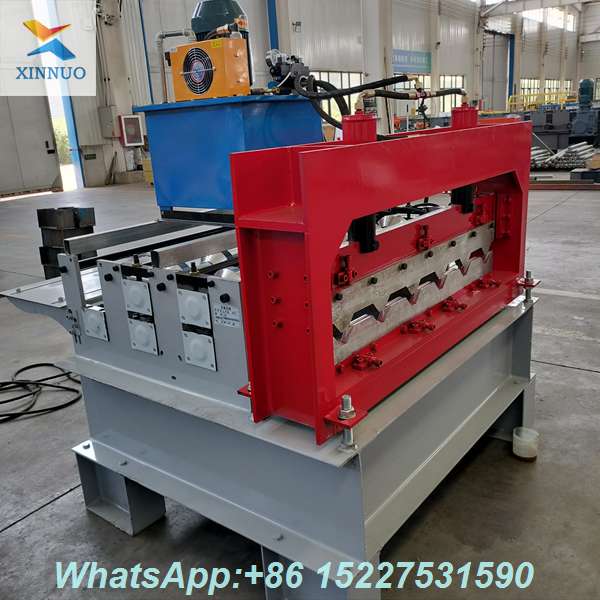

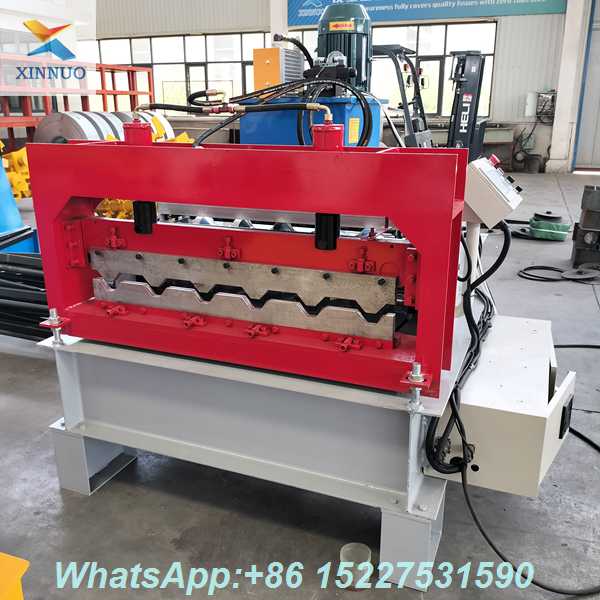

Revolutionize Metal Sheet Arching with Servo-Driven Precision
In the competitive roll forming industry, producing curved metal panels for roofs, walls, and steel structures demands accuracy, efficiency, and adaptability. Our Servo Motor Horizontal Arching Machine is engineered to meet these needs, offering a seamless solution for integrating arching capabilities into your existing roll forming production lines. Designed for manufacturers of metal roofing panels, wall cladding, and structural components, this machine combines advanced servo technology with robust mechanical design to deliver consistent, high-quality curved sheets—critical for projects requiring aesthetic appeal and structural integrity.
Key Features & Benefits
-
Servo-Powered Precision Arching
Equipped with a high-torque servo motor and precision ball screw transmission, the machine achieves ±0.1mm arching accuracy. This ensures uniform curvature across every sheet, eliminating defects like uneven bends or material distortion—common issues with traditional hydraulic arching systems. The servo system also allows for quick radius adjustments (via touchscreen HMI), enabling rapid changeovers between different project specifications without manual recalibration.
-
Horizontal Design for Space Efficiency

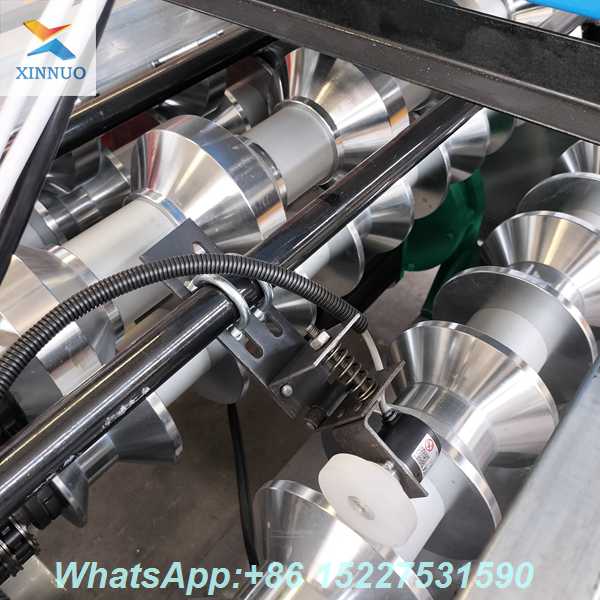

Unlike vertical arching machines that require significant overhead space, our horizontal layout integrates seamlessly into existing roll forming lines. The compact footprint (2800mm × 1800mm) minimizes floor space usage while maximizing workflow efficiency. Sheets are fed horizontally through the arching rollers, reducing the risk of surface scratches or deformation during processing—critical for maintaining the quality of pre-painted or coated materials.
-
Versatile Material Compatibility
Capable of processing galvanized steel, color-coated steel, and aluminum sheets (0.3mm–1.5mm thickness), this machine adapts to diverse material requirements. The adjustable roller pressure system ensures optimal grip and curvature for both thin, flexible sheets and thicker, rigid materials, making it ideal for producing everything from lightweight roofing panels to heavy-duty structural components.
-
Automated Integration with Roll Forming Lines

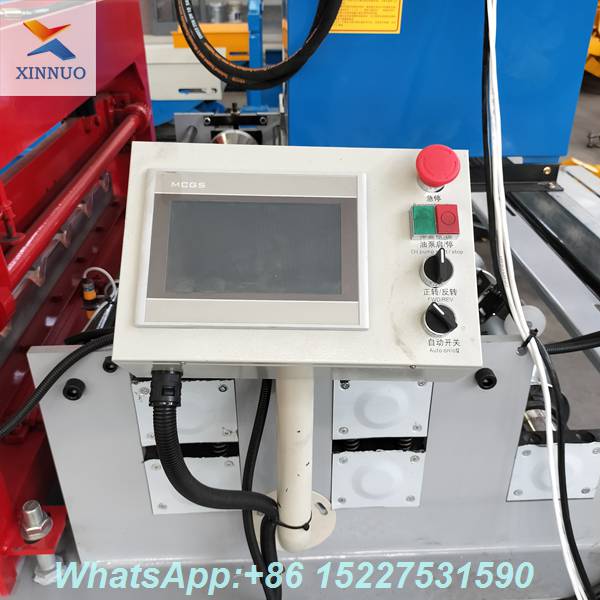

The machine features PLC-controlled synchronization with upstream roll forming equipment, enabling fully automated operation. Sheets exit the roll former and enter the arching unit without manual intervention, reducing labor costs and production downtime. The touchscreen HMI allows operators to set arching parameters (radius, speed, pressure) in seconds, while real-time monitoring displays production data (e.g., sheets processed, error alerts) for proactive maintenance.
-
Durability & Low Maintenance
Constructed from high-strength alloy steel, the machine’s frame and rollers resist wear and deformation even under continuous high-speed operation. The servo motor’s closed-loop control system minimizes energy consumption (up to 30% lower than hydraulic systems) and eliminates oil leaks, reducing maintenance costs and environmental impact. Quick-change roller kits allow for fast replacement of worn components, ensuring minimal production interruptions.
Applications in the Roll Forming Industry
- Metal Roofing & Wall Panels: Produce curved panels for architectural roofs, industrial buildings, and residential facades, enhancing aesthetic appeal and water drainage efficiency.
- Steel Structure Components: Create arched beams, columns, and trusses for warehouses, stadiums, and bridges, improving structural strength and load-bearing capacity.
- Automotive & Transportation: Manufacture curved body panels, cargo container sides, and railway carriage components with precise curvature for aerodynamic and functional requirements.
Why Choose Our Servo Arching Machine?
- SEO-Optimized for Global Reach: Keywords like "servo motor arching machine," "roll forming line arching device," and "metal sheet curving equipment" ensure high visibility on search engines, targeting buyers actively seeking automated arching solutions.
- Compliance with International Standards: CE-certified electrical systems and ISO 9001-compliant manufacturing guarantee safety and quality for global markets.
- Customization Support: Tailor the machine to your specific roll forming profile (e.g., trapezoidal, corrugated, or custom shapes) with our engineering team’s expertise.
