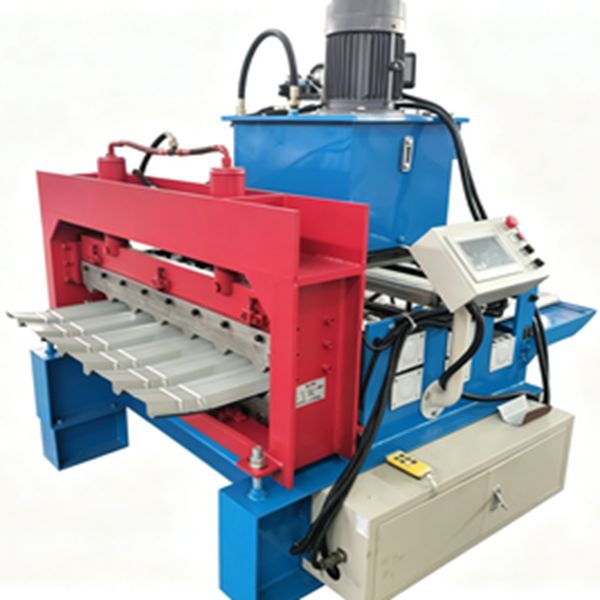

Product Introduction
The T25 Arch Bending Machine is a high-precision, multi-functional metal processing equipment specially developed for the global construction industry, mainly used for bending metal profiles and roof panels into various arc shapes. With its compact structure, stable performance and easy operation, it perfectly matches the supporting use of roof tile forming machines (such as 980+1020 Double Layer Roof Tile Roll Forming Machine), providing a one-stop solution for the production of curved roof systems. It is widely applied in the construction of industrial plants, warehouses, greenhouses, stadiums, prefabricated houses and other projects, and can process color steel plates, galvanized steel plates, aluminum-magnesium-zinc plates and other materials, meeting the diverse arc forming needs of different construction scenarios worldwide.
Core Features
- High Precision & Smooth Forming: Adopting advanced hydraulic transmission system and precision mold design, the forming accuracy is up to ±0.05mm, ensuring the arc surface is smooth and consistent without wrinkles or deformation. The minimum bending radius can be customized according to needs, which is suitable for forming various arc shapes such as semicircles, ellipses and barrel vaults.
- Strong Compatibility & Versatility: It is specially designed to match roof tile forming machines, and can perfectly process 980mm, 1020mm and other specifications of roof tiles. It supports processing metal materials with a thickness of 0.3-1.2mm, and can bend profiles such as angle steel, U-shaped steel and I-steel by replacing different molds, realizing multi-purpose of one machine.

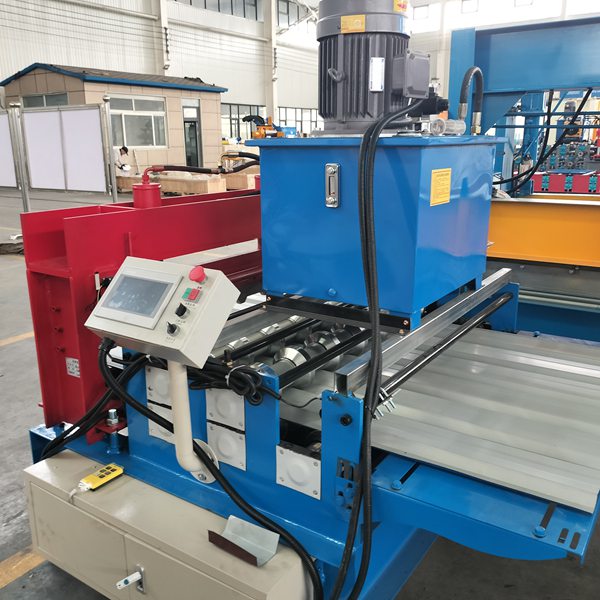

- Intelligent & Efficient Operation: Equipped with PLC control system and HMI touch screen, it supports both manual and automatic operation modes, with simple operation interface and easy learning. The bending speed is adjustable (0-15mm/s), and the continuous forming efficiency is high, which can greatly reduce labor intensity and improve production efficiency. It is equipped with a piece counter and pressure regulator for real-time monitoring of production status.
- Stable & Durable Structure: The main frame is made of heavy-duty H-steel, which is integrally welded and heat-treated, with strong bearing capacity and no deformation during long-term operation. The bending rollers are made of high-quality 45# steel, quenched and chrome-plated, with strong wear resistance and corrosion resistance, extending the service life of the machine.
- Customizable & Universal Adaptability: The voltage can be customized according to regional needs (220V/380V/415V, 50Hz/60Hz, 1-phase/3-phase) to adapt to the power standards of different countries and regions. The mold can be customized according to the customer's specific arc size and material requirements, providing personalized solutions.
- Safe & Easy Maintenance: Equipped with emergency stop button, double-acting foot pedal and other safety protection devices, it effectively ensures the safety of operators. The modular design makes mold replacement and daily maintenance convenient and quick, reducing maintenance costs. The machine adopts wooden box packaging, which is suitable for sea transportation and ensures the safety of the machine during transportation.
Application Scenarios
The T25 Arch Bending Machine is widely used in various construction projects that require curved roof or profile structures, especially matching with 980+1020 Double Layer Roof Tile Roll Forming Machine to form a complete roof processing line. Its main application scenarios include: • Industrial plants, warehouses and workshops with curved roofs • Agricultural greenhouses, livestock barns and farm buildings • Stadiums, exhibition halls and commercial buildings with modern curved designs • Prefabricated houses, temporary shelters and disaster relief projects • Tunnels, subways and hydropower station projects that need profile bending • Coastal projects and high-corrosion environments (matching anti-corrosion materials).
