Product Overview

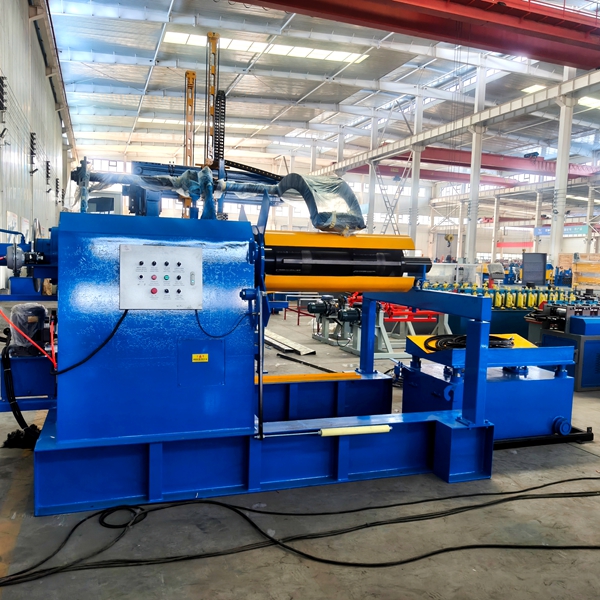

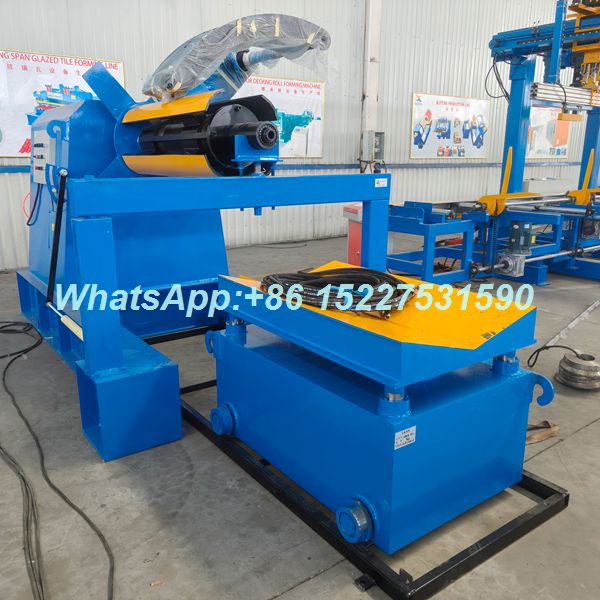

The 10 Ton Hydraulic Coil Uncoiler with Loading Car is a premium solution designed for modern metal stamping and roll forming workshops. Unlike traditional manual decoilers, this unit utilizes a powerful hydraulic expansion mandrel to grip the coil ID tightly from the inside, preventing slippage and ensuring smooth material feeding. The inclusion of a hydraulic loading trolley significantly reduces labor intensity and downtime during coil changes.
Key Features & Benefits

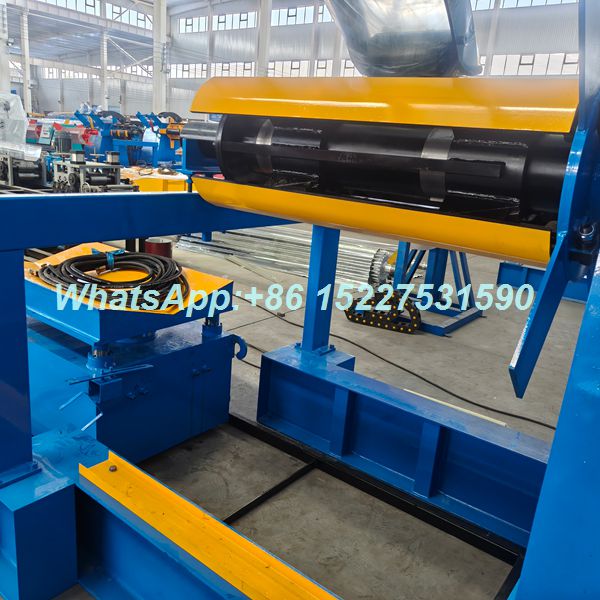

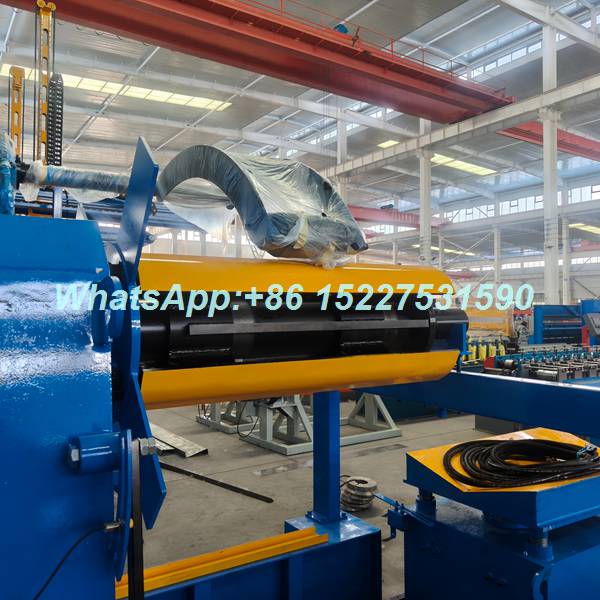

- Hydraulic Expansion System: The main shaft expands hydraulically (typically 450mm-650mm or customized) to secure the coil firmly. This hydraulic decoiler mechanism handles heavy loads up to 10 metric tons with ease.

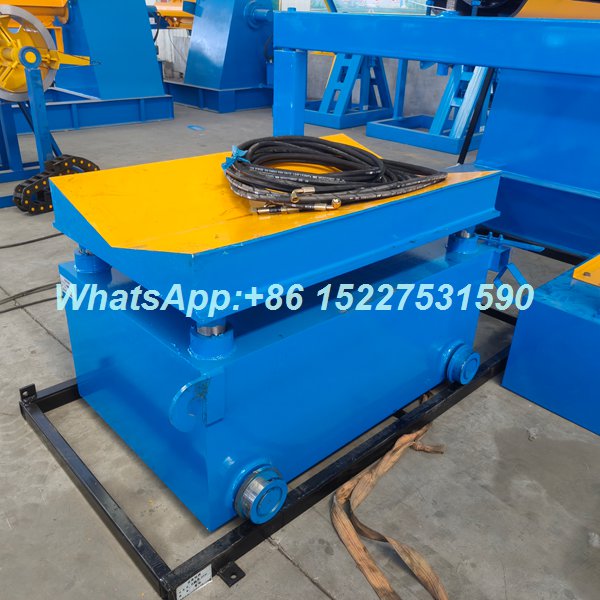

- Integrated Loading Car (Trolley): Equipped with a V-shaped or U-shaped coil loading cart, operators can easily transport steel coils from the storage area to the uncoiler saddle. This feature is essential for improving safety and workflow efficiency in a steel processing line.
- Adjustable Support Arms: The support arms are adjustable to accommodate different coil widths, ensuring the material stays centered during the unwinding process.

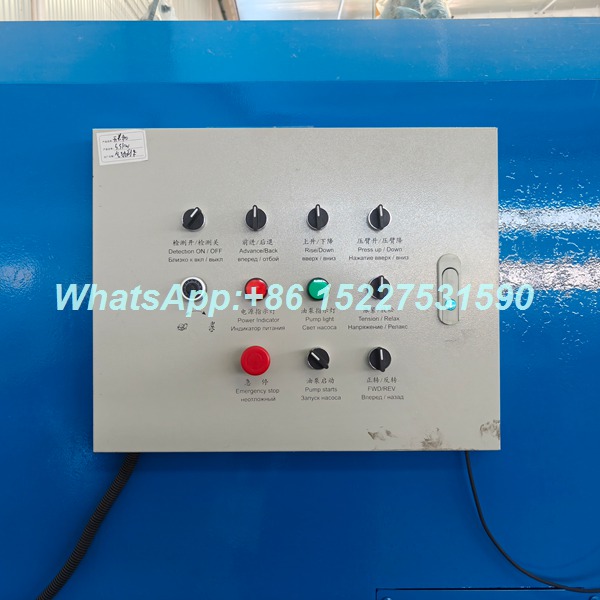

- Electrical Control Panel: Features a user-friendly PLC or relay control system allowing for forward/reverse rotation and speed adjustment, compatible with various metal roll forming machines.
- Heavy-Duty Structure: Built with high-quality steel plates and welded for stability, minimizing vibration during high-speed operation.
Technical Specifications
| Featur |
Specification |
| Max. Coil Weight |
10,000 kg (10 Tons) |
| Max. Coil Width |
1250mm / 1500mm (Customizable) |
| Max. Coil OD |
1800mm - 2000mm |
| Min. Coil ID |
450mm - 508mm |
| Expansion Method |
Hydraulic Expansion |
| Loading Method |
Hydraulic Loading Car / Trolley |
| Motor Power |
4kW - 7.5kW (Variable Frequency Drive optional) |
| Material Handling |
Galvanized Steel, Stainless Steel, Aluminum, Cold Rolled Steel |
Applications
This automatic uncoiler machine is widely used in:
- Color steel tile roll forming lines
- C/Z purlin production lines
- Highway guardrail forming lines
- Metal door frame manufacturing
- Automotive parts stamping lines
