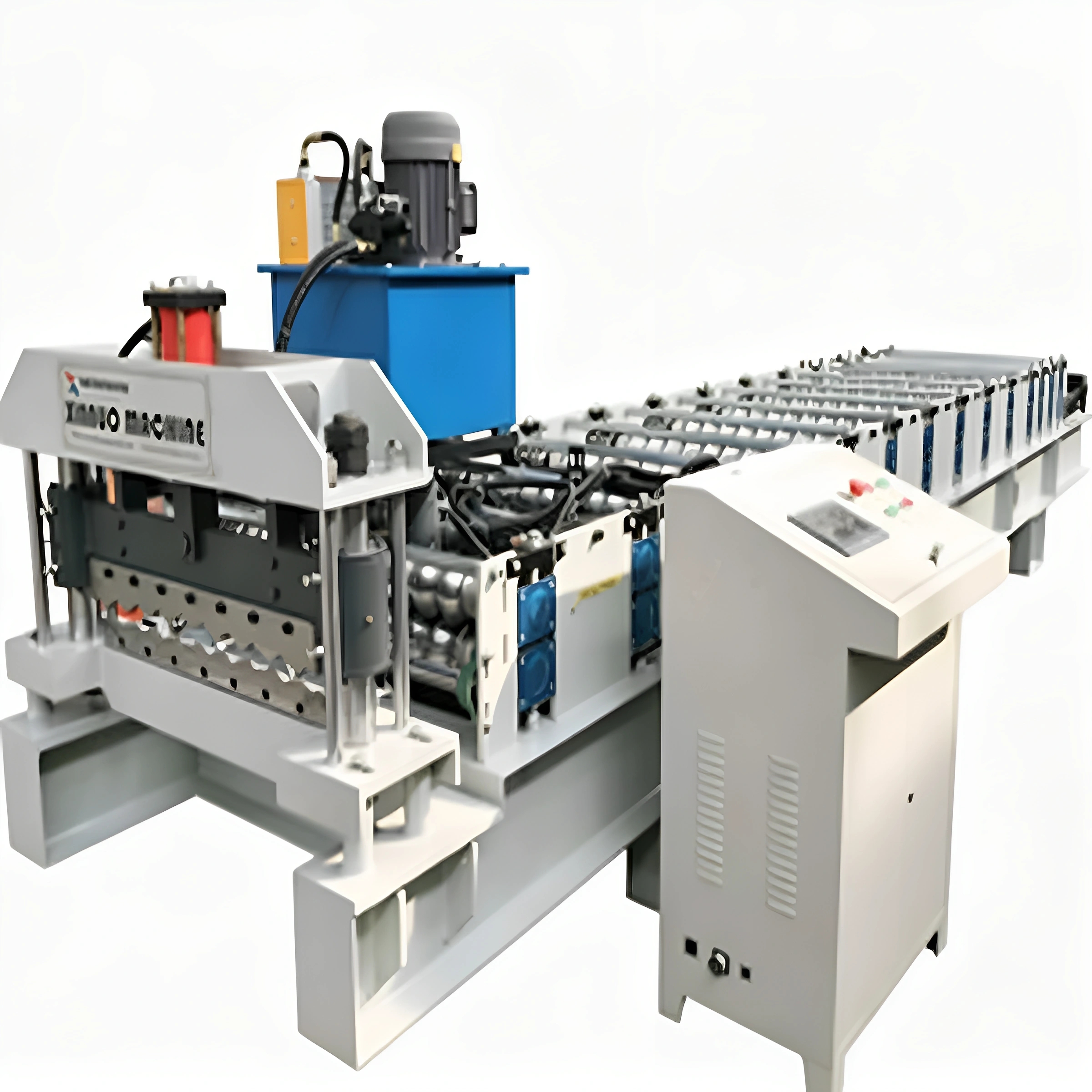

14 Stands 560 Single Sheet Roll Forming Machine - High-Precision Roofing Sheet Manufacturing Equipment
As a professional manufacturer of cold roll forming equipment, we are proud to launch our 14 Stands 560 Single Sheet Roll Forming Machine, a specialized and high-efficiency equipment designed for producing 560-type single-layer roofing sheets. Combining advanced cold roll forming technology with 14 groups of high-precision rollers, this machine is tailored for mass production of standard 560mm width single sheets, widely used in residential, industrial and commercial roofing projects worldwide. With stable performance, precise forming and user-friendly operation, it has become the preferred choice for customers engaged in roofing sheet manufacturing, steel structure construction and related industries.
Product Overview
The 14 Stands 560 Single Sheet Roll Forming Machine is a dedicated automatic equipment for continuous cold roll forming of 560-type single sheets. It adopts 14 groups of optimized rollers to realize progressive bending of metal coils into 560mm width single roofing sheets with uniform specifications and smooth surfaces. The whole production process is fully automated, from uncoiling, leveling, feeding, punching (optional) to roll forming and precise cutting, which greatly reduces labor input, improves production efficiency and ensures the consistency of each finished product.
The 560-type single sheet produced by this machine features excellent load-bearing capacity, corrosion resistance and easy installation, making it ideal for roofing, wall cladding and awning projects of factories, warehouses, residential buildings, shopping malls and other structures. The 14-stand roller design ensures gentle and uniform forming, avoiding material deformation and improving the overall quality and service life of the finished sheets.
Core Features
-

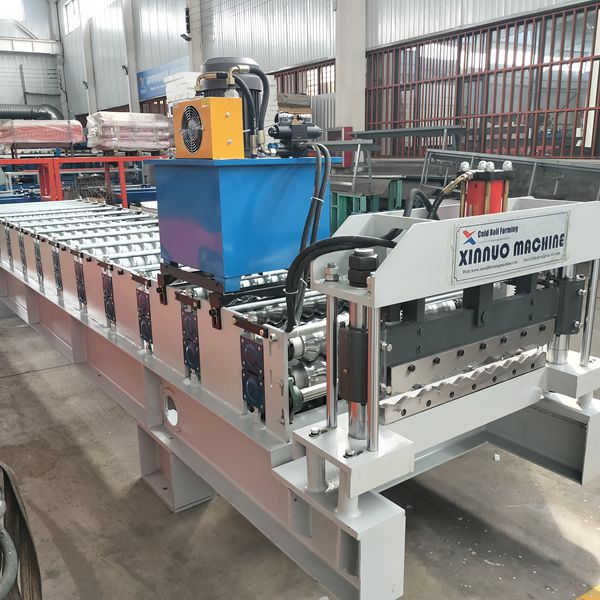

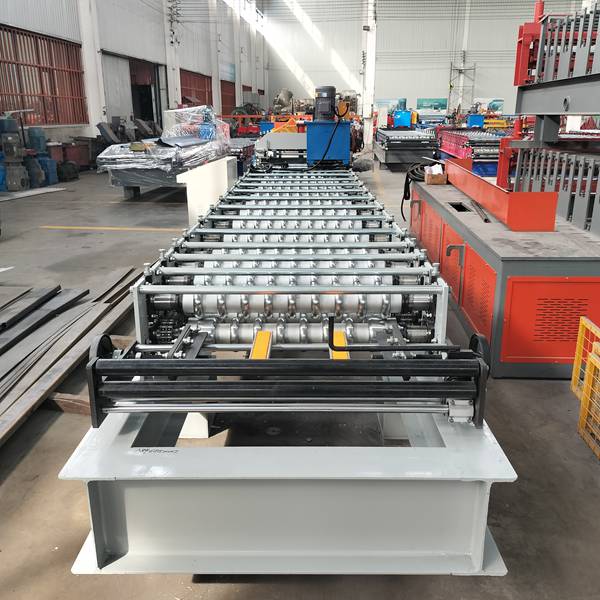

14 Stands High-Precision Rollers: Equipped with 14 groups of high-quality alloy steel rollers , the machine realizes progressive and uniform bending of materials. The 14-stand design effectively reduces the stress of the sheet during forming, avoids wrinkles, cracks and deformation, ensuring the flatness and dimensional accuracy of the 560-type single sheet. Each roller is precision machined and polished, with long service life and stable performance.
-
560-Type Specialized Forming: Customized for 560mm width single sheet production, the machine’s roller molds are precisely designed according to the 560-type profile standard, ensuring that the finished sheet’s width, height and bending angle meet international industry standards. The 560-type single sheet is widely recognized in the global market for its reasonable structure, strong load-bearing capacity and wide applicability.
-

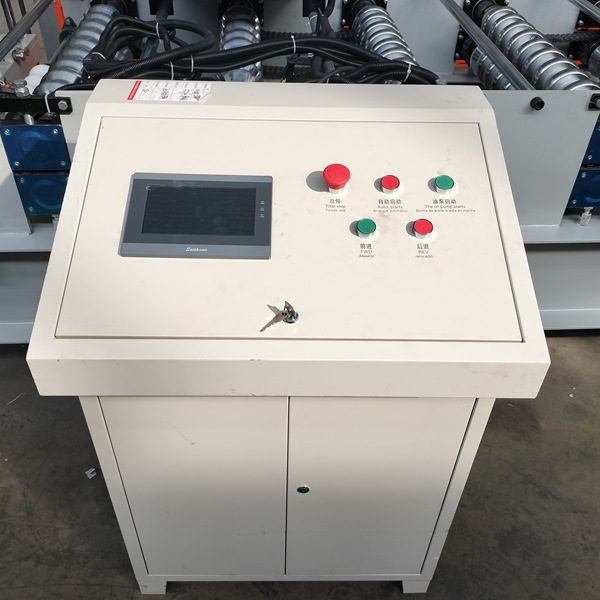

Full Automation & High Efficiency: Adopting PLC numerical control system and HMI touch screen, the machine realizes fully automatic operation. The forming speed can reach 8-30 m/min (adjustable), and only 1-2 operators are needed to complete the whole production process. Compared with traditional equipment, the production efficiency is increased by 40%, which is suitable for large-scale mass production.
-

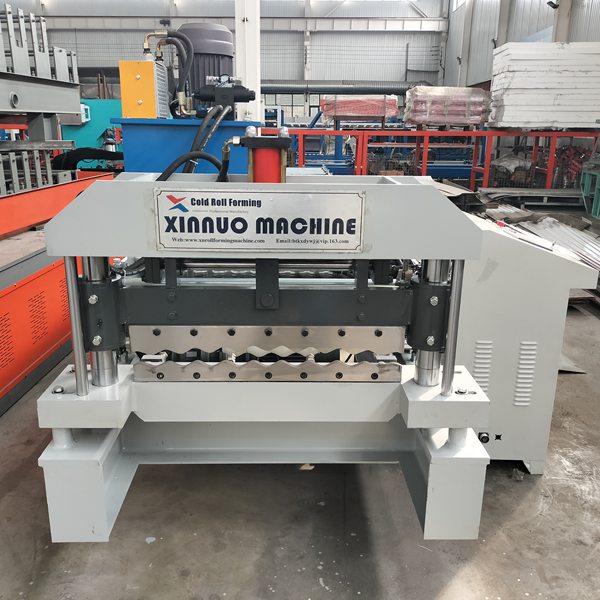

Precise Cutting & Stable Quality: Equipped with high-precision hydraulic cutting or servo cutting system, the cutting accuracy is controlled within ±1mm, and the length of the finished sheet can be freely set through the touch screen (500mm-6000mm, adjustable). The dimensional error of the formed 560 single sheet is within ±0.5mm, ensuring the consistency of product specifications and meeting the requirements of various construction projects.
-

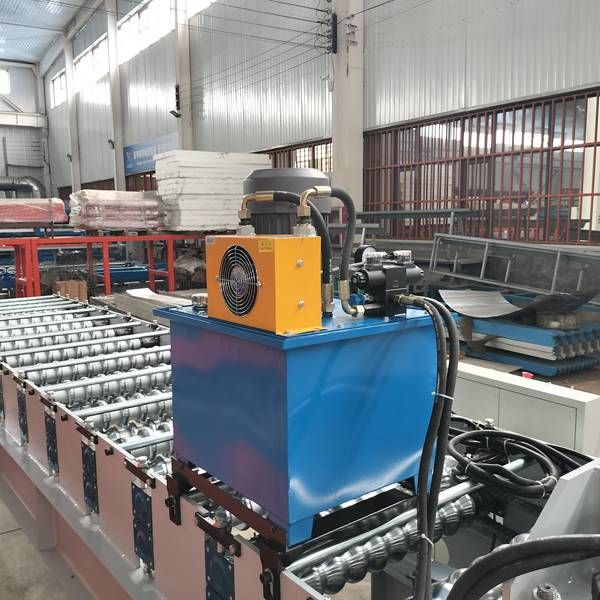

Durable & Easy Maintenance: The main body of the machine is made of high-quality steel, with a stable structure and strong load-bearing capacity. The electrical components (Mitsubishi/Siemens PLC, frequency converter) and hydraulic components are all international famous brands, ensuring stable operation and low failure rate. The machine is designed with humanized maintenance ports and detachable rollers, making daily inspection, maintenance and mold replacement simple and convenient.
-
Optional Functions Available: According to customer needs, we can add optional functions such as inline punching , automatic stacking, film covering and embossing, which further improves production efficiency and product added value, meeting the diverse needs of different customers.
Application Scenarios
The 14 Stands 560 Single Sheet Roll Forming Machine is widely used in various fields, mainly focusing on roofing and wall cladding projects, including:
-
Residential Buildings: Roofing and wall cladding of villas, apartments, rural houses, etc., with beautiful appearance, corrosion resistance and long service life, adapting to different climatic conditions.
-
Industrial & Commercial Buildings: Roofing of factories, warehouses, workshops, shopping malls, supermarkets, exhibition halls, etc., with strong load-bearing capacity, able to withstand wind, rain and snow, ensuring the safety and stability of the building.
-
Infrastructure Projects: Roofing and awning of toll stations, gas stations, bus stations, railway stations, etc., with easy installation and quick construction, shortening the construction period.
-
Agricultural Facilities: Roofing of greenhouses, agricultural warehouses, livestock sheds, etc., with corrosion resistance and moisture resistance, adapting to the harsh agricultural environment.
-
Other Fields: Temporary buildings, prefabricated houses, building renovation projects, etc., providing a cost-effective and efficient roofing solution.
Our Advantages
-
Professional R&D & Production: We have a professional R&D team with years of experience in roll forming equipment, focusing on optimizing the 14-stand roller design and 560-type forming technology, ensuring the machine’s performance is leading in the industry. All machines are produced in strict accordance with international standards, passing ISO 9001/14001 and CE certifications.
-
Customization Capability: We can customize the machine according to customer needs, including adjusting the formed sheet width (based on 560mm), material thickness range, adding optional functions (punching, stacking, etc.), and matching the voltage and frequency of different countries and regions.
-
Stable Quality & Long Service Life: Strict quality control is implemented from raw material procurement to product delivery. The 14 groups of rollers are made of high-quality alloy steel, with precise processing and long service life; the electrical and hydraulic components are from international famous brands, ensuring stable operation and low failure rate.
-
Perfect After-Sales Service: We provide a 1-2 year warranty for key components, 24-hour emergency technical support, on-site installation, commissioning and training services, and lifelong technical guidance, solving all your worries in use.
Contact Us
If you are interested in our 14 Stands 560 Single Sheet Roll Forming Machine, or have any questions about product parameters, customization, price, delivery or after-sales service, please feel free to contact us. Our professional sales team will reply to you within 24 hours and provide you with the most suitable solution and detailed quotation.
Email: lisunny158@gmail.com
Phone: 15227531590
Address: zhenggang road，economic development zone，botou city,hebei province,China
