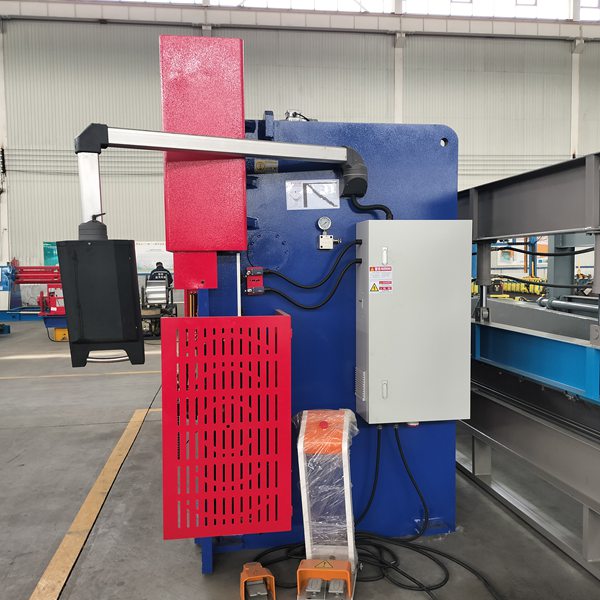

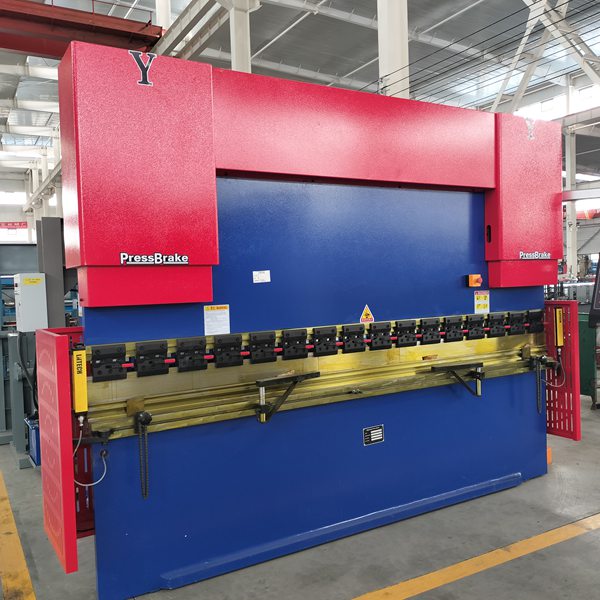

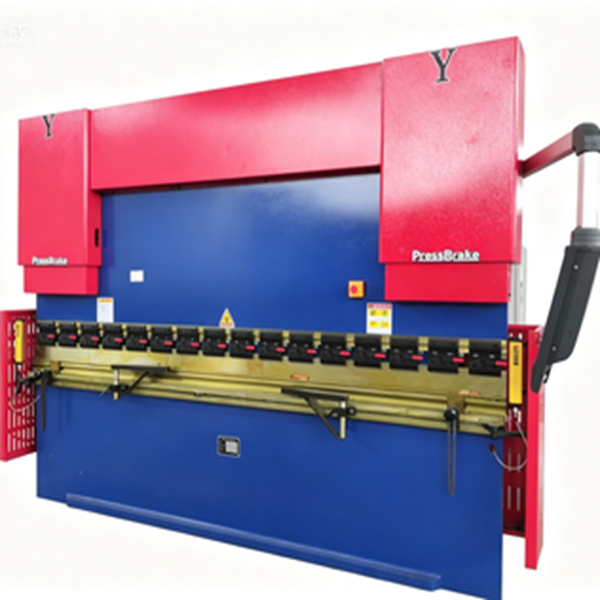

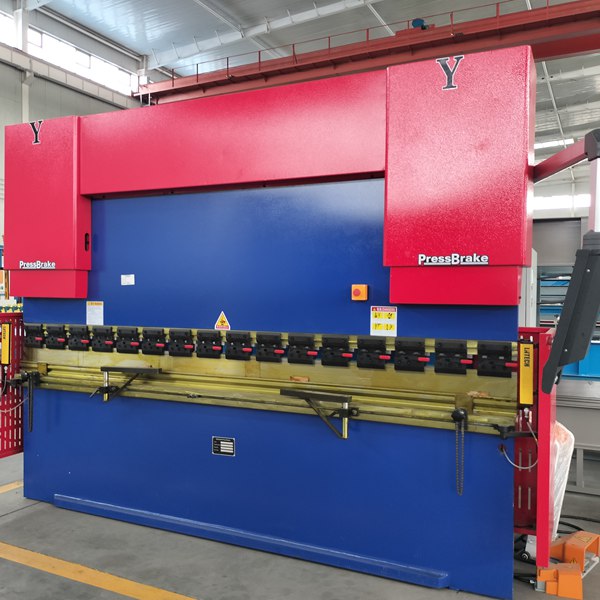

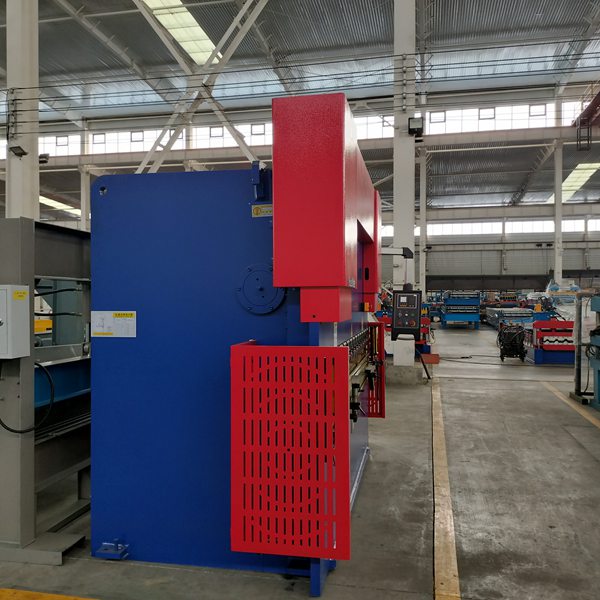

Product Overview
This CNC hydraulic press brake is a high-precision sheet metal processing machine, designed for bending, forming, and folding various metal plates. Equipped with advanced CNC control system, it enables automatic programming, precise positioning, and multi-angle forming, widely used in metal fabrication, construction, automotive, and machinery manufacturing industries.
Key Features

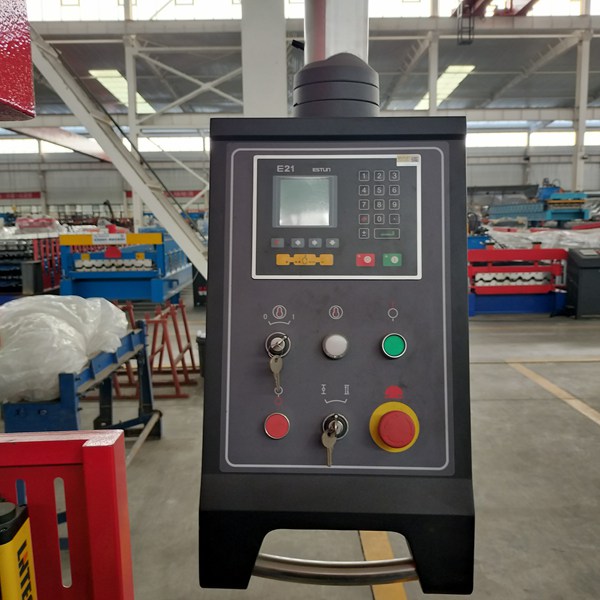

- ✅ Advanced CNC Control System: Equipped with professional CNC controller, supporting multi-axis control, automatic programming, and graphical display. It can store multiple bending programs for quick switching, improving production efficiency.
- ✅ High Bending Precision: Adopts high-precision grating ruler and hydraulic servo synchronization system, ensuring consistent parallelism and angle accuracy of the upper and lower beams, with bending precision up to ±0.01mm.
- ✅ Stable Hydraulic System: High-quality hydraulic components provide stable power output, ensuring smooth and reliable operation with low noise and long service life.
- ✅ Durable & Rigid Structure: The machine frame is made of high-strength steel, processed by annealing treatment to eliminate internal stress, ensuring high rigidity and deformation resistance during long-term heavy-duty use.
- ✅ Versatile Tooling Compatibility: Supports a wide range of standard and custom bending dies (V-dies, U-dies, special forming dies) to meet different bending requirements for various workpieces.
- ✅ Safety & Easy Operation: Equipped with safety light curtains, emergency stop buttons, and protective guards to ensure operator safety. The user-friendly touch screen interface is easy to learn and operate.
Technical Highlights
- Control System: CNC controller (customizable DELEM/ESTUN/DA series)
- Bending Force: 40T–600T (customizable)
- Working Length: 1600mm–6000mm (customizable)
- Max Bending Thickness: 0.5–16mm (depends on material and model)
- Bending Precision: ±0.01mm
- Backgauge Stroke: 0–600mm (adjustable)
- Power Supply: 380V/50Hz (customizable for different regions)
- Main Motor Power: 5.5–37kW (depends on model)
Applications
- Sheet metal fabrication workshops
- Steel structure and metal component manufacturing
- Automotive and transportation equipment manufacturing
- Electrical cabinet and enclosure production
- Kitchen equipment and hardware manufacturing
- Construction, decoration, and engineering projects
