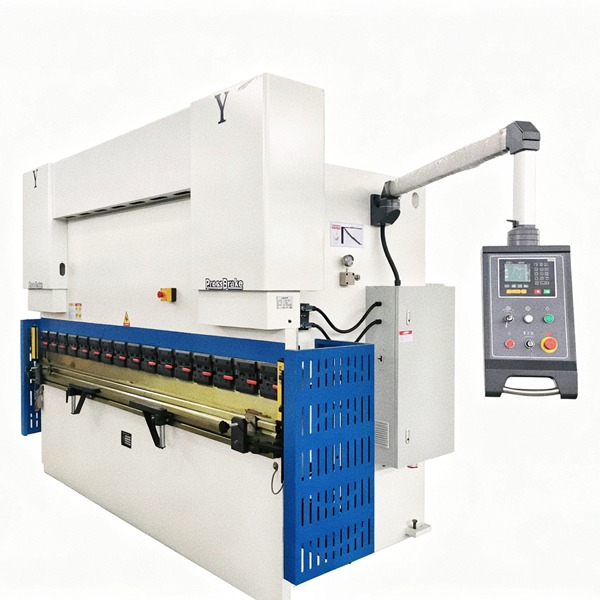

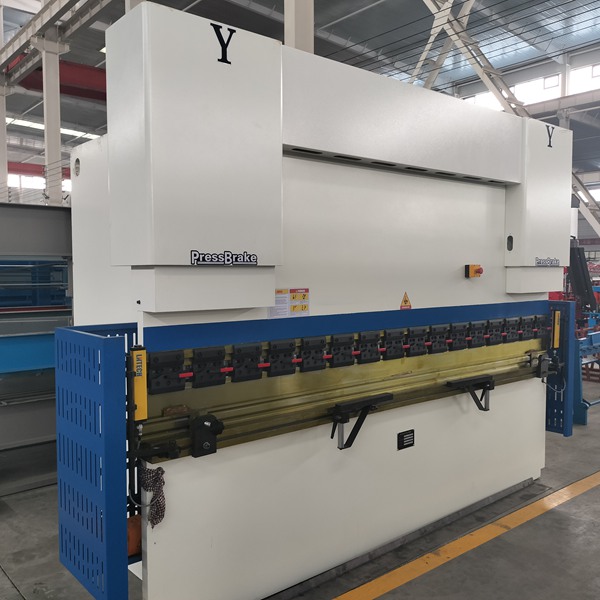

3200mm CNC Hydraulic Press Brake
Professional Sheet Metal CNC Bending Processing Equipment
Product Overview
This 3200mm CNC Hydraulic Press Brake is a high-precision automatic sheet metal bending machine, equipped with independent hydraulic drive system and intelligent CNC control system. With 3200mm effective working bending length, it is specially used for bending, folding and shaping of carbon steel, stainless steel, galvanized steel and color steel plates. It perfectly matches your roll forming machine production line, and is widely used in steel structure processing, sheet metal manufacturing, hardware processing, construction engineering and other industries worldwide.
Core Features
- 3200mm Effective Bending Length: Large working stroke, supports long-size steel plate integral bending, high bending precision and smooth forming effect.

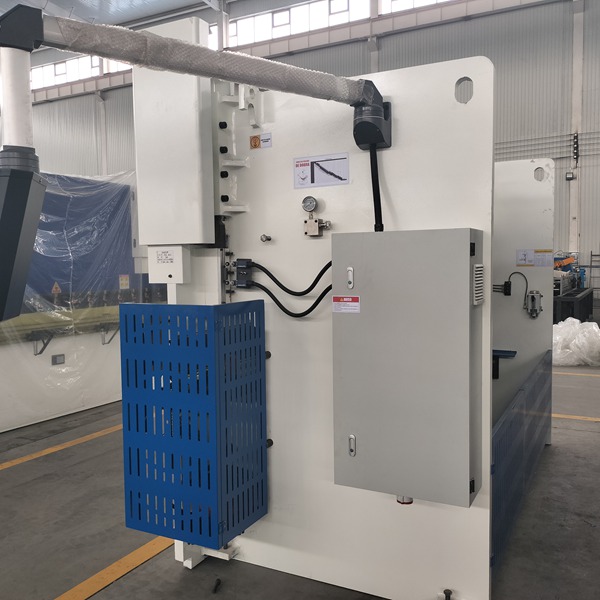

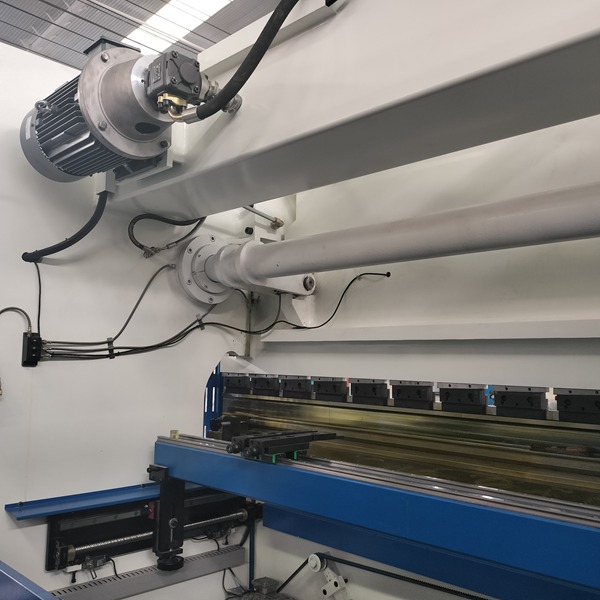

- Independent Hydraulic Drive System: Stable hydraulic station with high-efficiency oil pump, strong bending force, low noise, stable operation and durable service life.

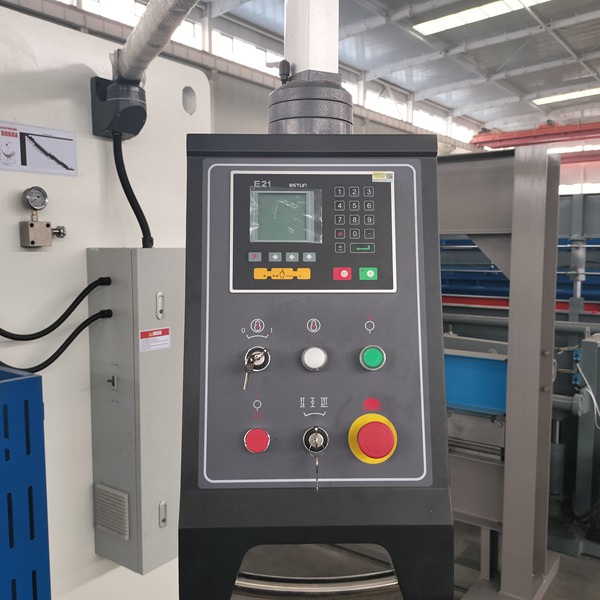

- Intelligent CNC Control System: Equipped with dedicated CNC bending controller + movable pendant operation panel, parameter setting, angle adjustment and program storage are easy and intuitive, realize fully automatic precise bending.

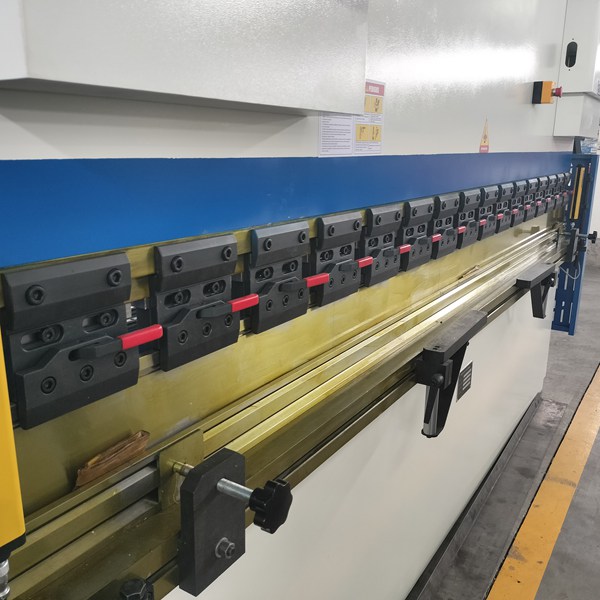

- High-Quality Bending Dies: Standard upper V bending die & lower die set, high hardness quenched alloy steel, wear-resistant, high precision, can be customized for different bending angles and shapes.
- High Rigidity Welded Frame: Integral heavy-duty steel welded body, stress relief treatment, anti-deformation, high load-bearing capacity, ensure long-term bending accuracy stability.

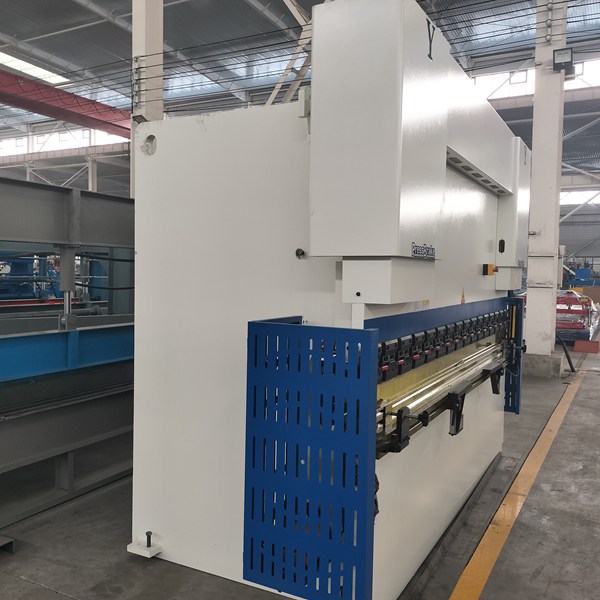

- Humanized Safety Protection: Equipped with blue safety baffle, emergency stop button, overload protection function, safer and more reliable operation.
- Wide Material Adaptability: Suitable for carbon steel, stainless steel, galvanized steel, color coated steel sheet, sheet metal thickness 1-12mm.
Technical Parameters
| Item |
Specification |
| Machine Model |
WC67Y-3200 CNC Hydraulic Press Brake |
| Effective Bending Length |
3200mm |
| Rated Bending Force |
100T / 125T (optional) |
| Applicable Material Thickness |
1.0 - 12mm carbon steel / stainless steel |
| Control System |
CNC Digital Control System + Movable Pendant Operation Panel |
| Drive System |
Independent Hydraulic Drive |
| Bending Die Material |
Quenched Alloy Steel |
| Back Gauge System |
Electric Back Gauge (adjustable) |
| Voltage |
380V/415V/460V, 3P 50/60Hz (customizable) |
| Machine Overall Size |
Approx. 3600×1500×2200mm |
Application Scenarios
Perfect supporting equipment for roll forming production line, widely used in: steel structure processing, roof & wall sheet processing, cabinet manufacturing, hardware sheet metal processing, electrical box production, agricultural machinery parts, construction steel component bending and other fields.
