Product Overview

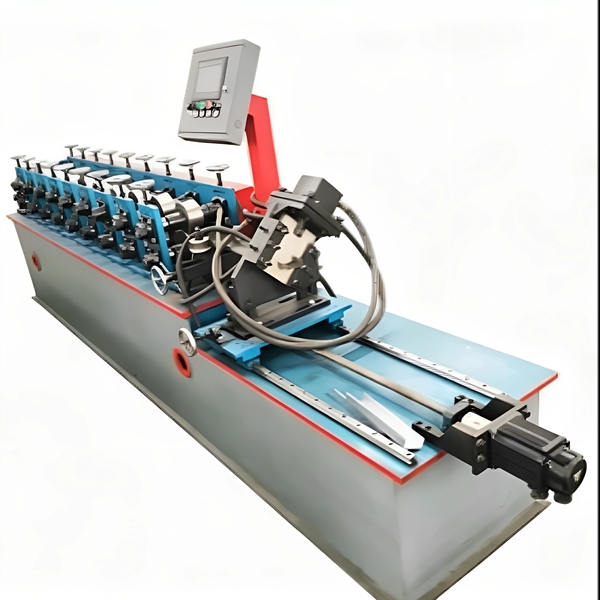

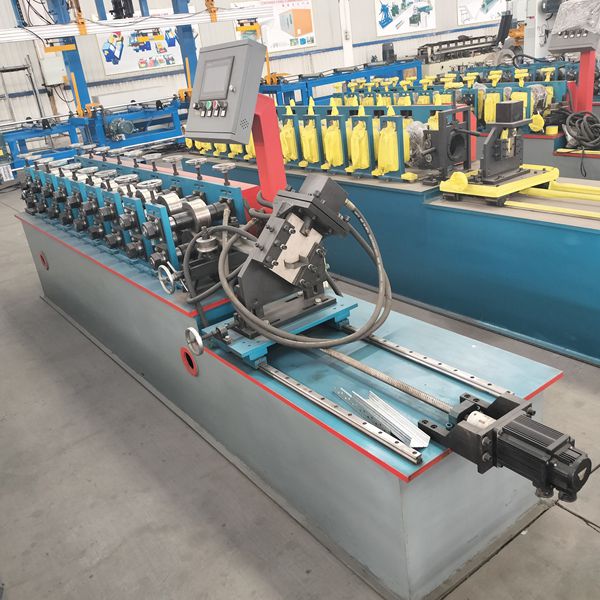

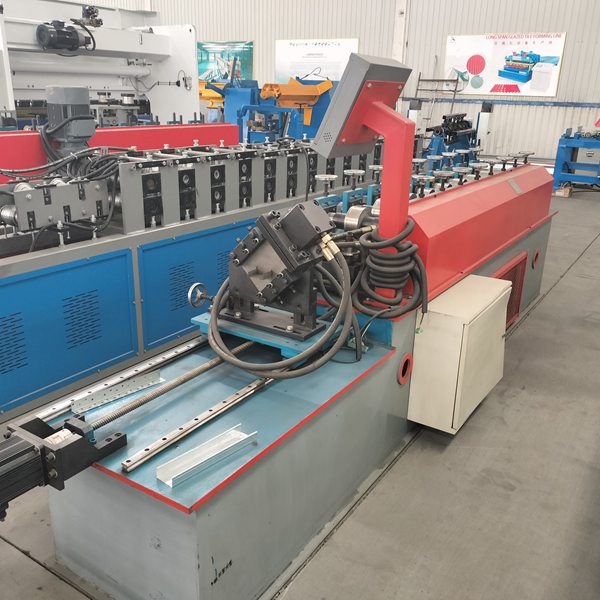

This 9 Rows U Type Light Steel Keel Roll Forming Machine is professional cold roll forming equipment specially designed for producing U-shaped light steel keels, drywall studs, ceiling tracks and partition wall profiles. Adopted optimized 9 groups of forming roller stations, it realizes stable, high-precision continuous roll forming for galvanized steel coils. Widely used in interior decoration, suspended ceiling, drywall partition, prefabricated light steel building projects worldwide.
Product Features

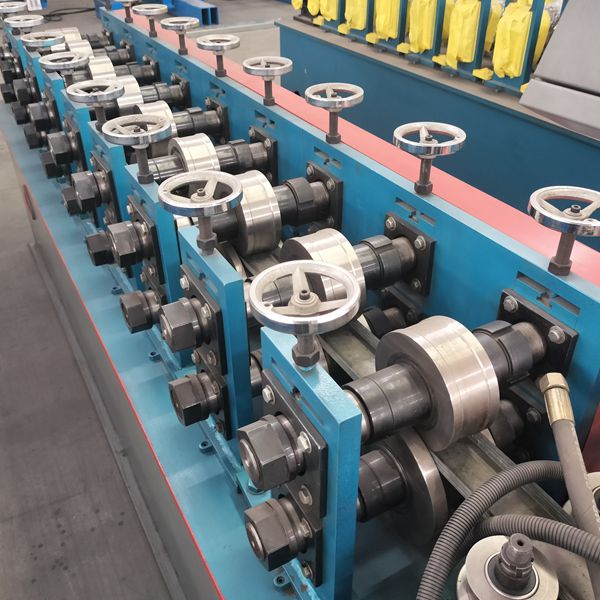

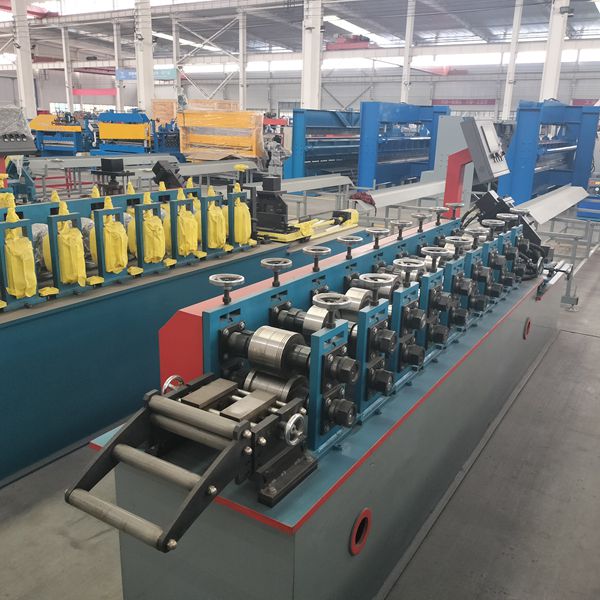

- 9-Row Precision Forming System: 9 sets of professional forming rollers, reasonable bending process, stable shaping, standard U profile size, small deformation and high dimensional accuracy.

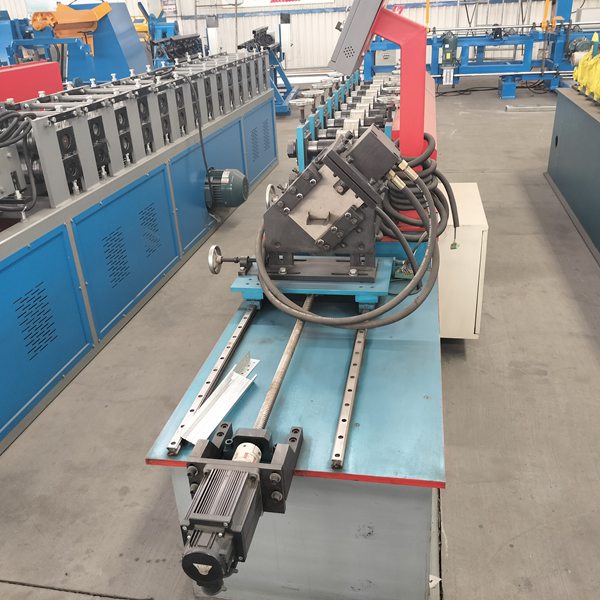

- Fully automatic production line: decoiling → feeding guide → 9-row roll forming → hydraulic automatic cutting → output table, whole line PLC intelligent control.
- High quality parts: Cr12 quenched rollers, 45# solid shaft, gear & chain transmission, durable and long service life.

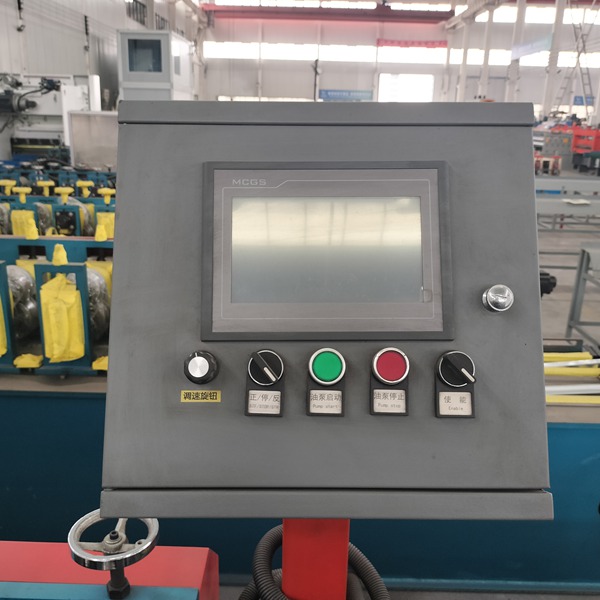

- Stable performance: adjustable forming speed, length setting by touch screen, automatic counting, fault alarm, easy operation and maintenance.
- Wide material adaptability: suitable for galvanized steel coil, cold rolled steel sheet.
- CE certified safety design, export standard structure, suitable for global market installation and use.
Technical Parameters
| Item |
Specification |
| Forming Rows/Stations |
9 rows |
| Applicable Material |
Galvanized Steel Coil (GI) |
| Material Thickness |
0.4–1.0mm |

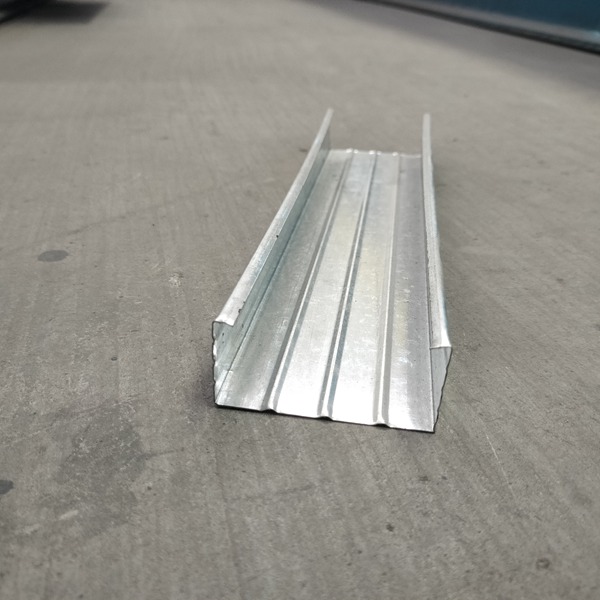

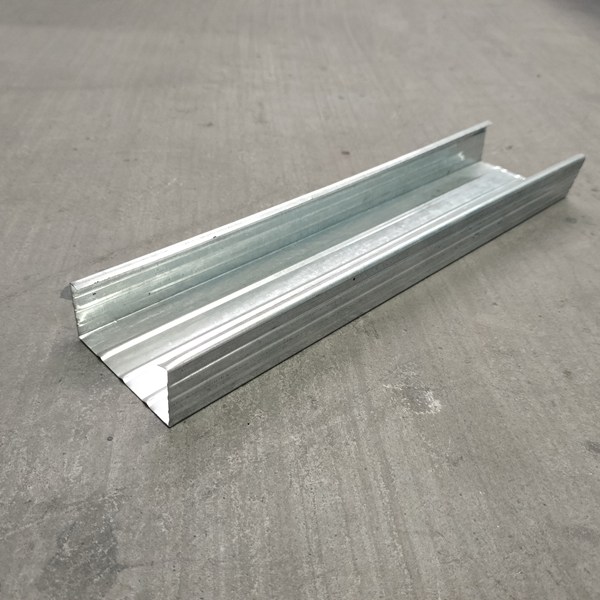

| Finished Profile |
U Type Light Steel Keel / U Channel / Drywall Track |
| Forming Speed |
15–25 m/min |
| Control System |
PLC + Touch Screen, Automatic Control |
| Cutting System |
Hydraulic Automatic Cutting |
| Cutting Accuracy |
±0.5mm |
| Main Motor Power |
7.5KW |
| Voltage |
380V/3Phase/50Hz (Customizable 220V/60Hz) |
| Overall Dimension |
About 5600×800×1300mm |
| Machine Weight |
About 1.8Ton |
| Roller Material |
Cr12 Mold Steel (Quenched) |
| Shaft Material |
45# High Strength Steel |
Application Fields
- Suspended ceiling main keel & auxiliary keel
- Drywall partition wall U stud & track
- Interior decoration lightweight steel framework
- Prefabricated house, commercial building, office building construction
- Ceiling furring channel production
Our Advantage
We are professional factory specializing in light steel keel roll forming machines for over 10 years. This 9 rows U keel machine is our hot export model, stable quality, reasonable price, complete export documents, one year warranty, overseas technical support and after-sales service. Support customized profile size, voltage and color according to customer requirements.
