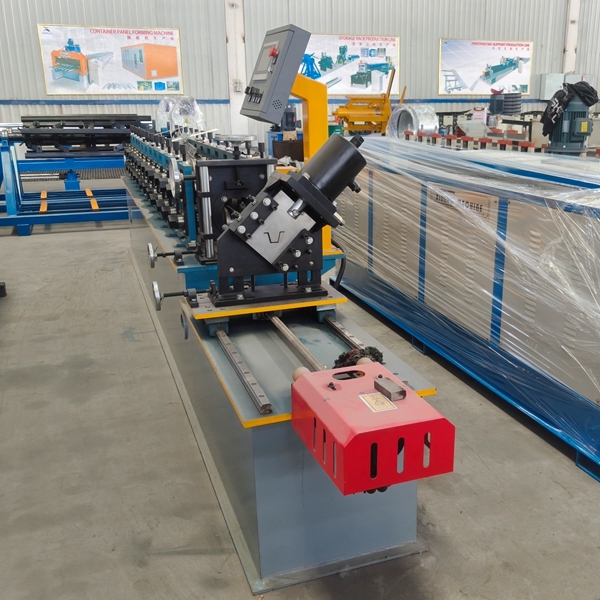

Product Overview

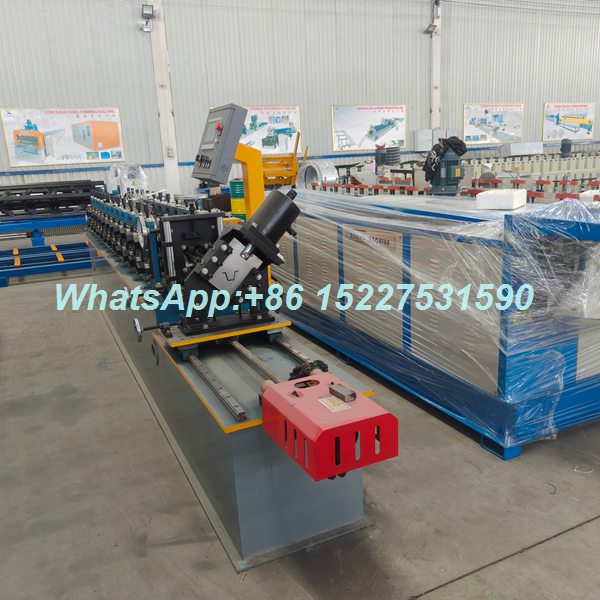

Our Heavy Duty Furring Channel Roll Forming Machine is specifically engineered for the high-efficiency production of galvanized steel furring channels (also known as hat channels, omega profiles, or resilient channels). Designed for modern construction and interior decoration projects, this machine ensures the precise manufacturing of lightweight steel keels used extensively in drywall ceiling systems, partition walls, and soundproofing installations.
Key Features & Technical Advantages

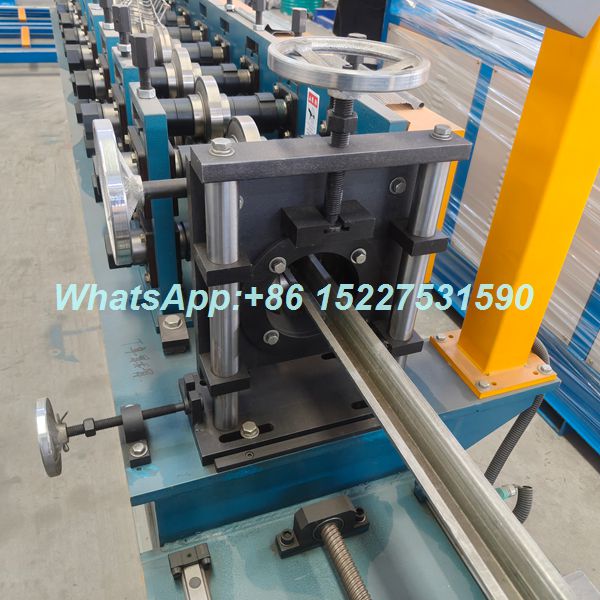

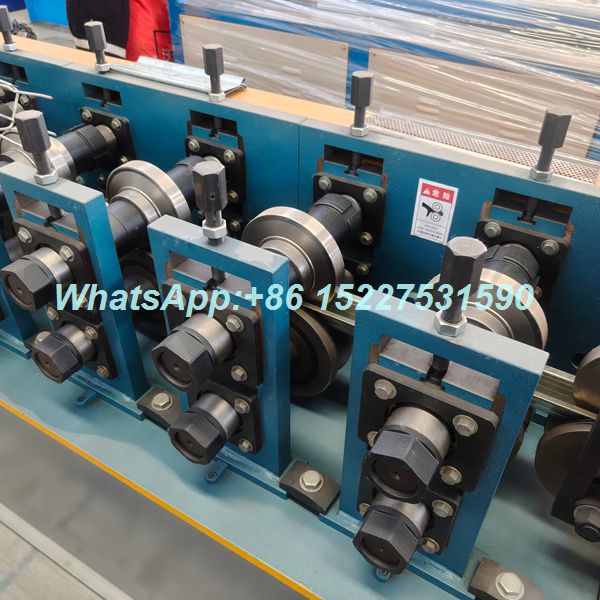

High-Precision Roll Forming Technology: Equipped with high-quality Cr12Mov rollers and a robust transmission system, our furring channel roll former guarantees smooth surface finishes and strict dimensional accuracy (e.g., standard 68x35x22mm or customized profiles), meeting international construction standards.
Versatile Profile Customization: Capable of producing various types of furring channels, including U-shaped, Omega-shaped, and resilient hat channels. Ideal for manufacturing metal framing components for both residential and commercial building projects.

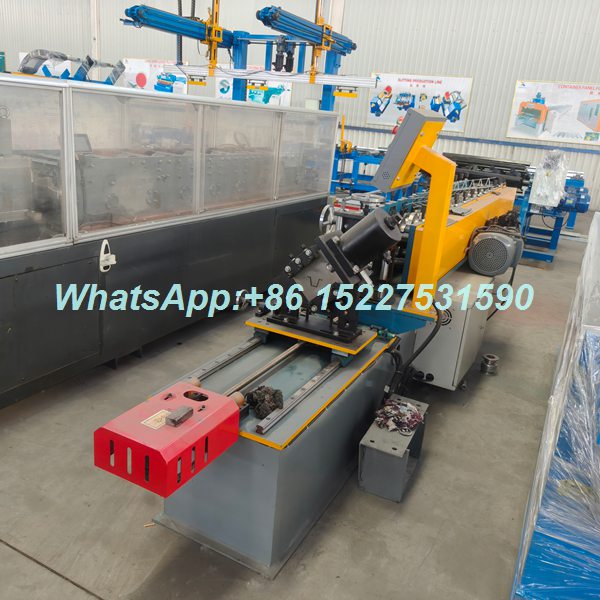

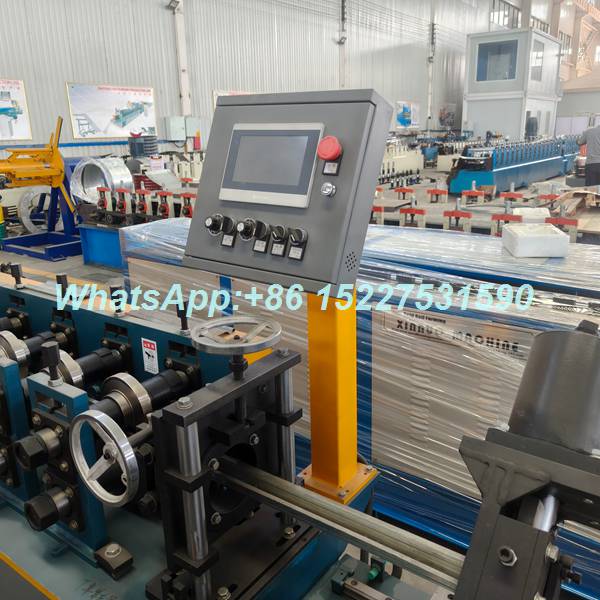

Automated Production Line: Features a fully automated PLC control system with an HMI touch screen. The line integrates decoiling, leveling, punching, roll forming, cutting, and stacking, significantly reducing labor costs and boosting daily output.

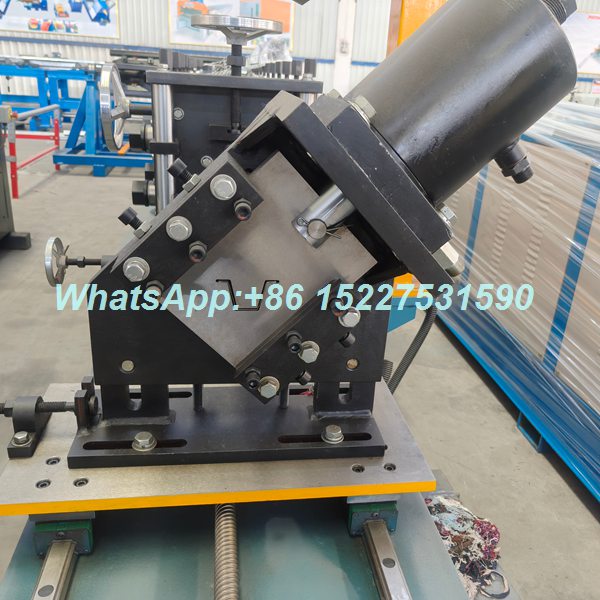

Durable & Low Maintenance: The main frame is built with heavy-duty steel plates for maximum stability during high-speed operation. The hydraulic cutting system ensures clean, burr-free cuts, extending the lifespan of the tooling.
Key Technical Specifications
| Parameter Category | Specification Details |
| Profile Output | Furring Channel / Omega Profile / Hat Channel / Resilient Channel |
| Material Compatibility | Galvanized Steel Coil, G550/G300 Steel, Thickness: 0.4-1.2mm |
| Forming Speed | 15-30 m/min (Adjustable via VFD) |
| Forming Stations | 10-15 Passes (Customizable) |
| Roller Material | Cr12Mov / GCr15 Bearing Steel, HRC 58-62 |
| Shaft Diameter | 40-50mm, 45# Steel, Quenched & Tempered |
| Main Motor Power | 4-7.5 kW (Servo/Inverter Control) |
| Hydraulic System | 3-4 kW, Automatic Cutting, 45° Shear |
| Control System | PLC (Panasonic/Delta/Siemens) + HMI Touch Screen |
| Cutting Accuracy | ±1.0mm (Encoder Length Control) |
| Machine Dimensions | Approx. 4500×900×1600mm (L×W×H) |
| Total Weight | 1.2-2.0 Tons |
| Voltage Standard | 380V/3Phase/50Hz (Customizable) |
Applications

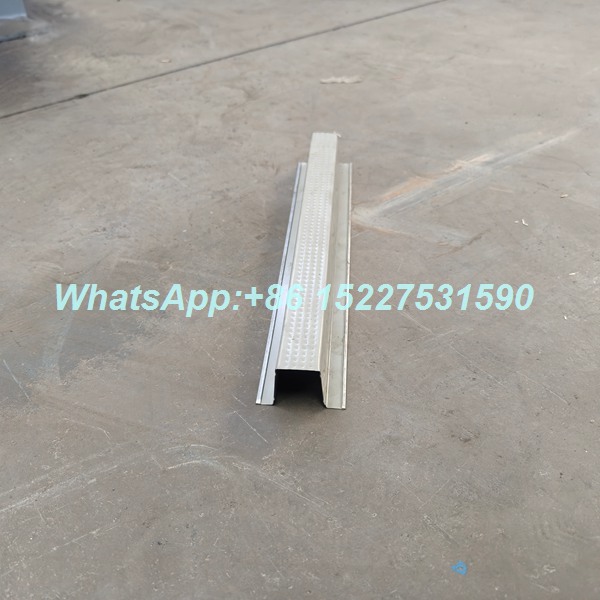

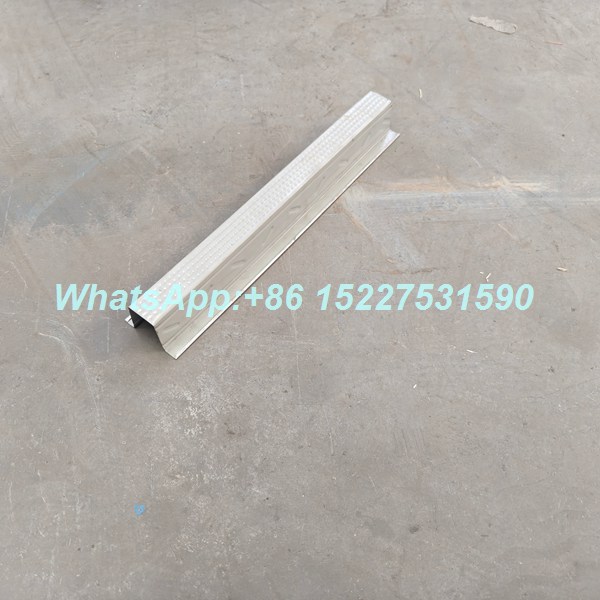

The galvanized furring channels produced by this machine are widely used in:
Drywall ceiling framing and leveling systems.
Interior partition walls and soundproofing structures.
Commercial decoration projects such as KTVs, offices, and hotels.
Export markets requiring high-zinc coated, rust-resistant metal framing solutions.
Why Choose Our Furring Channel Machine?
As a professional manufacturer of light gauge steel framing equipment, we provide not only high-quality roll forming machines but also comprehensive technical support. Whether you are starting a new light steel keel production line or upgrading your existing equipment, our furring channel roll former offers the perfect balance of speed, precision, and cost-effectiveness.
