Product Overview
Maximize your production efficiency and save valuable factory space with our advanced Dual-Layer Roll Forming Machine, specifically engineered to produce both 760-type Standing Seam (Angle-Ridge) panels and 900-type Trapezoidal roof sheets in a single compact unit. Designed for modern steel construction projects, this machine seamlessly switches between two distinct roof profiles with a simple button press via its industrial PLC control system. It is the ideal solution for manufacturers aiming to meet diverse market demands without the need for purchasing separate production lines.
Key Features & Technical Highlights

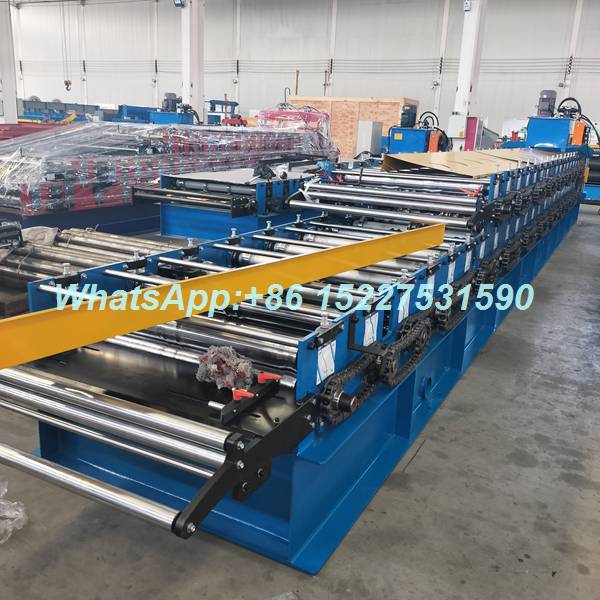

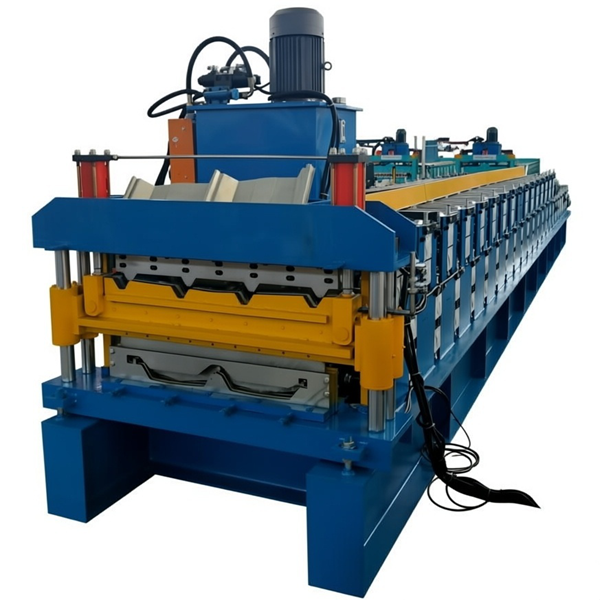

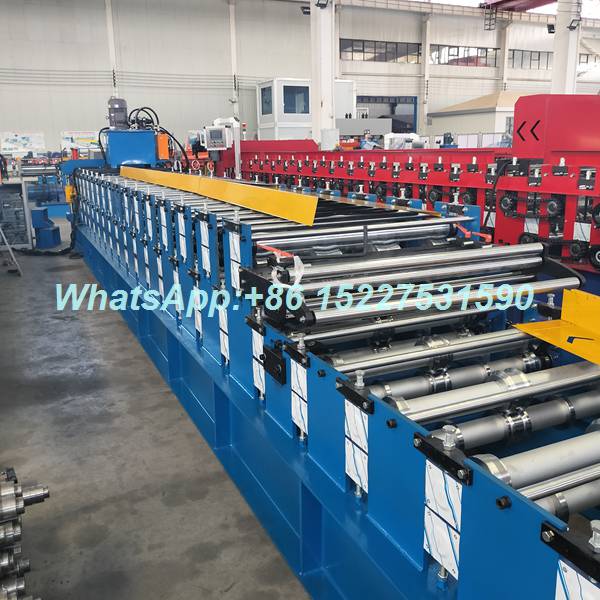

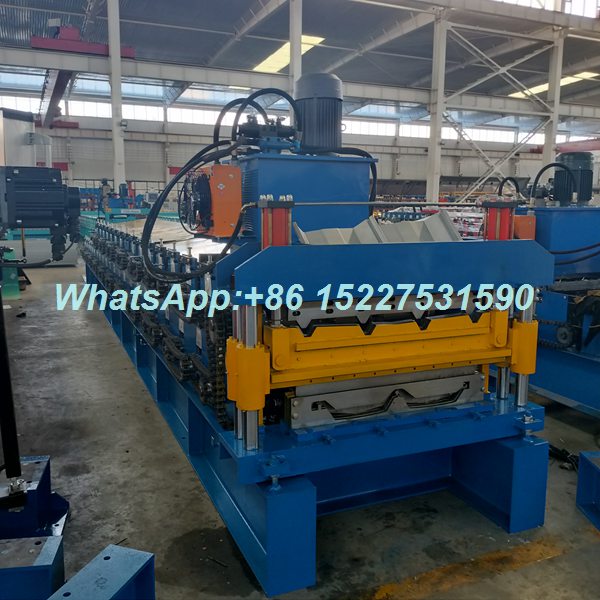

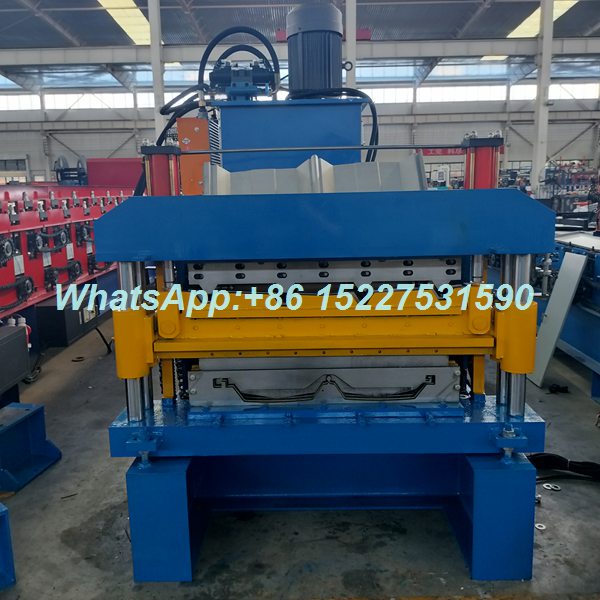

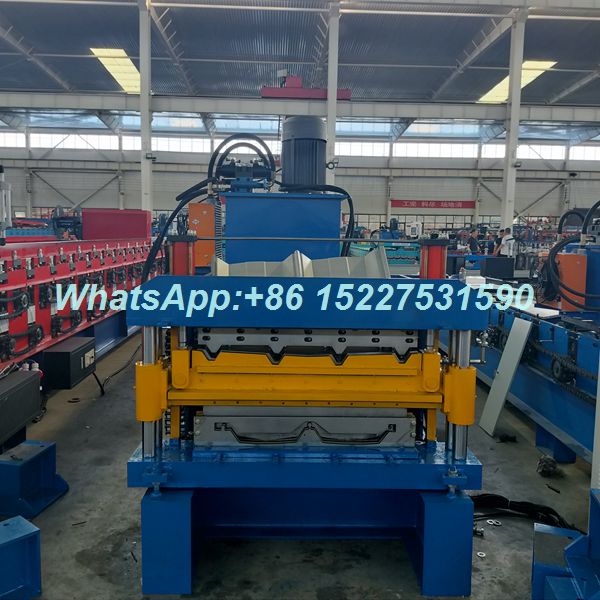

- Space-Saving Dual-Layer Design: The innovative two-layer structure allows for the independent production of two different panel types. The upper layer typically forms the 760 standing seam panel, while the lower layer produces the classic 900 trapezoidal sheet, reducing equipment footprint by up to 50%.

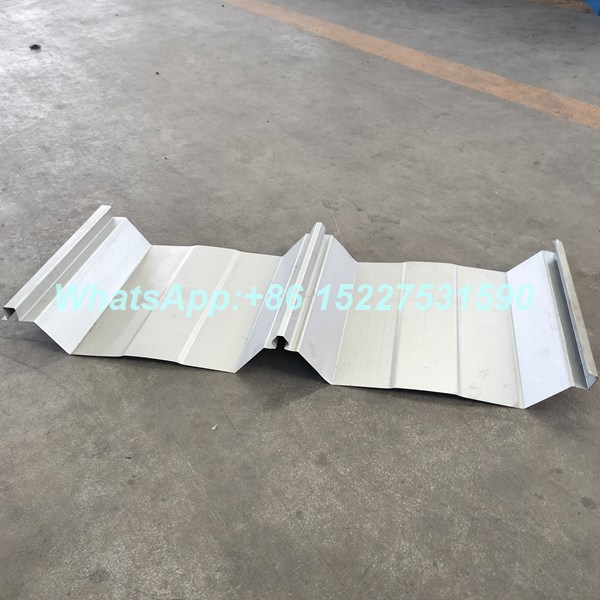

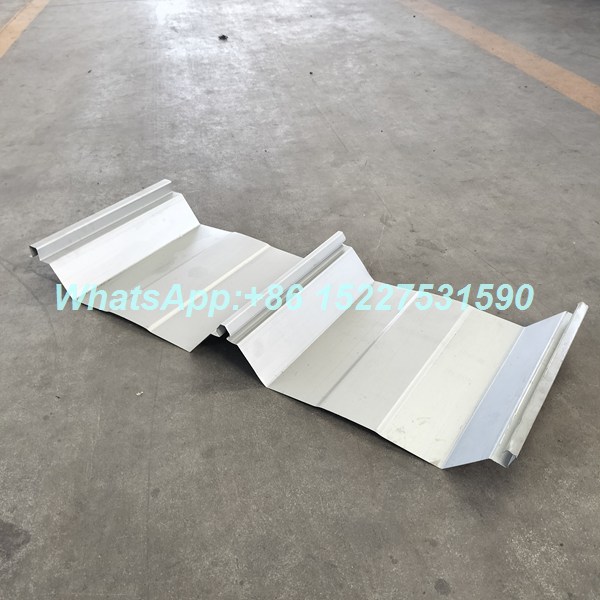

- Superior Waterproofing Capability: The 760 standing seam panel produced by this machine features a concealed clip-lock installation method (45° locking seam). This design eliminates visible screws on the roof surface, providing exceptional wind resistance and leak-proof performance, making it a preferred choice for large-span industrial plants and warehouses.
- Intelligent PLC Control System: Equipped with a high-integration PLC and touchscreen interface, the machine offers precise control over forming length, quantity, and cutting. The automated system ensures smooth operation, real-time monitoring, and easy parameter adjustments.

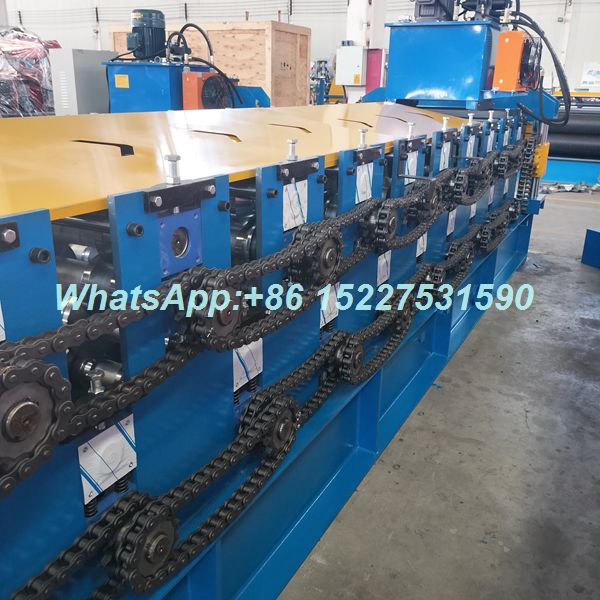

- Heavy-Duty Construction for Durability: Built with a robust H-steel frame and precision-ground rollers made from high-grade 45# steel with hard chrome plating, the machine guarantees stable performance, minimal wear, and long-term durability even under continuous high-speed production.

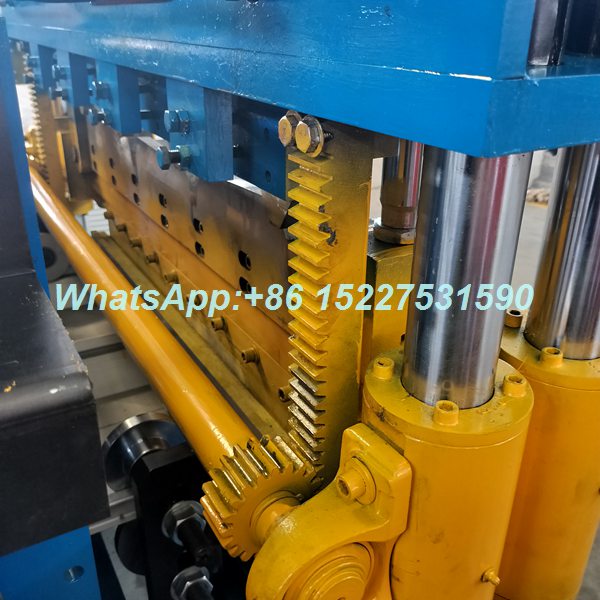

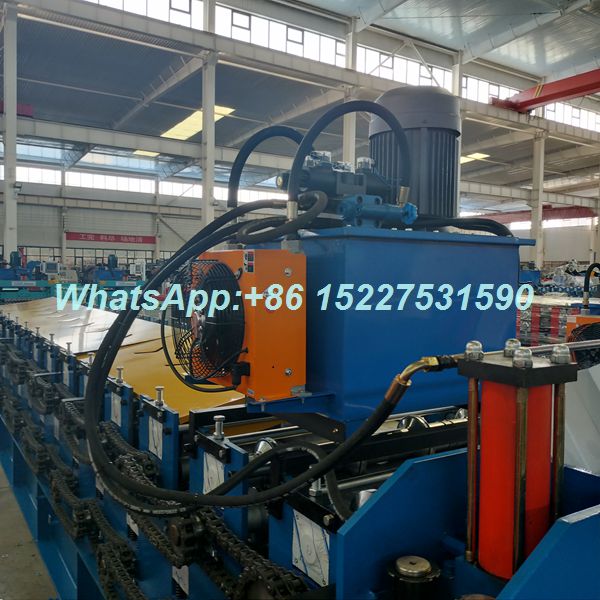

- Hydraulic Cutting & High Precision: Features a powerful hydraulic cutting system that ensures clean, burr-free cuts with a length tolerance of ±1mm. The automated feeding and cutting process significantly reduces material waste and labor costs.
Technical Specifications (Customizable)
| Applicable Material |
Color steel coil, galvanized steel coil, aluminum coil |
| Material Thickness |
0.3mm – 0.8mm |
| Forming Speed |
8 – 12 meters/minute (adjustable) |
| Main Motor Power |
5.5 KW – 7.5 KW (depending on configuration) |
| Control System |
Industrial PLC + Touch Screen / Text Display |
| Roller Material |
45# Steel with Hard Chrome Plating |
| Cutting Method |
Hydraulic Post-Cutting |
Applications
This versatile roll forming machine is widely used in the production of roofing and wall cladding for:
- Large-scale industrial factories and steel structure workshops
- Warehouses, logistics centers, and aircraft hangars
- Sports stadiums, exhibition halls, and commercial complexes
- Prefabricated houses and agricultural buildings
Why Choose Our Dual-Layer Machine?
By integrating the production of premium waterproof standing seam panels and cost-effective trapezoidal sheets, our machine offers unmatched flexibility and a faster return on investment (ROI). Whether you are fulfilling orders for high-end architectural projects or standard industrial buildings, this equipment delivers consistent quality and operational reliability.
