Product Overview

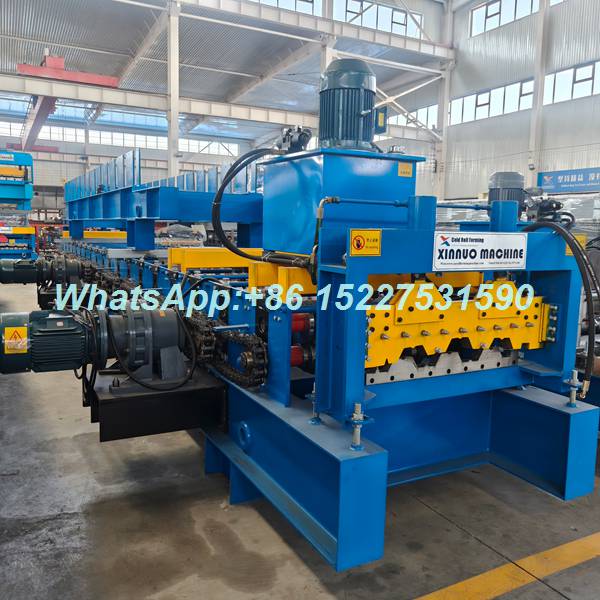

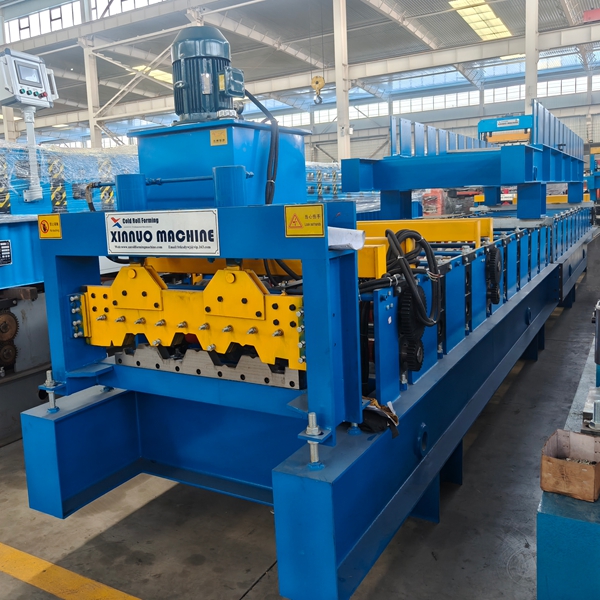

The High-Strength Steel Floor Decking Sheet Roll Forming Machine is a specialized industrial equipment designed for the continuous production of steel floor decking sheets used in modern construction. This machine integrates advanced roll forming technology, precision cutting, and automated control systems to produce high-quality floor decking sheets with consistent profiles and dimensions.
Floor decking sheets, also known as composite floor slabs or steel deck panels, are essential components in steel-structured buildings, providing temporary formwork during concrete pouring and permanent reinforcement after curing. Our roll forming machine ensures efficient, accurate, and cost-effective production, meeting international construction standards and project requirements.
Key Features
-

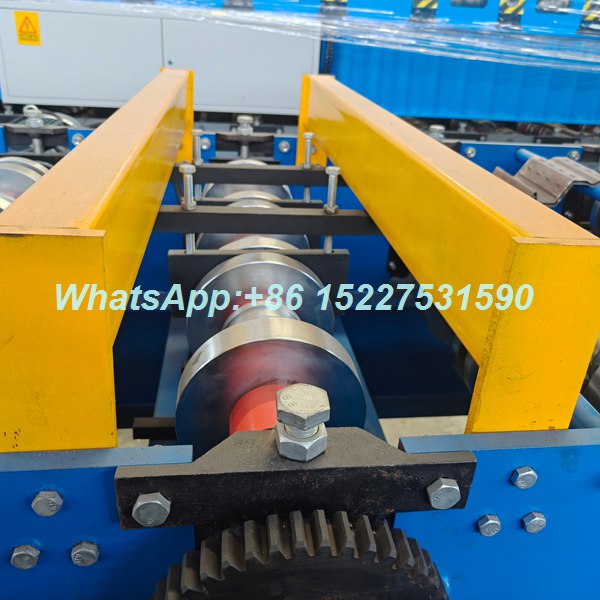

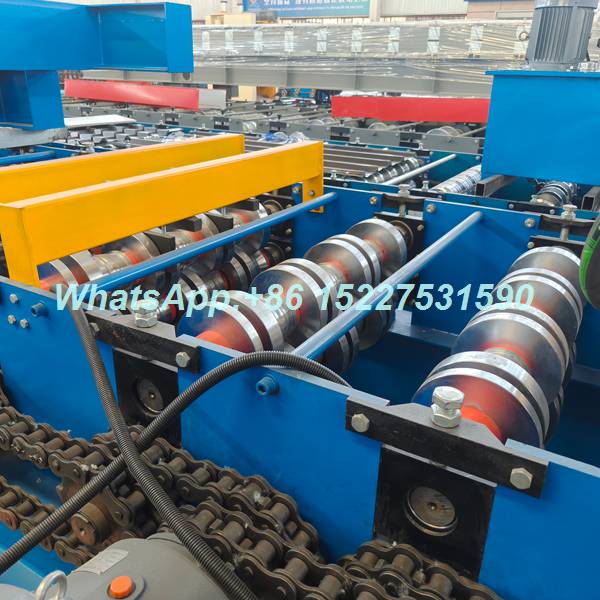

High Precision Roll Forming: The machine employs a multi-stand roll forming system with hardened alloy steel rollers to ensure precise profile shaping. The forming process is stable and reliable, producing floor decking sheets with uniform wave height, pitch, and edge quality.
-
Automated Production Line: Equipped with an automatic feeding system, the machine can continuously process steel coils into finished floor decking sheets. The PLC control system enables real-time monitoring and adjustment of production parameters, reducing manual intervention and improving production efficiency.
-
Versatile Material Compatibility: Capable of processing a wide range of materials, including galvanized steel, galvalume steel, and high-strength low-alloy steel. The machine can handle material thicknesses from 0.8mm to 1.5mm and widths up to 1250mm, meeting diverse project specifications.
-

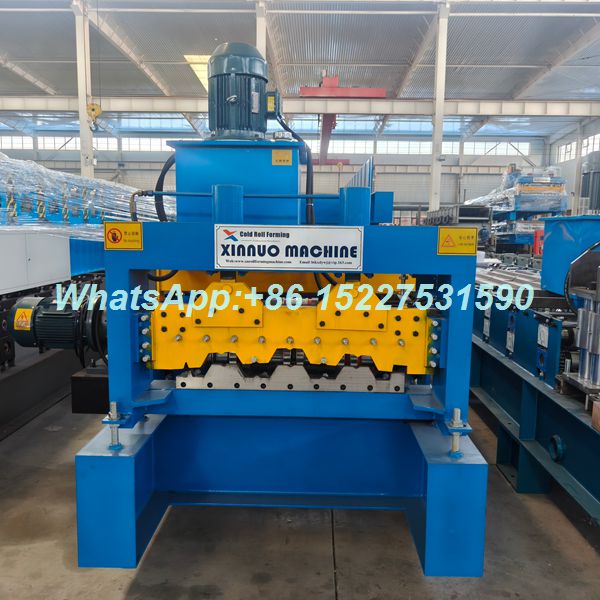

Precision Cutting System: The hydraulic cutting system ensures clean and accurate cuts, with a cutting length tolerance of ±1mm. The cutting blade is made of high-quality alloy steel, providing long service life and low maintenance costs.
-
Robust and Durable Design: The machine frame is constructed from heavy-duty steel plates, welded and stress-relieved to ensure stability and durability. Key components, such as rollers, shafts, and bearings, are precision-machined and heat-treated for enhanced wear resistance.
-
User-Friendly Operation: The machine features a user-friendly HMI (Human-Machine Interface) that allows operators to easily set and adjust production parameters. The system also includes fault diagnosis and alarm functions to ensure safe and smooth operation.
Technical Advantages
- Material Thickness: 0.8mm - 1.5mm
- Material Width: Up to 1250mm
- Forming Speed: 15 - 25 meters per minute
- Roller Material: GCr15 alloy steel, hardened and chrome-plated
- Cutting Tolerance: ±1mm
- Power Supply: 380V, 50Hz, 3-phase (customizable)
- Total Power: 15kW - 22kW (depending on configuration)
- Machine Dimensions: Customized according to production requirements
Applications
The produced floor decking sheets are widely used in:
- Commercial buildings (offices, shopping malls, hotels)
- Industrial facilities (factories, warehouses, power plants)
- Infrastructure projects (airports, railway stations, exhibition centers)
- High-rise residential buildings
