Introduction to Corner Post Roll Forming Technology
In the global construction and logistics industries, the demand for high-strength, precision-engineered structural components has never been higher. The Corner Post Roll Forming Machine is a specialized piece of equipment designed to produce the critical vertical columns used in shipping containers, prefabricated buildings, and heavy-duty storage racking systems. Unlike standard roofing sheet machines, this equipment handles thicker gauge steel and requires significant hydraulic power to achieve the complex, multi-bend profiles necessary for structural integrity. XINNUO’s latest generation of corner post formers combines robust hydraulic punching systems with precision roll forming technology to deliver components that meet international ISO and ASTM standards.
Key Features & Technical Advantages

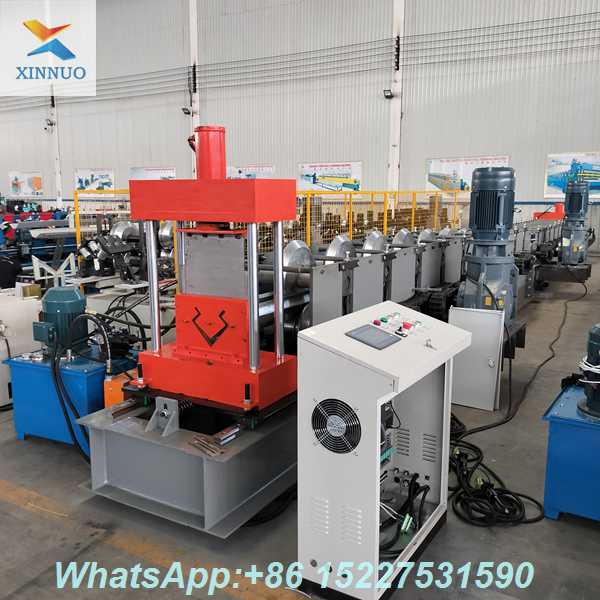

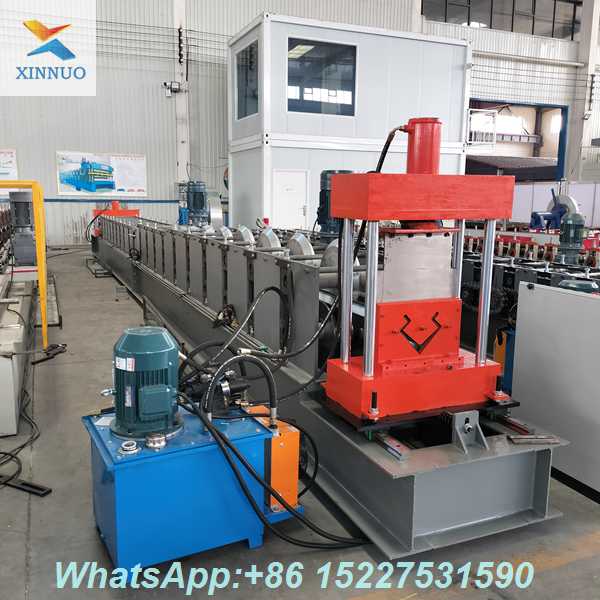

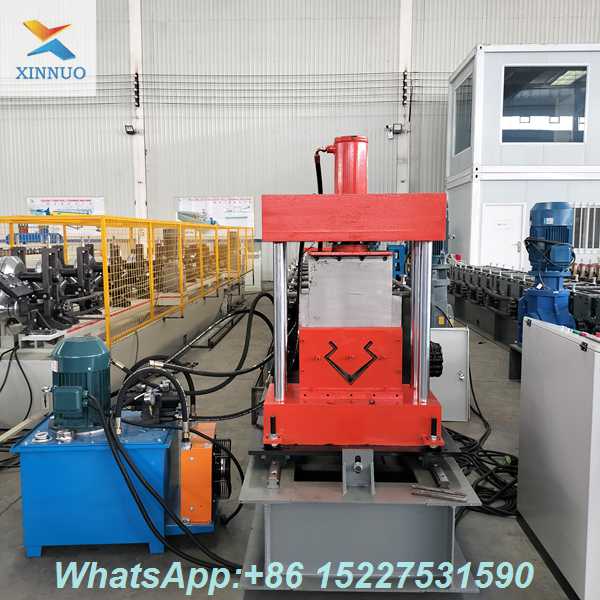

- Heavy-Duty Hydraulic Integration: As seen in the provided image, the machine features a prominent, independent hydraulic power unit (the blue tank assembly). This system drives the punching and cutting mechanisms, ensuring clean, burr-free cuts even on thick steel plates (up to 6mm). The high-pressure cylinders provide the force needed for precise hole punching, which is essential for assembling container corners or connecting structural beams.

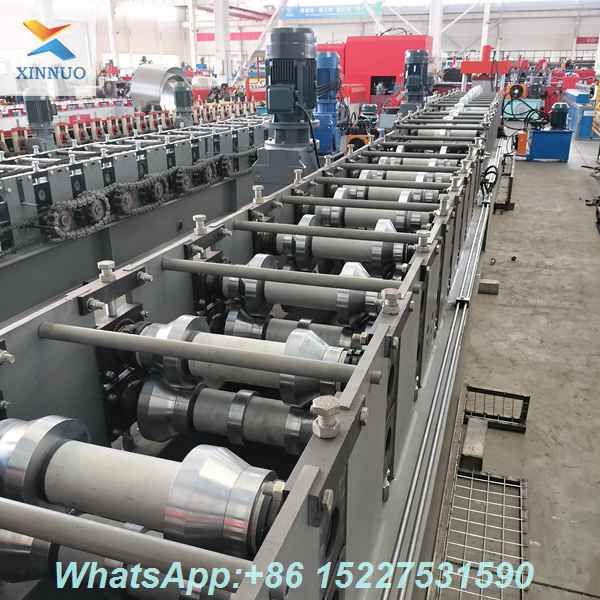

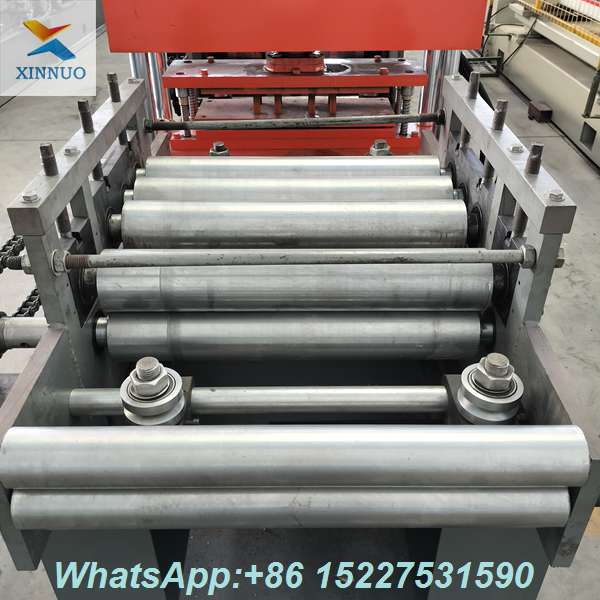

- Precision Roll Forming Station: The central forming unit (the red vertical structure) houses a series of carefully calibrated rollers. These rollers gradually bend the flat steel strip into the specific "corner post" profile. The rollers are made from high-grade Cr12Mov alloy steel, heat-treated to ensure durability and resistance to wear, guaranteeing that every meter of produced post has consistent dimensions.

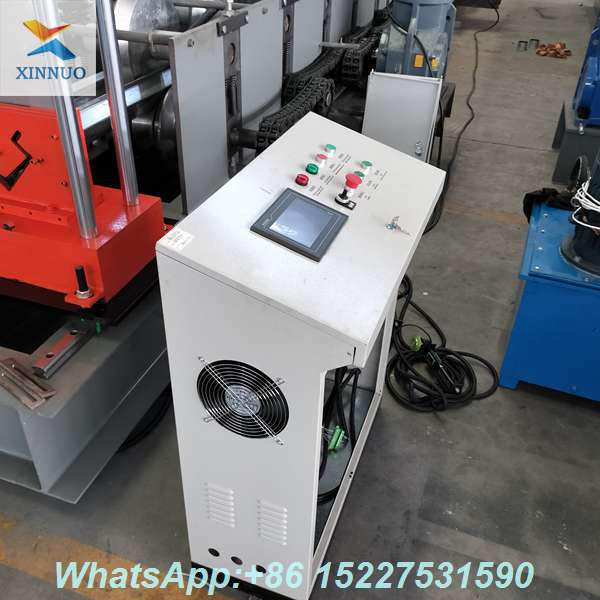

- Intelligent PLC Control System: The machine is operated via a user-friendly computer interface. Operators can input the desired length, quantity, and batch size. The system automatically counts the output and stops precisely after the final cut. This automation significantly reduces material waste and labor costs compared to manual fabrication methods.
- Versatility in Profile Design: While primarily designed for container corner posts, the roller sets can be customized to produce various C-channel, U-channel, or custom box-column profiles used in light steel villas and warehouse construction. This makes the machine a versatile investment for manufacturers serving multiple sectors of the construction industry.
Application Scenarios
The Corner Post Roll Forming Machine is indispensable for manufacturers in the following sectors:
- Shipping Container Manufacturing: Producing the eight critical corner castings/posts that give containers their stacking strength.
- Prefabricated Housing: Creating the vertical load-bearing columns for modular homes and site offices.
- Storage Solutions: Fabricating heavy-duty uprights for industrial pallet racking systems.
- Automotive Transport: Making structural supports for car carrier trailers.
Why Choose XINNUO?
At XINNUO, we understand that reliability is paramount in heavy industry. Our corner post machines are built with reinforced frames to minimize vibration during high-speed operation. We offer comprehensive pre-sales consultation to help you select the right motor power and hydraulic configuration for your specific production volume. Furthermore, our dedicated after-sales team provides remote video support and on-site installation services to ensure your production line is up and running smoothly. Investing in a XINNUO corner post former means investing in consistent quality, operational safety, and long-term profitability for your manufacturing business.
