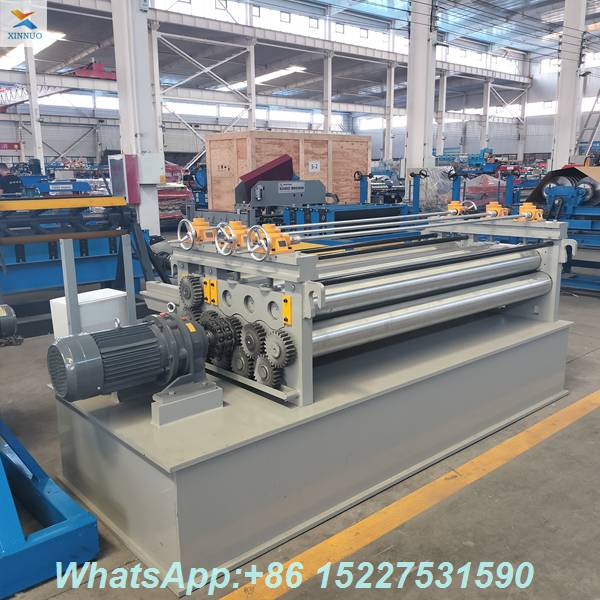

Industrial 4-High Precision Sheet Metal Leveling Machine | Heavy-Duty Plate Straightener for Roll Forming & Metal Processing

Elevate Your Metal Fabrication Precision with the XINNUO Heavy-Duty Leveling Machine

In the competitive world of metal processing and roll forming, the quality of your raw material dictates the quality of your final product. Even high-grade steel coils can suffer from internal stresses, camber, or edge waves after slitting or uncoiling. The XINNUO Industrial Sheet Metal Leveling Machine is engineered to eliminate these imperfections, ensuring your metal sheets are perfectly flat before they enter the roll forming process. Designed for heavy industrial environments, this machine is the critical link between raw material storage and high-precision manufacturing.

Unmatched Engineering for Superior Flatness

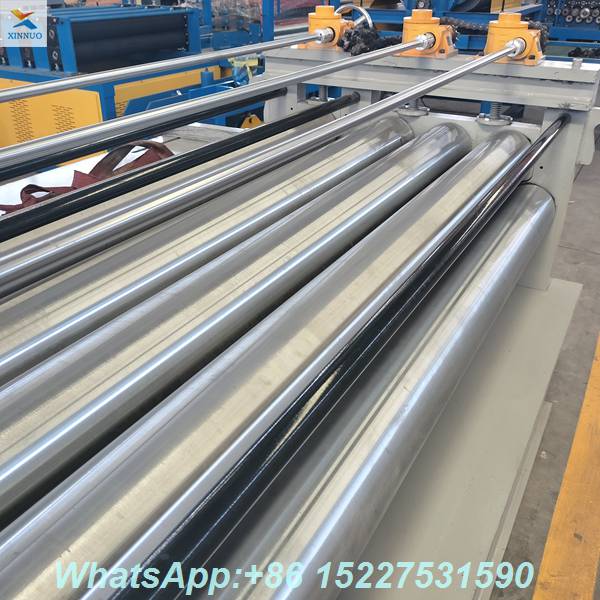

At the heart of our leveling machine lies a robust 4-high roller configuration. Unlike standard 3-roller systems, our multi-roller design applies alternating bending stresses to the metal sheet as it passes through. This process effectively yields the material, removing internal tensions and correcting shape defects such as longitudinal bowing, cross-bowing, and edge waves. The rollers are crafted from high-grade alloy steel (often GCr15 bearing steel), heat-treated to ensure exceptional hardness and wear resistance, guaranteeing a long service life even when processing high-tensile materials.

Seamless Integration with Roll Forming Lines

This leveling unit is specifically designed to integrate seamlessly into existing roll forming production lines. Whether you are manufacturing roofing sheets, wall panels, C/Z purlins, or highway guardrails, consistent material flatness is non-negotiable. An uneven sheet can lead to jamming in the forming stands, inconsistent cut lengths, and poor aesthetic finishes. By installing the XINNUO Leveler at the entry of your line, you significantly reduce downtime and scrap rates, optimizing your overall production efficiency.

Robust Drive System & Adjustable Precision

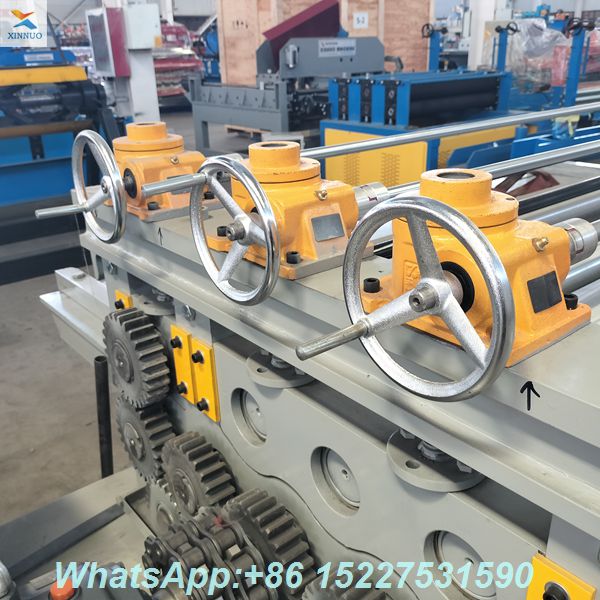

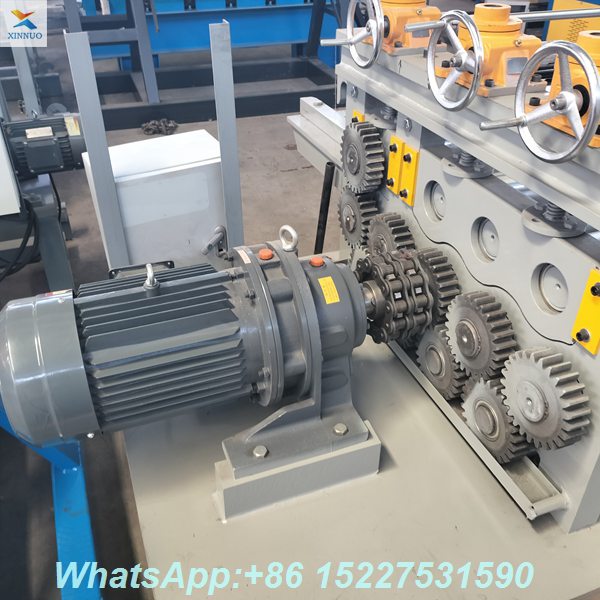

Powered by a high-torque industrial electric motor and heavy-duty gearbox, this machine ensures smooth and continuous operation under heavy loads. The transmission system utilizes precision-machined gears housed in an oil-bath enclosure to minimize noise and maximize durability. A standout feature is the manual fine-adjustment mechanism located on the top of the frame. Operators can easily adjust the gap between the upper and lower roller sets using the handwheels, allowing for precise control over the leveling pressure based on the specific thickness and yield strength of the material being processed. This versatility makes it suitable for a wide range of thicknesses, typically from 0.3mm to 3.0mm (depending on width and model).

Built for Durability in Harsh Environments

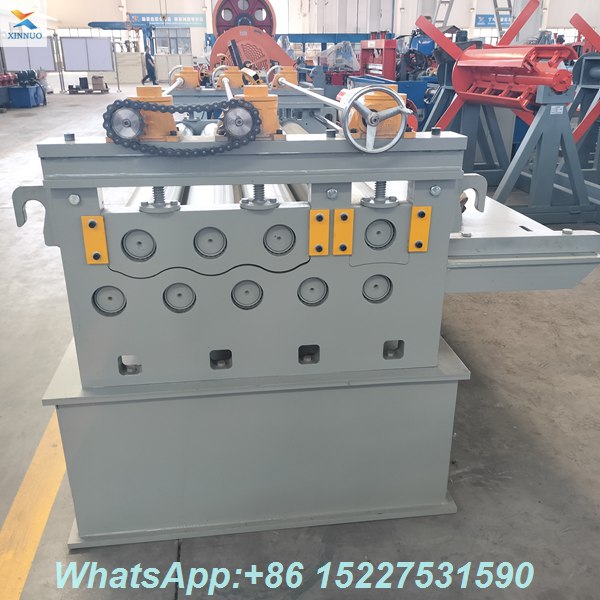

The main frame is constructed from thick welded steel plates, providing a rigid base that absorbs vibration and maintains alignment during high-speed operation. The entire unit is mounted on a sturdy base, ready for anchor bolting to your factory floor. We understand the demands of the global market; therefore, our machines are built to withstand 24/7 operation in demanding metalworking facilities.

Why Choose XINNUO?

As a specialized manufacturer in the roll forming industry, XINNUO doesn't just sell machines; we provide solutions. Our leveling machines undergo strict quality control testing before shipment. We offer comprehensive technical support, including installation guidance and operational training, to ensure you get the most out of your investment.

Technical Specifications (Customizable):

Effective Width: 1000mm - 1500mm (Customizable)

Roller Diameter: Upper/Lower Ø70mm - Ø90mm (High Precision)

Motor Power: 4KW - 7.5KW (Depending on configuration)

Leveling Speed: Matched with production line speed (typically 10-20m/min)

Control Mode: Manual adjustment / Optional Motorized adjustment

Transform your raw material quality today. Contact our sales team via WhatsApp or email to request a quote or discuss your specific production line requirements. Let XINNUO help you achieve the perfect flatness for superior metal products.
