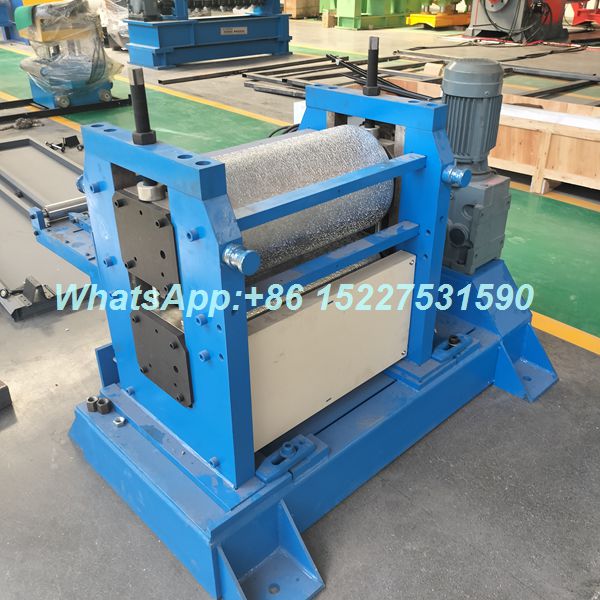

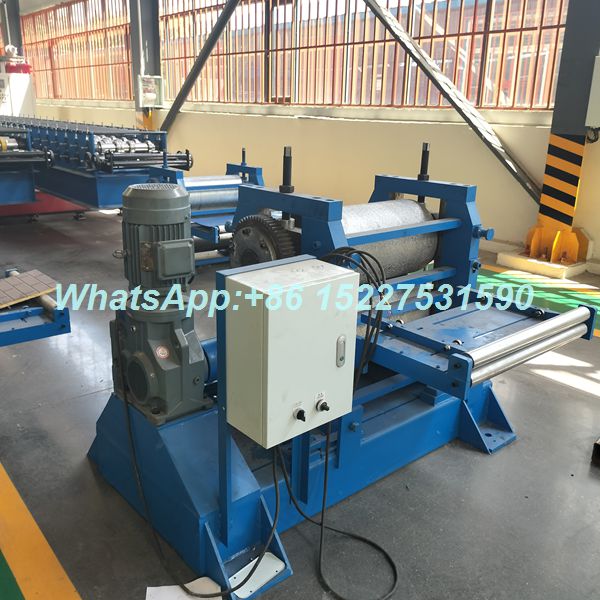

Product Overview
The Metal Embossing Roll Forming Machine is a premium cold roll forming equipment engineered for manufacturing high-end architectural cladding and insulated sandwich panels. This advanced metal embossing press integrates precision embossing rollers to create stunning 3D relief patterns—such as classic brick, rustic wood grain, and mosaic textures—on the surface of metal coils. Widely utilized in exterior wall renovations, light steel villas, and commercial buildings, this automatic color steel tile press delivers superior thermal insulation, fire resistance, and aesthetic appeal. It serves as an ideal export solution for international construction material manufacturers aiming to produce eco-friendly metal decorative boards.
Core Features & Technical Advantages

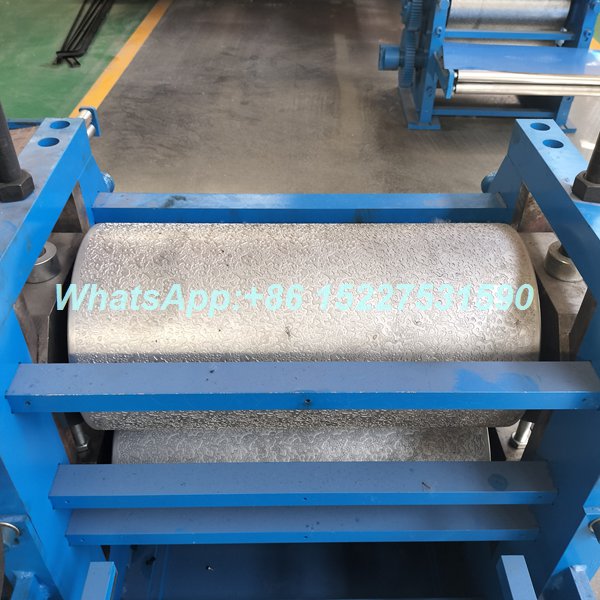

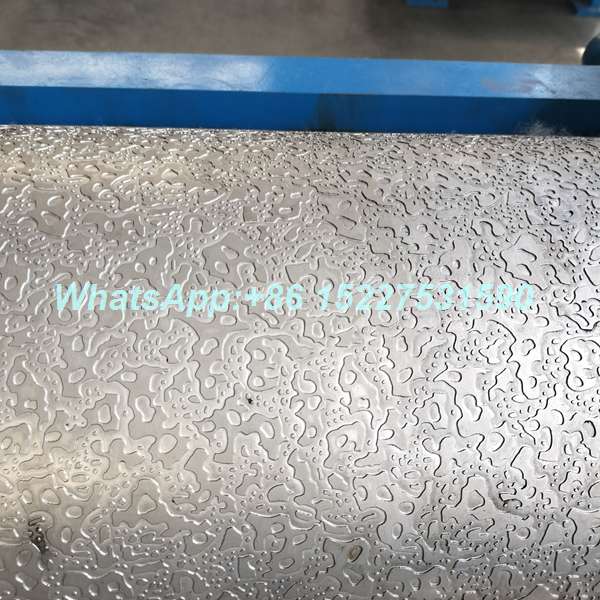

- High-Precision Embossing System: Features upper and lower matched embossing rollers with a depth of 2.0-2.5mm, creating vivid 3D reliefs. The rollers are made of high-grade forged steel with hard chrome plating, ensuring long-lasting pattern clarity and wear resistance.
- Seamless Integration with Laminating Lines: Designed to work flawlessly with polyurethane (PU) foam continuous production lines. The embossed panels maintain excellent flatness, ensuring smooth feeding into subsequent roll forming and foaming stations without deformation.

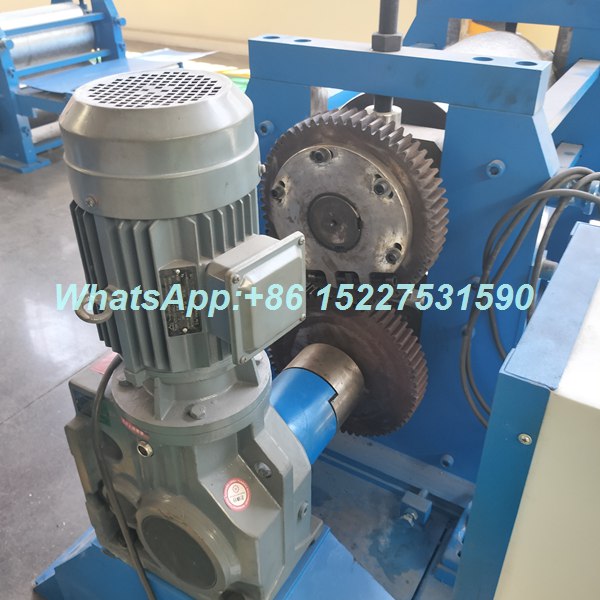

- Intelligent PLC Automation: Controlled by a top-tier PLC system with a multi-language touchscreen HMI. It allows precise adjustment of embossing pressure (via screw or gear reducer) and synchronizes perfectly with the cutting and laminating systems.
- Versatile Material Processing: Capable of processing prepainted galvanized steel, aluminum-zinc coated coils, and aluminum foil within a thickness range of 0.2mm - 0.6mm, adapting to various global building standards.
- Robust Heavy-Duty Frame: The main chassis is constructed from thick welded steel plates, stress-relieved to prevent long-term deformation during high-speed continuous production.
Technical Specifications
| Machine Model |
Metal Embossing Roll Forming Machine |
| Raw Material |
Prepainted galvanized steel coil, aluminum-zinc coil |
| Material Thickness |
0.2mm - 0.6mm |
| Embossing Speed |
0-16 m/min (adjustable via frequency converter) |
| Main Motor Power |
4.0 kW |
| Embossing Roller Diameter |
Φ320mm - Φ350mm |
| Available Patterns |
Brick, Wood Grain, Mosaic, Stone Texture (Customizable) |
| Overall Dimensions |
Customized based on production line layout |
