Product Overview

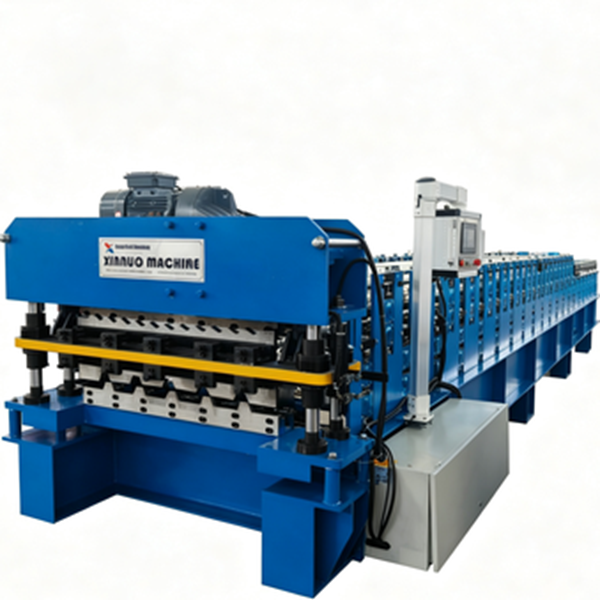

This 686+762 double layer roll forming machine with electric shear is a high-efficiency dual-profile production line engineered to manufacture two types of metal roof panels in one compact workflow. It eliminates the need for hydraulic oil stations, using a motor-driven electric shear system for faster, cleaner cuts. Built with heavy-duty components and PLC automatic control, it delivers consistent forming quality for PPGI, GI, and aluminum sheets, reducing operational costs and maximizing space efficiency for roofing manufacturers.
Key Features
✅

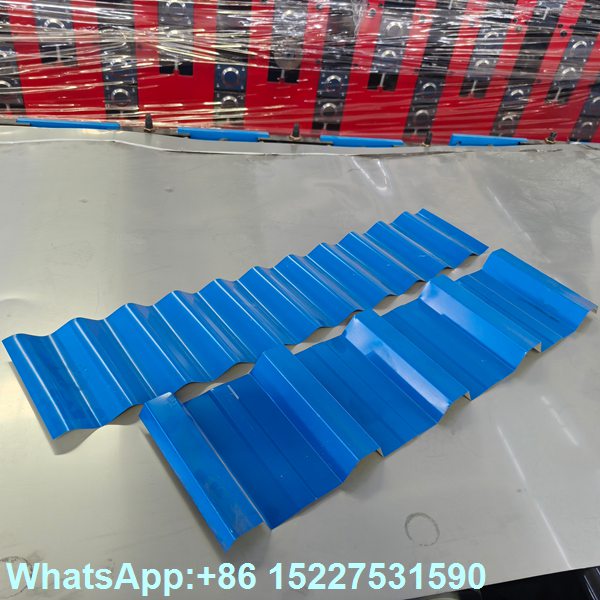

Dual-Profile Production: Produces 686mm trapezoidal panels and 762mm corrugated sheets on one machine, adapting to diverse roofing and wall cladding needs.
✅

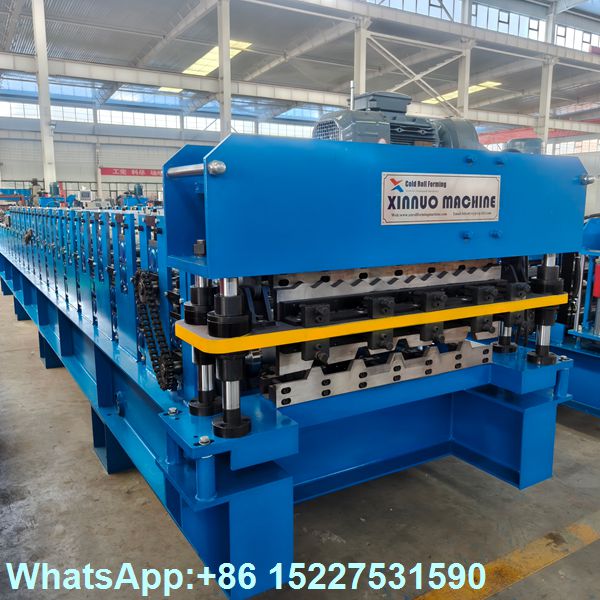

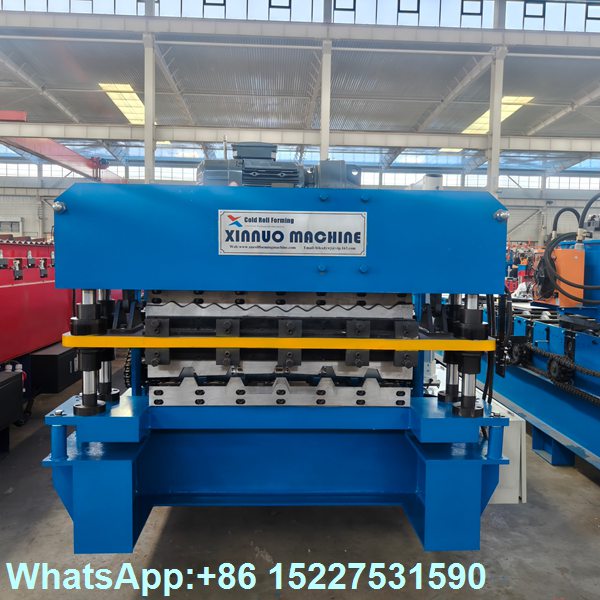

Electric Shear System: Motor-driven electric shear cuts sheets in just 1–2 seconds, delivering burr-free, clean cuts without hydraulic oil leakage or complex maintenance.
✅

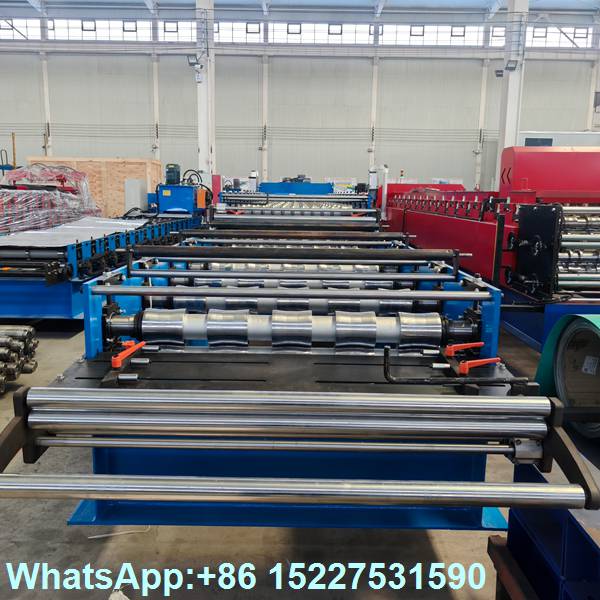

Heavy-Duty Construction: Precision-machined roller stations with hardened gears ensure long-lasting performance and uniform panel profiles.
✅
PLC Automatic Control: User-friendly touchscreen interface supports automatic length counting, error diagnosis, and one-click operation, minimizing manual labor.
✅
Compact & Cost-Effective: Saves factory space, reduces equipment investment, and lowers long-term maintenance costs compared to two separate single-layer machines.
Applications
Ideal for manufacturing metal roof and wall panels in:
- Residential and commercial building projects
- Industrial warehouses, workshops, and factories
- Prefabricated housing and temporary construction sites
- Agricultural buildings and poultry farms
Why Choose Hebei Xinnuo?
Factory Direct Supply: Owns a 100,000㎡ production base with 4 workshops, ensuring strict quality control and on-time delivery.
Customization Support: Offers tailored profiles, sizes, and control systems to meet your specific market requirements.
Comprehensive After-Sales: 12-month warranty, lifetime technical support, and overseas installation guidance are provided.
Certified Quality: ISO 9001 and CE compliant, with factory inspection videos and test reports available upon request.
