Overview

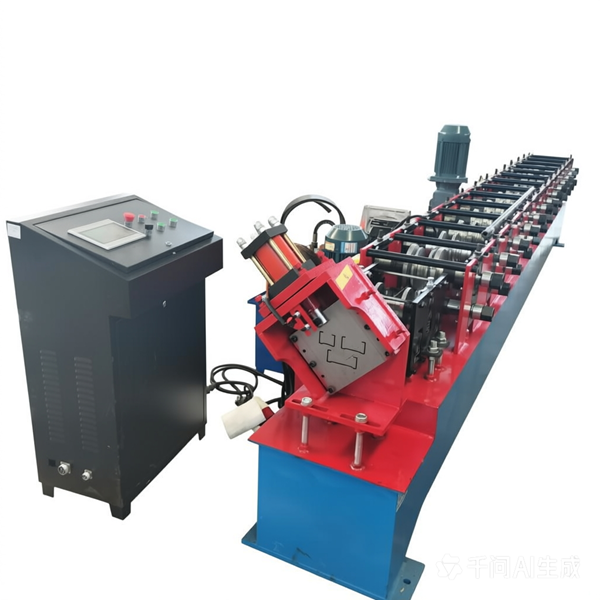

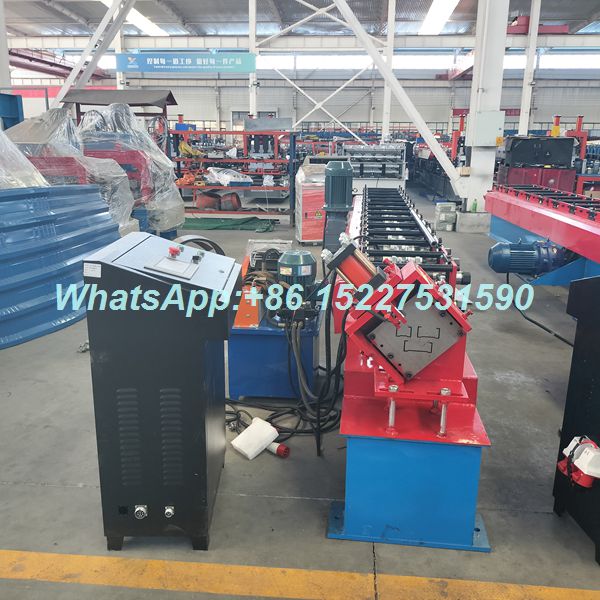

The 48-70-90 CU Light Steel Keel Roll Forming Machine is a specialized solution designed for the efficient manufacturing of metal studs and tracks used in drywall partition systems. As a critical component in modern construction, this light gauge steel machinery transforms coiled steel strips into precise C-shaped studs and U-shaped tracks. Our equipment is engineered to meet the rigorous demands of the building materials industry, offering a reliable alternative to traditional fabrication methods. Whether you are producing standard partition walls or complex ceiling structures, this cold roll forming machine delivers consistent quality and high output speeds.
Technical Superiority & Performance
At the core of this metal stud former is a sophisticated rolling system designed for accuracy. The machine utilizes high-grade Cr12Mov alloy rollers that have been heat-treated and precision-ground to ensure the formed profiles maintain strict dimensional tolerances. This precision is vital for the drywall stud track maker, as it ensures that the studs fit perfectly into the tracks during on-site installation.

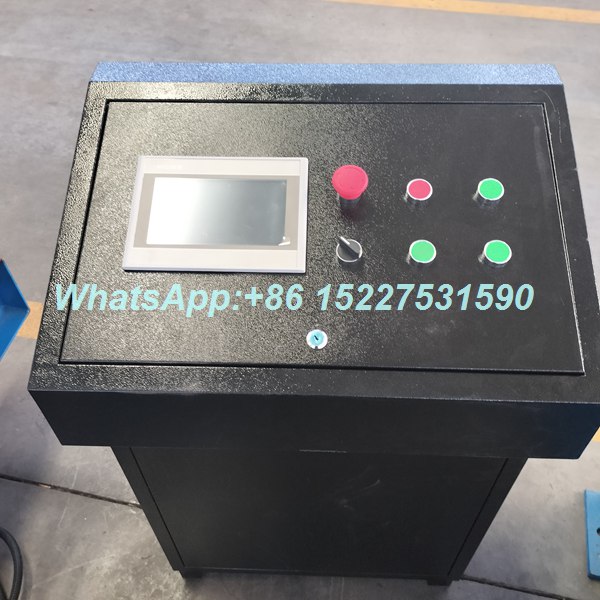

The automatic keel production line integrates a smart PLC control system (often featuring brands like Delta or Siemens) that allows operators to set specific lengths and quantities. Once the parameters are input, the machine automatically handles the feeding, forming, measuring, and cutting processes. This automation significantly reduces labor costs and minimizes material waste, making it a highly cost-effective building material machinery investment.
Key Components Breakdown
- Decoiler & Feeding Guide: Ensures the steel coil enters the forming station smoothly without scratching the surface.

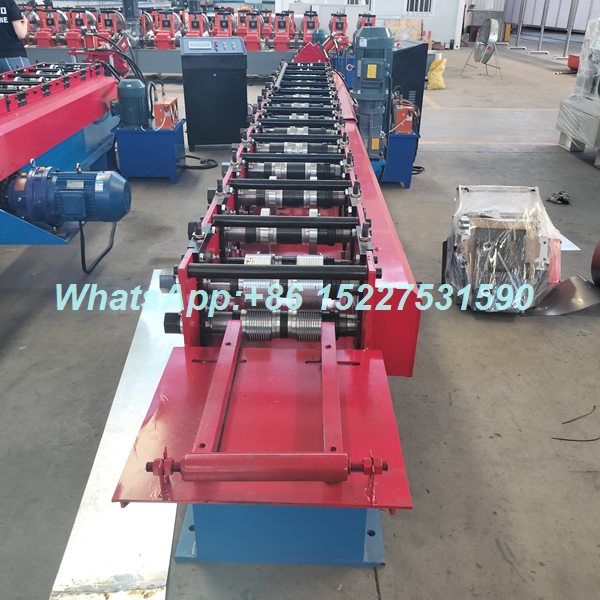

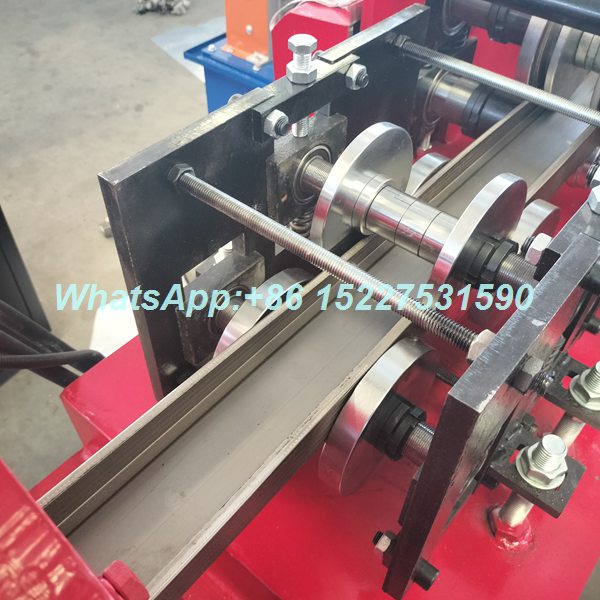

- Roll Forming Station: A series of progressive stands that gradually shape the flat metal strip into the desired C or U profile.

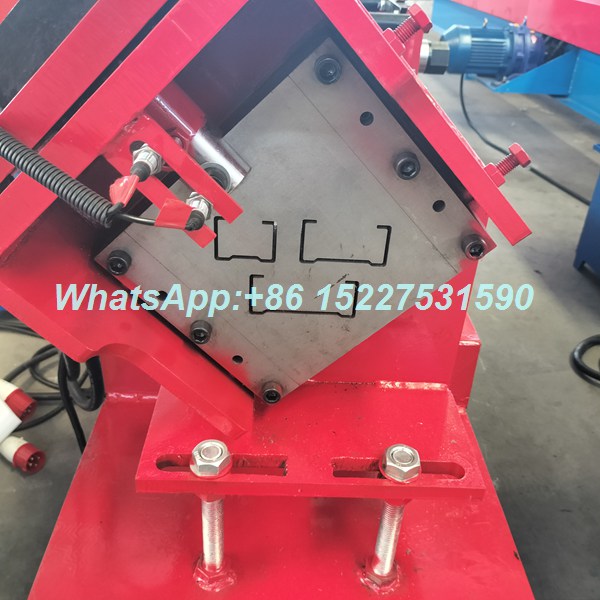

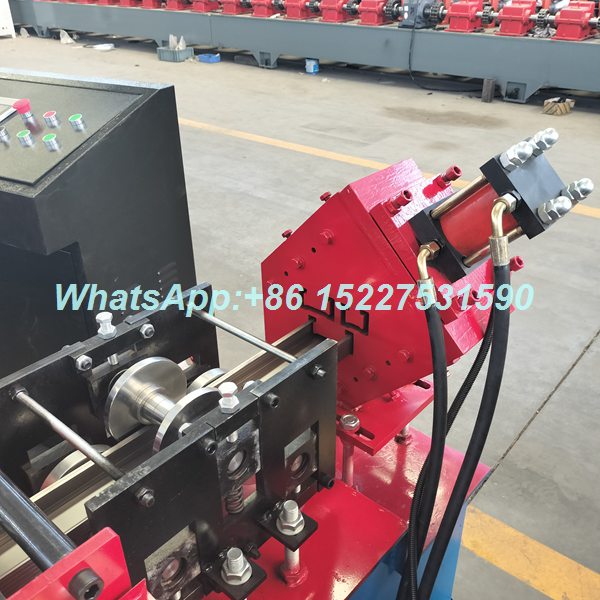

- Hydraulic Cutting System: Unlike mechanical cutters, our hydraulic system provides a cleaner cut with less noise and maintenance, essential for a high-quality partition wall framing equipment.
- Run-out Table: Supports the finished products as they exit the machine, preventing deformation of the lightweight steel profiles.
Application Scope
This gypsum board frame machine is widely used in the production of:
- Interior partition walls for residential and commercial buildings.
- Suspended ceiling frameworks.
- External wall cladding support structures.
By choosing our light steel keel machine, manufacturers can upgrade their production capabilities, ensuring they stay competitive in the fast-paced construction supply market. The machine's ability to handle various thicknesses (typically 0.4mm - 0.8mm) makes it adaptable to different project specifications, solidifying its status as a versatile asset in any factory.
